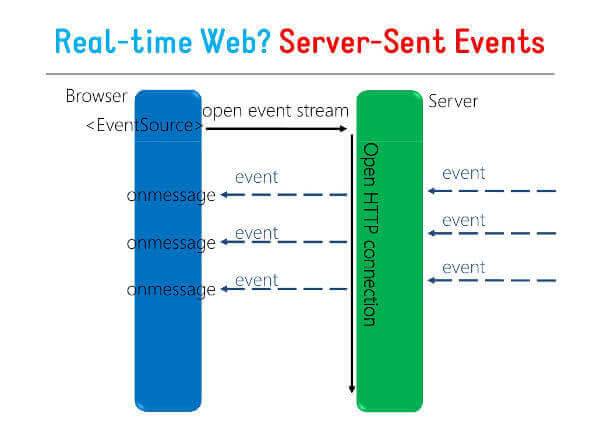

Content-Type: text/event-stream
Cache-Control: no-cache
Connection: keep-alive

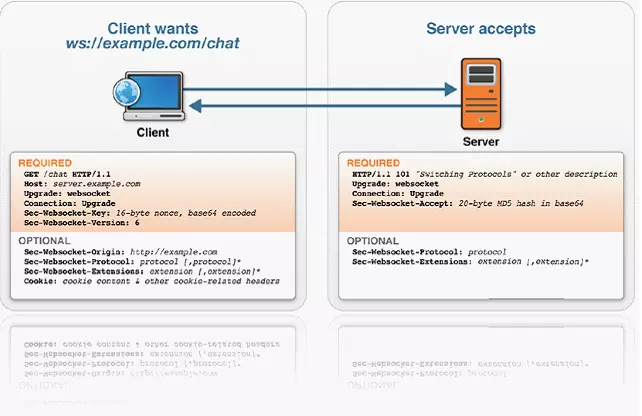

GET wss://threes.halfrost.com/sockjs/689/8x5nnke6/websocket HTTP/1.1
// 请求的方法必须是GET，HTTP版本必须至少是1.1
Host: threes.halfrost.com
Connection: Upgrade
Pragma: no-cache
Cache-Control: no-cache
Upgrade: websocket
// 请求升级到 WebSocket 协议
Origin: https://threes.halfrost.com
Sec-WebSocket-Version: 13
// 客户端使用的 WebSocket 协议版本
User-Agent: Mozilla/5.0 (Linux; Android 6.0; Nexus 5 Build/MRA58N) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/66.0.3359.181 Mobile Safari/537.36
Accept-Encoding: gzip, deflate, br
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8
Cookie: _ga=GA1.2.00000006.14111111496; _gid=GA1.2.23232376.14343448247; Hm_lvt_d60c126319=1524898423,1525574369,1526206975,1526784803; Hm_lpvt_d606319=1526784803; _gat_53806_2=1
Sec-WebSocket-Key: wZgx0uTOgNUsHGpdWc0T+w==
// 自动生成的键，以验证服务器对协议的支持，其值必须是 nonce 组成的随机选择的 16 字节的被 base64 编码后的值
Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits
// 可选的客户端支持的协议扩展列表，指示了客户端希望使用的协议级别的扩展

Connection: Upgrade
Upgrade: websocket

Sec-WebSocket-Version: 13
Sec-WebSocket-Key: wZgx0uTOgNUsHGpdWc0T+w==
Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits

+--------+-----------------------------------------+----------+

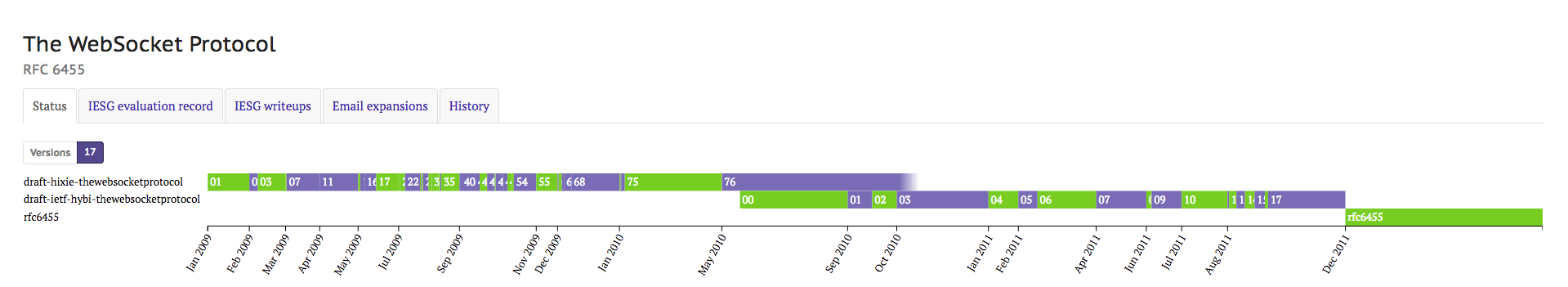

|Version |                Reference                |  Status  |
| Number |                                         |          |
+--------+-----------------------------------------+----------+
| 0      + draft-ietf-hybi-thewebsocketprotocol-00 | Interim  |
+--------+-----------------------------------------+----------+
| 1      + draft-ietf-hybi-thewebsocketprotocol-01 | Interim  |
+--------+-----------------------------------------+----------+
| 2      + draft-ietf-hybi-thewebsocketprotocol-02 | Interim  |
+--------+-----------------------------------------+----------+
| 3      + draft-ietf-hybi-thewebsocketprotocol-03 | Interim  |
+--------+-----------------------------------------+----------+
| 4      + draft-ietf-hybi-thewebsocketprotocol-04 | Interim  |
+--------+-----------------------------------------+----------+
| 5      + draft-ietf-hybi-thewebsocketprotocol-05 | Interim  |
+--------+-----------------------------------------+----------+
| 6      + draft-ietf-hybi-thewebsocketprotocol-06 | Interim  |
+--------+-----------------------------------------+----------+
| 7      + draft-ietf-hybi-thewebsocketprotocol-07 | Interim  |
+--------+-----------------------------------------+----------+
| 8      + draft-ietf-hybi-thewebsocketprotocol-08 | Interim  |
+--------+-----------------------------------------+----------+
| 9      +                Reserved                 |          |
+--------+-----------------------------------------+----------+
| 10     +                Reserved                 |          |
+--------+-----------------------------------------+----------+
| 11     +                Reserved                 |          |
+--------+-----------------------------------------+----------+
| 12     +                Reserved                 |          |
+--------+-----------------------------------------+----------+
| 13     +                RFC 6455                 | Standard |
+--------+-----------------------------------------+----------+

HTTP/1.1 101 Switching Protocols
// 101 HTTP 响应码确认升级到 WebSocket 协议
Server: nginx/1.12.1
Date: Sun, 20 May 2018 09:06:28 GMT
Connection: upgrade
Upgrade: websocket
Sec-WebSocket-Accept: 375guuMrnCICpulKbj7+JGkOhok=
// 签名的键值验证协议支持
Sec-WebSocket-Extensions: permessage-deflate
// 服务器选择的WebSocket 扩展

Sec-WebSocket-Accept: 375guuMrnCICpulKbj7+JGkOhok=
// 签名的键值验证协议支持
Sec-WebSocket-Extensions: permessage-deflate
// 服务器选择的 WebSocket 扩展

> toBase64(sha1( Sec-WebSocket-Key + 258EAFA5-E914-47DA-95CA-C5AB0DC85B11 ))

WebSocket WebSocket(
in DOMString url,
// 表示要连接的URL。这个URL应该为响应WebSocket的地址。
in optional DOMString protocols
// 可以是一个单个的协议名字字符串或者包含多个协议名字字符串的数组。默认设为一个空字符串。
);

var ws = new WebSocket('wss://example.com/socket', ['appProtocol', 'appProtocol-v2']);
ws.onopen = function () {
if (ws.protocol == 'appProtocol-v2') {
    ...
    } else {
    ...
    }
}

GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
...
Sec-WebSocket-Version: 25

HTTP/1.1 400 Bad Request
...
Sec-WebSocket-Version: 13, 8, 7

GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
...
Sec-WebSocket-Version: 13

0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-------+-+-------------+-------------------------------+
 |F|R|R|R| opcode|M| Payload len |    Extended payload length    |
 |I|S|S|S|  (4)  |A|     (7)     |             (16/64)           |
 |N|V|V|V|       |S|             |   (if payload len==126/127)   |
 | |1|2|3|       |K|             |                               |
 +-+-+-+-+-------+-+-------------+ - - - - - - - - - - - - - - - +
 |     Extended payload length continued, if payload len == 127  |
 + - - - - - - - - - - - - - - - +-------------------------------+
 |                               |Masking-key, if MASK set to 1  |
 +-------------------------------+-------------------------------+
 | Masking-key (continued)       |          Payload Data         |
 +-------------------------------- - - - - - - - - - - - - - - - +
 :                     Payload Data continued ...                :
 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +
 |                     Payload Data continued ...                |
 +---------------------------------------------------------------+

j = i MOD 4
transformed-octet-i = original-octet-i XOR masking-key-octet-j

var ws = new WebSocket('wss://example.com/socket');
ws.onerror = function (error) { ... }
ws.onclose = function () { ... }
ws.onopen = function () {
ws.send("Connection established. Hello server!");
}
ws.onmessage = function(msg) {
    if(msg.data instanceof Blob) {
           processBlob(msg.data);
      } else {
       processText(msg.data);
   }
}

if (ws.bufferedAmount == 0)
    ws.send(evt.data);

var ws = new WebSocket('wss://example.com/socket');
ws.binaryType = "arraybuffer";

//初始化socket并且连接
- (void)connectServer:(NSString *)server port:(NSString *)port
{
    NSURLRequest *request = [NSURLRequest requestWithURL:[NSURL URLWithString:[NSString stringWithFormat:@"ws://%@:%@",server,port]]];
    _socket = [[SRWebSocket alloc] initWithURLRequest:request];
    _socket.delegate = self;
    [_socket open];
}
- (void)webSocket:(SRWebSocket *)webSocket didReceiveMessage:(id)message
{
}
- (void)webSocketDidOpen:(SRWebSocket *)webSocket
{
}
- (void)webSocket:(SRWebSocket *)webSocket didFailWithError:(NSError *)error
{
}
- (void)webSocket:(SRWebSocket *)webSocket didCloseWithCode:(NSInteger)code reason:(NSString *)reason wasClean:(BOOL)wasClean
{
}

//初始化
- (void)_SR_commonInit;
{
    //得到url schem小写
    NSString *scheme = _url.scheme.lowercaseString;
        //如果不是这几种，则断言错误
    assert([scheme isEqualToString:@"ws"] || [scheme isEqualToString:@"http"] || [scheme isEqualToString:@"wss"] || [scheme isEqualToString:@"https"]);
    _readyState = SR_CONNECTING;
    _webSocketVersion = 13;
     //初始化工作的队列，串行
    _workQueue = dispatch_queue_create(NULL, DISPATCH_QUEUE_SERIAL);
    //给队列设置一个标识,标识为指向自己的，上下文对象为这个队列
    dispatch_queue_set_specific(_workQueue, (__bridge void *)self, maybe_bridge(_workQueue), NULL);
    //设置代理queue为主队列
    _delegateDispatchQueue = dispatch_get_main_queue();
    //retain主队列？
    sr_dispatch_retain(_delegateDispatchQueue);
    //读Buffer
    _readBuffer = [[NSMutableData alloc] init];
    //输出Buffer
    _outputBuffer = [[NSMutableData alloc] init];
    //当前数据帧
    _currentFrameData = [[NSMutableData alloc] init];
    //消费者数据帧的对象
    _consumers = [[NSMutableArray alloc] init];
    _consumerPool = [[SRIOConsumerPool alloc] init];
    //注册的runloop
    _scheduledRunloops = [[NSMutableSet alloc] init];
    ....省略了一部分代码
}

//初始化流
- (void)_initializeStreams;
{
    //断言 port值小于UINT32_MAX
    assert(_url.port.unsignedIntValue <= UINT32_MAX);
    //拿到端口
    uint32_t port = _url.port.unsignedIntValue;
    //如果端口号为0，给个默认值，http 80 https 443;
    if (port == 0) {
        if (!_secure) {
            port = 80;
        } else {
            port = 443;
        }
    }
    NSString *host = _url.host;
    CFReadStreamRef readStream = NULL;
    CFWriteStreamRef writeStream = NULL;
    //用host创建读写stream,Host和port就绑定在一起了
    CFStreamCreatePairWithSocketToHost(NULL, (__bridge CFStringRef)host, port, &readStream, &writeStream);
    //绑定生命周期给ARC  _outputStream = __bridge transfer
    _outputStream = CFBridgingRelease(writeStream);
    _inputStream = CFBridgingRelease(readStream);
    //代理设为自己
    _inputStream.delegate = self;
    _outputStream.delegate = self;
}

//开始连接
- (void)open;
{
    assert(_url);
    //如果状态是正在连接，直接断言出错
    NSAssert(_readyState == SR_CONNECTING, @"Cannot call -(void)open on SRWebSocket more than once");
    //自己持有自己
    _selfRetain = self;
    //判断超时时长
    if (_urlRequest.timeoutInterval > 0)
    {
        dispatch_time_t popTime = dispatch_time(DISPATCH_TIME_NOW, _urlRequest.timeoutInterval * NSEC_PER_SEC);
        //在超时时间执行
        dispatch_after(popTime, dispatch_get_main_queue(), ^(void){
            //如果还在连接，报错
            if (self.readyState == SR_CONNECTING)
                [self _failWithError:[NSError errorWithDomain:@"com.squareup.SocketRocket" code:504 userInfo:@{NSLocalizedDescriptionKey: @"Timeout Connecting to Server"}]];
        });
    }
    //开始建立连接
    [self openConnection];
}

//开始连接
- (void)openConnection;
{
    //更新安全、流配置
    [self _updateSecureStreamOptions];
    //判断有没有runloop
    if (!_scheduledRunloops.count) {
        //SR_networkRunLoop会创建一个带runloop的常驻线程，模式为NSDefaultRunLoopMode。
        [self scheduleInRunLoop:[NSRunLoop SR_networkRunLoop] forMode:NSDefaultRunLoopMode];
    }
    //开启输入输出流
    [_outputStream open];
    [_inputStream open];
}
- (void)scheduleInRunLoop:(NSRunLoop *)aRunLoop forMode:(NSString *)mode;
{
    [_outputStream scheduleInRunLoop:aRunLoop forMode:mode];
    [_inputStream scheduleInRunLoop:aRunLoop forMode:mode];
    //添加到集合里，数组
    [_scheduledRunloops addObject:@[aRunLoop, mode]];
}

dispatch_queue_t _workQueue;

+ (NSRunLoop *)SR_networkRunLoop {
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        networkThread = [[_SRRunLoopThread alloc] init];
        networkThread.name = @"com.squareup.SocketRocket.NetworkThread";
        [networkThread start];
        //阻塞方式拿到当前runloop
        networkRunLoop = networkThread.runLoop;
    });
    return networkRunLoop;
}

//开启流后，收到事件回调
- (void)stream:(NSStream *)aStream handleEvent:(NSStreamEvent)eventCode;
{
    __weak typeof(self) weakSelf = self;
    // 如果是ssl,而且_pinnedCertFound 为NO，而且事件类型是有可读数据未读，或者事件类型是还有空余空间可写
    if (_secure && !_pinnedCertFound && (eventCode == NSStreamEventHasBytesAvailable || eventCode == NSStreamEventHasSpaceAvailable)) {
           //省略SSL的一些处理....
            //如果为NO，则验证失败，报错关闭
            if (!_pinnedCertFound) {
                  //关闭连接
                dispatch_async(_workQueue, ^{
                    NSDictionary *userInfo = @{ NSLocalizedDescriptionKey : @"Invalid server cert" };
                    [weakSelf _failWithError:[NSError errorWithDomain:@"org.lolrus.SocketRocket" code:23556 userInfo:userInfo]];
                });
                return;
            } else if (aStream == _outputStream) {
                //如果流是输出流，则打开流成功
                dispatch_async(_workQueue, ^{
                    [self didConnect];
                });
            }
        }
    }
    dispatch_async(_workQueue, ^{
        [weakSelf safeHandleEvent:eventCode stream:aStream];
    });
}

//流打开成功后的操作，开始发送http请求建立连接
- (void)didConnect;
{
    SRFastLog(@"Connected");
    //创建一个http request  url
    CFHTTPMessageRef request = CFHTTPMessageCreateRequest(NULL, CFSTR("GET"), (__bridge CFURLRef)_url, kCFHTTPVersion1_1);
    // Set host first so it defaults
    //设置head, host:  url+port
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Host"), (__bridge CFStringRef)(_url.port ? [NSString stringWithFormat:@"%@:%@", _url.host, _url.port] : _url.host));
    //密钥数据（生成对称密钥）
    NSMutableData *keyBytes = [[NSMutableData alloc] initWithLength:16];
    //生成随机密钥
    SecRandomCopyBytes(kSecRandomDefault, keyBytes.length, keyBytes.mutableBytes);
    //根据版本用base64转码
    if ([keyBytes respondsToSelector:@selector(base64EncodedStringWithOptions:)]) {
        _secKey = [keyBytes base64EncodedStringWithOptions:0];
    } else {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
        _secKey = [keyBytes base64Encoding];
#pragma clang diagnostic pop
    }
    //断言编码后长度为24
    assert([_secKey length] == 24);
    // Apply cookies if any have been provided
    //提供cookies
    NSDictionary * cookies = [NSHTTPCookie requestHeaderFieldsWithCookies:[self requestCookies]];
    for (NSString * cookieKey in cookies) {
        //拿到cookie值
        NSString * cookieValue = [cookies objectForKey:cookieKey];
        if ([cookieKey length] && [cookieValue length]) {
            //设置到request的 head里
            CFHTTPMessageSetHeaderFieldValue(request, (__bridge CFStringRef)cookieKey, (__bridge CFStringRef)cookieValue);
        }
    }
    // set header for http basic auth
    //设置http的基础auth,用户名密码认证
    if (_url.user.length && _url.password.length) {
        NSData *userAndPassword = [[NSString stringWithFormat:@"%@:%@", _url.user, _url.password] dataUsingEncoding:NSUTF8StringEncoding];
        NSString *userAndPasswordBase64Encoded;
        if ([keyBytes respondsToSelector:@selector(base64EncodedStringWithOptions:)]) {
            userAndPasswordBase64Encoded = [userAndPassword base64EncodedStringWithOptions:0];
        } else {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
            userAndPasswordBase64Encoded = [userAndPassword base64Encoding];
#pragma clang diagnostic pop
        }
        //编码后用户名密码
        _basicAuthorizationString = [NSString stringWithFormat:@"Basic %@", userAndPasswordBase64Encoded];
        //设置head Authorization
        CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Authorization"), (__bridge CFStringRef)_basicAuthorizationString);
    }
    //web socket规范head
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Upgrade"), CFSTR("websocket"));
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Connection"), CFSTR("Upgrade"));
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Sec-WebSocket-Key"), (__bridge CFStringRef)_secKey);
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Sec-WebSocket-Version"), (__bridge CFStringRef)[NSString stringWithFormat:@"%ld", (long)_webSocketVersion]);
    //设置request的原始 Url
    CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Origin"), (__bridge CFStringRef)_url.SR_origin);
    //用户初始化的协议数组，可以约束websocket的一些行为
    if (_requestedProtocols) {
        CFHTTPMessageSetHeaderFieldValue(request, CFSTR("Sec-WebSocket-Protocol"), (__bridge CFStringRef)[_requestedProtocols componentsJoinedByString:@", "]);
    }
    //吧 _urlRequest中原有的head 设置到request中去
    [_urlRequest.allHTTPHeaderFields enumerateKeysAndObjectsUsingBlock:^(id key, id obj, BOOL *stop) {
        CFHTTPMessageSetHeaderFieldValue(request, (__bridge CFStringRef)key, (__bridge CFStringRef)obj);
    }];
    //返回一个序列化 , CFBridgingRelease和 __bridge transfer一个意思， CFHTTPMessageCopySerializedMessage copy一份新的并且序列化，返回CFDataRef
    NSData *message = CFBridgingRelease(CFHTTPMessageCopySerializedMessage(request));
    //释放request
    CFRelease(request);
    //把这个request当成data去写
    [self _writeData:message];
    //读取http的头部
    [self _readHTTPHeader];
}

//检查握手信息
- (BOOL)_checkHandshake:(CFHTTPMessageRef)httpMessage;
{
    //是否是允许的header
    NSString *acceptHeader = CFBridgingRelease(CFHTTPMessageCopyHeaderFieldValue(httpMessage, CFSTR("Sec-WebSocket-Accept")));
    //为空则被服务器拒绝
    if (acceptHeader == nil) {
        return NO;
    }
    //得到
    NSString *concattedString = [_secKey stringByAppendingString:SRWebSocketAppendToSecKeyString];
    //期待accept的字符串
    NSString *expectedAccept = [concattedString stringBySHA1ThenBase64Encoding];
    //判断是否相同，相同就握手信息对了
    return [acceptHeader isEqualToString:expectedAccept];
}

static NSString *const SRWebSocketAppendToSecKeyString = @"258EAFA5-E914-47DA-95CA-C5AB0DC85B11";

//读取http头部
- (void)_readHTTPHeader;
{
    if (_receivedHTTPHeaders == NULL) {
        //序列化的http消息
        _receivedHTTPHeaders = CFHTTPMessageCreateEmpty(NULL, NO);
    }
    //不停的add consumer去读数据
    [self _readUntilHeaderCompleteWithCallback:^(SRWebSocket *self,  NSData *data) {
        //拼接数据，拼到头部
        CFHTTPMessageAppendBytes(_receivedHTTPHeaders, (const UInt8 *)data.bytes, data.length);
        //判断是否接受完
        if (CFHTTPMessageIsHeaderComplete(_receivedHTTPHeaders)) {
            SRFastLog(@"Finished reading headers %@", CFBridgingRelease(CFHTTPMessageCopyAllHeaderFields(_receivedHTTPHeaders)));
            [self _HTTPHeadersDidFinish];
        } else {
            //没读完递归调
            [self _readHTTPHeader];
        }
    }];
}

//读取CRLFCRLFBytes,直到回调回来
- (void)_readUntilHeaderCompleteWithCallback:(data_callback)dataHandler;
{
    [self _readUntilBytes:CRLFCRLFBytes length:sizeof(CRLFCRLFBytes) callback:dataHandler];
}
//读取数据 CRLFCRLFBytes，边界符
- (void)_readUntilBytes:(const void *)bytes length:(size_t)length callback:(data_callback)dataHandler;
{
    // TODO optimize so this can continue from where we last searched
    //消费者需要消费的数据大小
    stream_scanner consumer = ^size_t(NSData *data) {
        __block size_t found_size = 0;
        __block size_t match_count = 0;
        //得到数据长度
        size_t size = data.length;
        //得到数据指针
        const unsigned char *buffer = data.bytes;
        for (size_t i = 0; i < size; i++ ) {
            //匹配字符
            if (((const unsigned char *)buffer)[i] == ((const unsigned char *)bytes)[match_count]) {
                //匹配数+1
                match_count += 1;
                //如果匹配了
                if (match_count == length) {
                    //读取数据长度等于 i+ 1
                    found_size = i + 1;
                    break;
                }
            } else {
                match_count = 0;
            }
        }
        //返回要读取数据的长度，没匹配成功就是0
        return found_size;
    };
    [self _addConsumerWithScanner:consumer callback:dataHandler];
}

case NSStreamEventHasBytesAvailable: {
    SRFastLog(@"NSStreamEventHasBytesAvailable %@", aStream);
    const int bufferSize = 2048;
    uint8_t buffer[bufferSize];
    //如果有可读字节
    while (_inputStream.hasBytesAvailable) {
        //读取数据，一次读2048
        NSInteger bytes_read = [_inputStream read:buffer maxLength:bufferSize];
        if (bytes_read > 0) {
            //拼接数据
            [_readBuffer appendBytes:buffer length:bytes_read];
        } else if (bytes_read < 0) {
            //读取错误
            [self _failWithError:_inputStream.streamError];
        }
        //如果读取的不等于最大的，说明读完了，跳出循环
        if (bytes_read != bufferSize) {
            break;
        }
    };
    //开始扫描，看消费者什么时候消费数据
    [self _pumpScanner];
    break;
}

//指定数据读取
- (void)_addConsumerWithScanner:(stream_scanner)consumer callback:(data_callback)callback;
{
    [self assertOnWorkQueue];
    [self _addConsumerWithScanner:consumer callback:callback dataLength:0];
}
//添加消费者，用一个指定的长度，是否读到当前帧
- (void)_addConsumerWithDataLength:(size_t)dataLength callback:(data_callback)callback readToCurrentFrame:(BOOL)readToCurrentFrame unmaskBytes:(BOOL)unmaskBytes;
{
    [self assertOnWorkQueue];
    assert(dataLength);
    //添加到消费者队列去
    [_consumers addObject:[_consumerPool consumerWithScanner:nil handler:callback bytesNeeded:dataLength readToCurrentFrame:readToCurrentFrame unmaskBytes:unmaskBytes]];
    [self _pumpScanner];
}
- (void)_addConsumerWithScanner:(stream_scanner)consumer callback:(data_callback)callback dataLength:(size_t)dataLength;
{
    [self assertOnWorkQueue];
    [_consumers addObject:[_consumerPool consumerWithScanner:consumer handler:callback bytesNeeded:dataLength readToCurrentFrame:NO unmaskBytes:NO]];
    [self _pumpScanner];
}

//开始扫描
-(void)_pumpScanner;
{
    [self assertOnWorkQueue];
    //判断是否在扫描
    if (!_isPumping) {
        _isPumping = YES;
    } else {
        return;
    }
    //只有为NO能走到这里，开始循环检测，可读可写数据
    while ([self _innerPumpScanner]) {
    }
    _isPumping = NO;
}

- (BOOL)_innerPumpScanner
{
    ...
}

//读取新的消息帧
- (void)_readFrameNew;
{
    dispatch_async(_workQueue, ^{
        //清空上一帧的
        [_currentFrameData setLength:0];
        _currentFrameOpcode = 0;
        _currentFrameCount = 0;
        _readOpCount = 0;
        _currentStringScanPosition = 0;
        //继续读取
        [self _readFrameContinue];
    });
}

0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-------+-+-------------+-------------------------------+
 |F|R|R|R| opcode|M| Payload len |    Extended payload length    |
 |I|S|S|S|  (4)  |A|     (7)     |             (16/64)           |
 |N|V|V|V|       |S|             |   (if payload len==126/127)   |
 | |1|2|3|       |K|             |                               |
 +-+-+-+-+-------+-+-------------+ - - - - - - - - - - - - - - - +
 |     Extended payload length continued, if payload len == 127  |
 + - - - - - - - - - - - - - - - +-------------------------------+
 |                               |Masking-key, if MASK set to 1  |
 +-------------------------------+-------------------------------+
 | Masking-key (continued)       |          Payload Data         |
 +-------------------------------- - - - - - - - - - - - - - - - +
 :                     Payload Data continued ...                :
 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +
 |                     Payload Data continued ...                |
 +---------------------------------------------------------------+

//开始读取当前消息帧
- (void)_readFrameContinue;
{
    //断言要么都为空，要么都有值
    assert((_currentFrameCount == 0 && _currentFrameOpcode == 0) || (_currentFrameCount > 0 && _currentFrameOpcode > 0));
    //添加一个consumer，数据长度为2字节 frame_header 2个字节
    [self _addConsumerWithDataLength:2 callback:^(SRWebSocket *self, NSData *data) {
        //
        __block frame_header header = {0};
        const uint8_t *headerBuffer = data.bytes;
        assert(data.length >= 2);
        //判断第一帧 FIN
        if (headerBuffer[0] & SRRsvMask) {
            [self _closeWithProtocolError:@"Server used RSV bits"];
            return;
        }
        //得到Qpcode
        uint8_t receivedOpcode = (SROpCodeMask & headerBuffer[0]);
        //判断帧类型，是否是指定的控制帧
        BOOL isControlFrame = (receivedOpcode == SROpCodePing || receivedOpcode == SROpCodePong || receivedOpcode == SROpCodeConnectionClose);
        //如果不是指定帧，而且receivedOpcode不等于0，而且_currentFrameCount消息帧大于0，错误关闭
        if (!isControlFrame && receivedOpcode != 0 && self->_currentFrameCount > 0) {
            [self _closeWithProtocolError:@"all data frames after the initial data frame must have opcode 0"];
            return;
        }
        // 没消息
        if (receivedOpcode == 0 && self->_currentFrameCount == 0) {
            [self _closeWithProtocolError:@"cannot continue a message"];
            return;
        }
        //正常读取
        //得到opcode
        header.opcode = receivedOpcode == 0 ? self->_currentFrameOpcode : receivedOpcode;
        //得到fin
        header.fin = !!(SRFinMask & headerBuffer[0]);
        //得到Mask
        header.masked = !!(SRMaskMask & headerBuffer[1]);
        //得到数据长度
        header.payload_length = SRPayloadLenMask & headerBuffer[1];
        headerBuffer = NULL;
        //如果是带掩码的，则报错，因为客户端是无法得知掩码的值得。
        if (header.masked) {
            [self _closeWithProtocolError:@"Client must receive unmasked data"];
        }
        size_t extra_bytes_needed = header.masked ? sizeof(_currentReadMaskKey) : 0;
        //得到长度
        if (header.payload_length == 126) {
            extra_bytes_needed += sizeof(uint16_t);
        } else if (header.payload_length == 127) {
            extra_bytes_needed += sizeof(uint64_t);
        }
        //如果多余的需要的bytes为0
        if (extra_bytes_needed == 0) {
            //
            [self _handleFrameHeader:header curData:self->_currentFrameData];
        } else {
            //读取payload
            [self _addConsumerWithDataLength:extra_bytes_needed callback:^(SRWebSocket *self, NSData *data) {
                size_t mapped_size = data.length;
                #pragma unused (mapped_size)
                const void *mapped_buffer = data.bytes;
                size_t offset = 0;
                if (header.payload_length == 126) {
                    assert(mapped_size >= sizeof(uint16_t));
                    uint16_t newLen = EndianU16_BtoN(*(uint16_t *)(mapped_buffer));
                    header.payload_length = newLen;
                    offset += sizeof(uint16_t);
                } else if (header.payload_length == 127) {
                    assert(mapped_size >= sizeof(uint64_t));
                    header.payload_length = EndianU64_BtoN(*(uint64_t *)(mapped_buffer));
                    offset += sizeof(uint64_t);
                } else {
                    assert(header.payload_length < 126 && header.payload_length >= 0);
                }
                if (header.masked) {
                    assert(mapped_size >= sizeof(_currentReadMaskOffset) + offset);
                    memcpy(self->_currentReadMaskKey, ((uint8_t *)mapped_buffer) + offset, sizeof(self->_currentReadMaskKey));
                }
                //把已读到的数据，和header传出去
                [self _handleFrameHeader:header curData:self->_currentFrameData];
            } readToCurrentFrame:NO unmaskBytes:NO];
        }
    } readToCurrentFrame:NO unmaskBytes:NO];
}

0                   1
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6
 +-+-+-+-+-------+-+-------------+
 |F|R|R|R| opcode|M| Payload len |
 |I|S|S|S|  (4)  |A|     (7)     |
 |N|V|V|V|       |S|             |
 | |1|2|3|       |K|             |
 +-+-+-+-+-------+-+-------------+

[self _addConsumerWithDataLength:extra_bytes_needed callback:^(SRWebSocket *self, NSData *data) {
    ...
}];

- (void)_handleFrameHeader:(frame_header)frame_header curData:(NSData *)curData;
{
    ...
    if(complete)
    {
    [self _handleFrameWithData:_currentFrameData opCode:frame_header.opcode];
    }else{
       [self _readFrameContinue];
    }
    ...
}

[self _performDelegateBlock:^{
    [self.delegate webSocket:self didReceiveMessage:message];
}];

[self _readFrameNew];

//写数据
- (void)_writeData:(NSData *)data;
{
    //断言当前queue
    [self assertOnWorkQueue];
    //如果标记为写完成关闭，则直接返回
    if (_closeWhenFinishedWriting) {
            return;
    }
    //输出buffer拼接数据
    [_outputBuffer appendData:data];
    //开始写
    [self _pumpWriting];
}



- (void)_pumpWriting
{
    ...
    //写入进去，就会直接发送给对方了！这一步send
    NSInteger bytesWritten = [_outputStream write:_outputBuffer.bytes + _outputBufferOffset maxLength:dataLength - _outputBufferOffset];
    ...
}
