// TODO(steveanton): Perhaps this should be managed by the RtpTransceiver.
#pc/peer_connection.cc

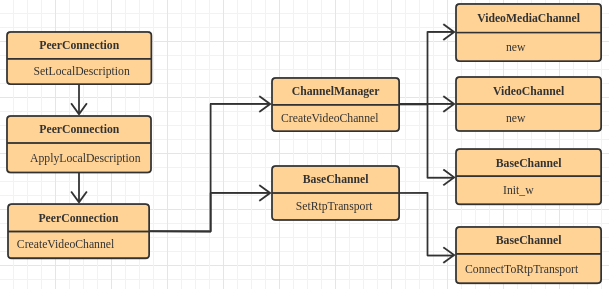

cricket::VideoChannel* PeerConnection::CreateVideoChannel(
    const std::string& mid) {
  RtpTransportInternal* rtp_transport = GetRtpTransport(mid);
  MediaTransportConfig media_transport_config =
      transport_controller_->GetMediaTransportConfig(mid);
  cricket::VideoChannel* video_channel = channel_manager()->CreateVideoChannel(
      call_ptr_, configuration_.media_config, rtp_transport,
      media_transport_config, signaling_thread(), mid, SrtpRequired(),
      GetCryptoOptions(), &ssrc_generator_, video_options_,
      video_bitrate_allocator_factory_.get());
  if (!video_channel) {
    return nullptr;
  }
  video_channel->SignalDtlsSrtpSetupFailure.connect(
      this, &PeerConnection::OnDtlsSrtpSetupFailure);
  video_channel->SignalSentPacket.connect(this,
                                          &PeerConnection::OnSentPacket_w);
  video_channel->SetRtpTransport(rtp_transport);
  return video_channel;
}

#pc/channel.cc

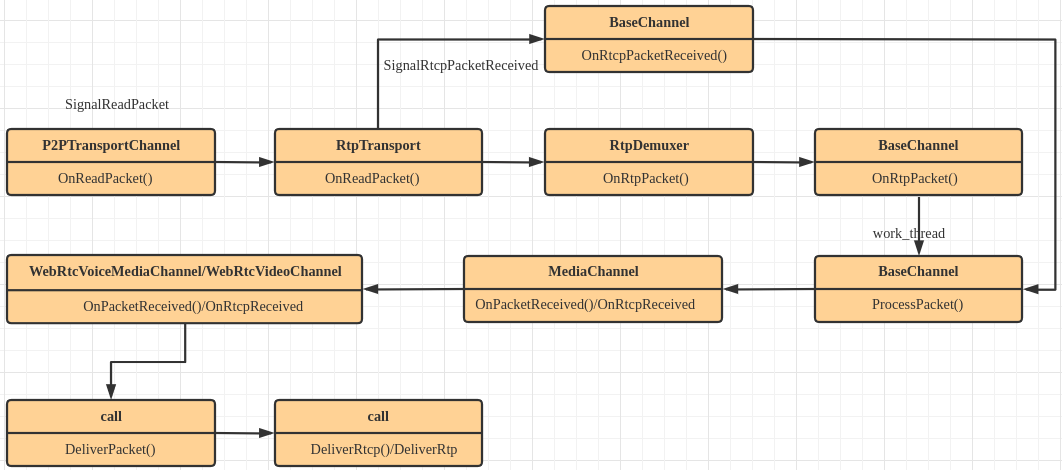

bool BaseChannel::ConnectToRtpTransport() {
  RTC_DCHECK(rtp_transport_);
  if (!RegisterRtpDemuxerSink()) {
    return false;
  }
  rtp_transport_->SignalReadyToSend.connect(
      this, &BaseChannel::OnTransportReadyToSend);
  rtp_transport_->SignalRtcpPacketReceived.connect(
      this, &BaseChannel::OnRtcpPacketReceived);
  // TODO(bugs.webrtc.org/9719): Media transport should also be used to provide
  // 'writable' state here.
  rtp_transport_->SignalWritableState.connect(this,
                                              &BaseChannel::OnWritableState);
  rtp_transport_->SignalSentPacket.connect(this,
                                            &BaseChannel::SignalSentPacket_n);
  return true;
}

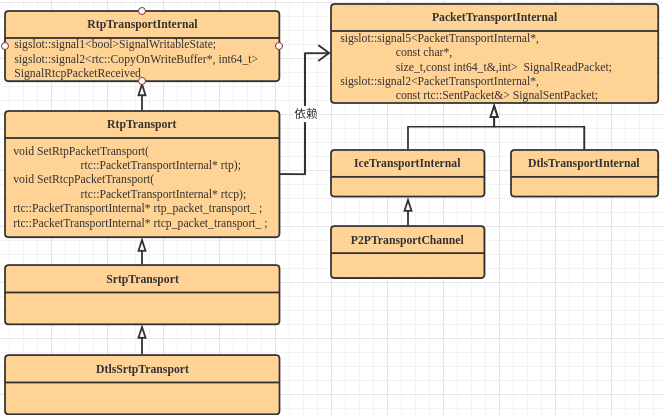

#pc/rtp_transport_internal.h
class RtpTransportInternal : public sigslot::has_slots<> {
  public:
  virtual ~RtpTransportInternal() = default;
  // Called whenever a transport's ready-to-send state changes. The argument
  // is true if all used transports are ready to send. This is more specific
  // than just "writable"; it means the last send didn't return ENOTCONN.
  sigslot::signal1<bool> SignalReadyToSend;
  // Called whenever an RTCP packet is received. There is no equivalent signal
  // for RTP packets because they would be forwarded to the BaseChannel through
  // the RtpDemuxer callback.
  sigslot::signal2<rtc::CopyOnWriteBuffer*, int64_t> SignalRtcpPacketReceived;
  // Called whenever a transport's writable state might change. The argument is
  // true if the transport is writable, otherwise it is false.
  sigslot::signal1<bool> SignalWritableState;
  sigslot::signal1<const rtc::SentPacket&> SignalSentPacket;
  virtual bool RegisterRtpDemuxerSink(const RtpDemuxerCriteria& criteria,
                                      RtpPacketSinkInterface* sink) = 0;
  virtual bool UnregisterRtpDemuxerSink(RtpPacketSinkInterface* sink) = 0;
}

// This class represents a receiver of already parsed RTP packets.
#call/rtp_packet_sink_interface.h
class RtpPacketSinkInterface {
  public:
  virtual ~RtpPacketSinkInterface() = default;
  virtual void OnRtpPacket(const RtpPacketReceived& packet) = 0;
};

#pc/channel.cc
class BaseChannel : public sigslot::has_slots<>,
                    public webrtc::RtpPacketSinkInterface{
  // RtpPacketSinkInterface overrides.
  void OnRtpPacket(const webrtc::RtpPacketReceived& packet) override;
};

#pc/channel.cc
bool BaseChannel::RegisterRtpDemuxerSink() {
  RTC_DCHECK(rtp_transport_);
  return network_thread_->Invoke<bool>(RTC_FROM_HERE, [this] {
    return rtp_transport_->RegisterRtpDemuxerSink(demuxer_criteria_, this);
  });
}

#pc/rtp_transport.h
bool RtpTransport::RegisterRtpDemuxerSink(const RtpDemuxerCriteria& criteria,
                                          RtpPacketSinkInterface* sink) {
  rtp_demuxer_.RemoveSink(sink);
  if (!rtp_demuxer_.AddSink(criteria, sink)) {
    RTC_LOG(LS_ERROR) << "Failed to register the sink for RTP demuxer.";
    return false;
  }
  return true;
}

#modules/rtp_rtcp/source/rtp_rtcp_impl.cc
// Returns the number of milliseconds until the module want a worker thread
// to call Process.
int64_t ModuleRtpRtcpImpl::TimeUntilNextProcess() {
  return std::max<int64_t>(0,
                            next_process_time_ - clock_->TimeInMilliseconds());
}

#modules/rtp_rtcp/source/rtp_rtcp_impl.cc
// Process any pending tasks such as timeouts (non time critical events).

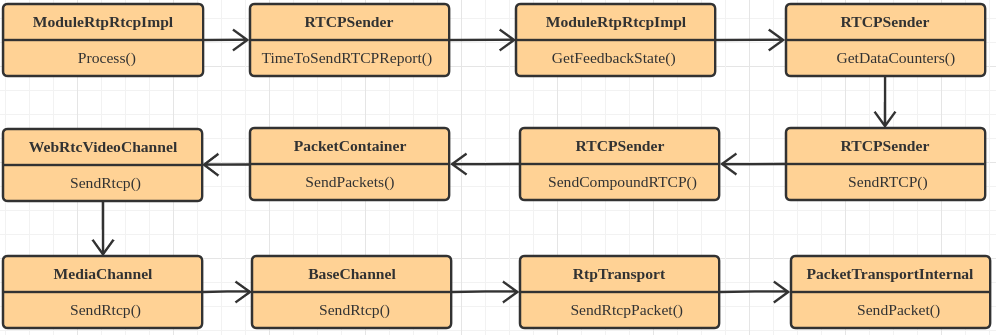

void ModuleRtpRtcpImpl::Process() {
  const int64_t now = clock_->TimeInMilliseconds();
  next_process_time_ = now + kRtpRtcpMaxIdleTimeProcessMs;
  .......省略
  if (rtcp_sender_.TimeToSendRTCPReport())
    rtcp_sender_.SendRTCP(GetFeedbackState(), kRtcpReport);
  if (TMMBR() && rtcp_receiver_.UpdateTmmbrTimers()) {
    rtcp_receiver_.NotifyTmmbrUpdated();
  }
}

#modules/rtp_rtcp/source/rtp_rtcp_impl.cc
// TODO(pbos): Handle media and RTX streams separately (separate RTCP
// feedbacks).
RTCPSender::FeedbackState ModuleRtpRtcpImpl::GetFeedbackState() {
  RTCPSender::FeedbackState state;
  // This is called also when receiver_only is true. Hence below
  // checks that rtp_sender_ exists.
  if (rtp_sender_) {
    StreamDataCounters rtp_stats;
    StreamDataCounters rtx_stats;
    rtp_sender_->GetDataCounters(&rtp_stats, &rtx_stats);
    state.packets_sent =
        rtp_stats.transmitted.packets + rtx_stats.transmitted.packets;
    state.media_bytes_sent = rtp_stats.transmitted.payload_bytes +
                              rtx_stats.transmitted.payload_bytes;
    state.send_bitrate = rtp_sender_->BitrateSent();
  }
  state.module = this;
  LastReceivedNTP(&state.last_rr_ntp_secs, &state.last_rr_ntp_frac,
                  &state.remote_sr);
  state.last_xr_rtis = rtcp_receiver_.ConsumeReceivedXrReferenceTimeInfo();
  return state;
}

#modules/rtp_rtcp/source/rtp_rtcp_impl.cc
bool ModuleRtpRtcpImpl::LastReceivedNTP(
    uint32_t* rtcp_arrival_time_secs,  // When we got the last report.
    uint32_t* rtcp_arrival_time_frac,
    uint32_t* remote_sr) const {
  // Remote SR: NTP inside the last received (mid 16 bits from sec and frac).
  uint32_t ntp_secs = 0;
  uint32_t ntp_frac = 0;
  if (!rtcp_receiver_.NTP(&ntp_secs, &ntp_frac, rtcp_arrival_time_secs,
                          rtcp_arrival_time_frac, NULL)) {
    return false;
  }
  *remote_sr =
      ((ntp_secs & 0x0000ffff) << 16) + ((ntp_frac & 0xffff0000) >> 16);
  return true;
}

int32_t RTCPSender::SendRTCP(const FeedbackState& feedback_state,
                              RTCPPacketType packetType,
                              int32_t nack_size,
                              const uint16_t* nack_list) {
  return SendCompoundRTCP(
      feedback_state, std::set<RTCPPacketType>(&packetType, &packetType + 1),
      nack_size, nack_list);
}

int32_t RTCPSender::SendCompoundRTCP(
    const FeedbackState& feedback_state,
    const std::set<RTCPPacketType>& packet_types,
    int32_t nack_size,
    const uint16_t* nack_list) {
  PacketContainer container(transport_, event_log_);
  size_t max_packet_size;
  {
    rtc::CritScope lock(&critical_section_rtcp_sender_);
    // Add all flags as volatile. Non volatile entries will not be overwritten.
    // All new volatile flags added will be consumed by the end of this call.
    SetFlags(packet_types, true);
    .....
    // We need to send our NTP even if we haven't received any reports.
    RtcpContext context(feedback_state, nack_size, nack_list,
                        clock_->TimeInMicroseconds());
    PrepareReport(feedback_state);
    std::unique_ptr<rtcp::RtcpPacket> packet_bye;
    auto it = report_flags_.begin();
    while (it != report_flags_.end()) {
      auto builder_it = builders_.find(it->type);
      RTC_DCHECK(builder_it != builders_.end())
          << "Could not find builder for packet type " << it->type;
      if (it->is_volatile) {
        report_flags_.erase(it++);
      } else {
        ++it;
      }
      BuilderFunc func = builder_it->second;
      std::unique_ptr<rtcp::RtcpPacket> packet = (this->*func)(context);
      if (packet == nullptr)
        return -1;
      // If there is a BYE, don't append now - save it and append it
      // at the end later.
      if (builder_it->first == kRtcpBye) {
        packet_bye = std::move(packet);
      } else {
        container.Append(packet.release());
      }
    }
    // Append the BYE now at the end
    if (packet_bye) {
      container.Append(packet_bye.release());
    }
    if (packet_type_counter_observer_ != nullptr) {
      packet_type_counter_observer_->RtcpPacketTypesCounterUpdated(
          remote_ssrc_, packet_type_counter_);
    }
    RTC_DCHECK(AllVolatileFlagsConsumed());
    max_packet_size = max_packet_size_;
  }
  size_t bytes_sent = container.SendPackets(max_packet_size);
  return bytes_sent == 0 ? -1 : 0;
}

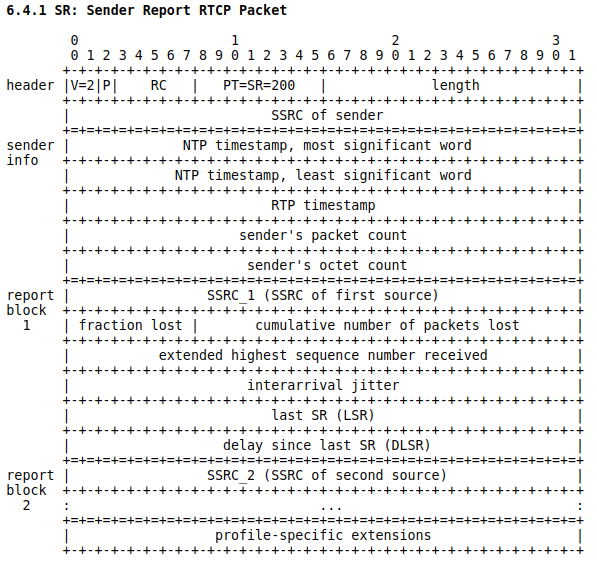

std::unique_ptr<rtcp::RtcpPacket> RTCPSender::BuildSR(const RtcpContext& ctx) {
  // Timestamp shouldn't be estimated before first media frame.
  RTC_DCHECK_GE(last_frame_capture_time_ms_, 0);
  // The timestamp of this RTCP packet should be estimated as the timestamp of
  // the frame being captured at this moment. We are calculating that
  // timestamp as the last frame's timestamp + the time since the last frame
  // was captured.
  int rtp_rate = rtp_clock_rates_khz_[last_payload_type_];
  if (rtp_rate <= 0) {
    rtp_rate =
        (audio_ ? kBogusRtpRateForAudioRtcp : kVideoPayloadTypeFrequency) /
        1000;
  }
  // Round now_us_ to the closest millisecond, because Ntp time is rounded
  // when converted to milliseconds,
  // 同一帧数据的rtp_timestamp的时间戳是一样的
  uint32_t rtp_timestamp =
      timestamp_offset_ + last_rtp_timestamp_ +
      ((ctx.now_us_ + 500) / 1000 - last_frame_capture_time_ms_) * rtp_rate;
  rtcp::SenderReport* report = new rtcp::SenderReport();
  report->SetSenderSsrc(ssrc_);
  report->SetNtp(TimeMicrosToNtp(ctx.now_us_));
  report->SetRtpTimestamp(rtp_timestamp);
  report->SetPacketCount(ctx.feedback_state_.packets_sent);
  report->SetOctetCount(ctx.feedback_state_.media_bytes_sent);
  report->SetReportBlocks(CreateReportBlocks(ctx.feedback_state_));
  return std::unique_ptr<rtcp::RtcpPacket>(report);
}

std::vector<rtcp::ReportBlock> RTCPSender::CreateReportBlocks(
    const FeedbackState& feedback_state) {
  std::vector<rtcp::ReportBlock> result;
  if (!receive_statistics_)
    return result;
  // TODO(danilchap): Support sending more than |RTCP_MAX_REPORT_BLOCKS| per
  // compound rtcp packet when single rtcp module is used for multiple media
  // streams.
  result = receive_statistics_->RtcpReportBlocks(RTCP_MAX_REPORT_BLOCKS);
  if (!result.empty() && ((feedback_state.last_rr_ntp_secs != 0) ||
                          (feedback_state.last_rr_ntp_frac != 0))) {
    // Get our NTP as late as possible to avoid a race.
    uint32_t now = CompactNtp(TimeMicrosToNtp(clock_->TimeInMicroseconds()));
    uint32_t receive_time = feedback_state.last_rr_ntp_secs & 0x0000FFFF;
    receive_time <<= 16;
    receive_time += (feedback_state.last_rr_ntp_frac & 0xffff0000) >> 16;
    uint32_t delay_since_last_sr = now - receive_time;
    // TODO(danilchap): Instead of setting same value on all report blocks,
    // set only when media_ssrc match sender ssrc of the sender report
    // remote times were taken from.
    for (auto& report_block : result) {
      report_block.SetLastSr(feedback_state.remote_sr);
      report_block.SetDelayLastSr(delay_since_last_sr);
    }
  }
  return result;
}

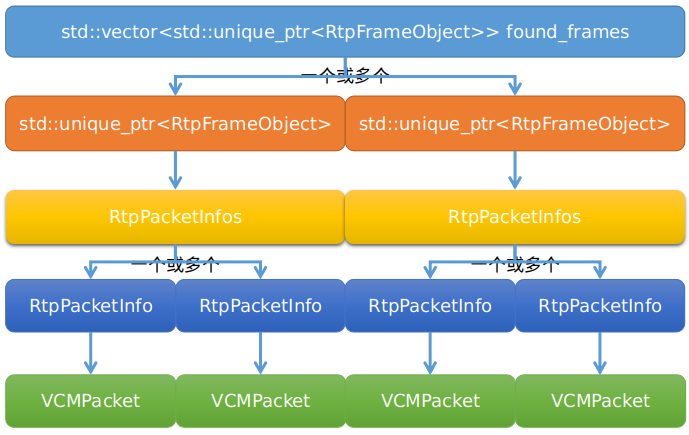

struct ContinuityInfo {
    // The sequence number of the packet.
    uint16_t seq_num = 0;
    // If this is the first packet of the frame.
    bool frame_begin = false;
    // If this is the last packet of the frame.
    bool frame_end = false;
    // If this slot is currently used.
    bool used = false;
    // If all its previous packets have been inserted into the packet buffer.
    bool continuous = false;
    // If this packet has been used to create a frame already.
    bool frame_created = false;
};

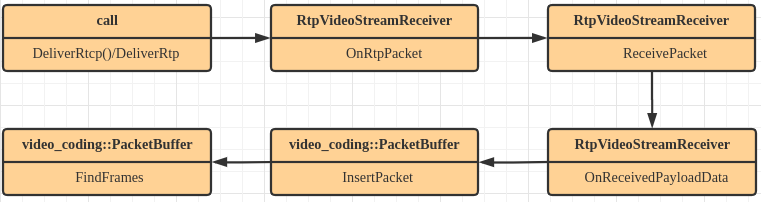

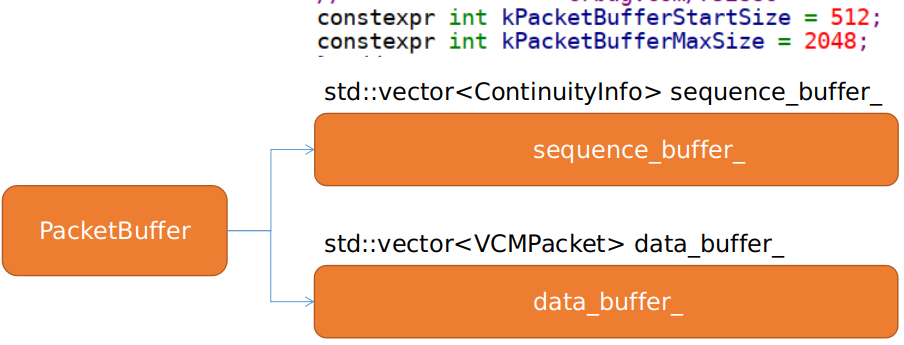

bool PacketBuffer::ExpandBufferSize() {
  if (size_ == max_size_) {
    RTC_LOG(LS_WARNING) << "PacketBuffer is already at max size (" << max_size_
                        << "), failed to increase size.";
    return false;
  }
  size_t new_size = std::min(max_size_, 2 * size_);
  std::vector<VCMPacket> new_data_buffer(new_size);
  std::vector<ContinuityInfo> new_sequence_buffer(new_size);
  for (size_t i = 0; i < size_; ++i) {
    if (sequence_buffer_[i].used) {
      size_t index = sequence_buffer_[i].seq_num % new_size;
      new_sequence_buffer[index] = sequence_buffer_[i];
      new_data_buffer[index] = data_buffer_[i];
    }
  }
  size_ = new_size;
  sequence_buffer_ = std::move(new_sequence_buffer);
  data_buffer_ = std::move(new_data_buffer);
  RTC_LOG(LS_INFO) << "PacketBuffer size expanded to " << new_size;
  return true;
}

bool PacketBuffer::InsertPacket(VCMPacket* packet) {
  std::vector<std::unique_ptr<RtpFrameObject>> found_frames;
  {
    rtc::CritScope lock(&crit_);
    OnTimestampReceived(packet->timestamp);
    uint16_t seq_num = packet->seqNum;
    size_t index = seq_num % size_;
    if (!first_packet_received_) {
      first_seq_num_ = seq_num;
      first_packet_received_ = true;
    } else if (AheadOf(first_seq_num_, seq_num)) {
      // If we have explicitly cleared past this packet then it's old,
      // don't insert it, just silently ignore it.
      if (is_cleared_to_first_seq_num_) {
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return true;
      }
      first_seq_num_ = seq_num;
    }
    if (sequence_buffer_[index].used) {
      // Duplicate packet, just delete the payload.
      if (data_buffer_[index].seqNum == packet->seqNum) {
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return true;
      }
      // The packet buffer is full, try to expand the buffer.
      while (ExpandBufferSize() && sequence_buffer_[seq_num % size_].used) {
      }
      index = seq_num % size_;
      // Packet buffer is still full since we were unable to expand the buffer.
      if (sequence_buffer_[index].used) {
        // Clear the buffer, delete payload, and return false to signal that a
        // new keyframe is needed.
        RTC_LOG(LS_WARNING) << "Clear PacketBuffer and request key frame.";
        Clear();
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return false;
      }
    }
    sequence_buffer_[index].frame_begin = packet->is_first_packet_in_frame();
    sequence_buffer_[index].frame_end = packet->is_last_packet_in_frame();
    sequence_buffer_[index].seq_num = packet->seqNum;
    sequence_buffer_[index].continuous = false;
    sequence_buffer_[index].frame_created = false;
    sequence_buffer_[index].used = true;
    data_buffer_[index] = *packet;
    packet->dataPtr = nullptr;
    UpdateMissingPackets(packet->seqNum);
    int64_t now_ms = clock_->TimeInMilliseconds();
    last_received_packet_ms_ = now_ms;
    if (packet->video_header.frame_type == VideoFrameType::kVideoFrameKey)
      last_received_keyframe_packet_ms_ = now_ms;
    found_frames = FindFrames(seq_num);
  }
  for (std::unique_ptr<RtpFrameObject>& frame : found_frames)
    assembled_frame_callback_->OnAssembledFrame(std::move(frame));
  return true;
}

bool PacketBuffer::PotentialNewFrame(uint16_t seq_num) const {
  size_t index = seq_num % size_;
  int prev_index = index > 0 ? index - 1 : size_ - 1;
  ....
  if (sequence_buffer_[index].frame_begin)
    return true;
  ....
  if (sequence_buffer_[prev_index].continuous)
    return true;
  return false;
}

std::vector<std::unique_ptr<RtpFrameObject>> PacketBuffer::FindFrames(
    uint16_t seq_num) {
  std::vector<std::unique_ptr<RtpFrameObject>> found_frames;
  for (size_t i = 0; i < size_ && PotentialNewFrame(seq_num); ++i) {
    size_t index = seq_num % size_;
    sequence_buffer_[index].continuous = true;
    // If all packets of the frame is continuous, find the first packet of the
    // frame and create an RtpFrameObject.
    if (sequence_buffer_[index].frame_end) {
      size_t frame_size = 0;
      int max_nack_count = -1;
      uint16_t start_seq_num = seq_num;
      RtpPacketInfos::vector_type packet_infos;
      // Find the start index by searching backward until the packet with
      // the |frame_begin| flag is set.
      int start_index = index;
      size_t tested_packets = 0;
      int64_t frame_timestamp = data_buffer_[start_index].timestamp;
      // Identify H.264 keyframes by means of SPS, PPS, and IDR.
      bool is_h264 = data_buffer_[start_index].codec() == kVideoCodecH264;
      bool has_h264_sps = false;
      bool has_h264_pps = false;
      bool has_h264_idr = false;
      bool is_h264_keyframe = false;
      /*使用while true 循环递减组包*/
      while (true) {
        ++tested_packets;
        /*计算一帧RTP包的总大小*/
        frame_size += data_buffer_[start_index].sizeBytes;
        /*.....省略...*/
        sequence_buffer_[start_index].frame_created = true;
        // Should use |push_front()| since the loop traverses backwards. But
        // it's too inefficient to do so on a vector so we'll instead fix the
        // order afterwards.
        /*将data_buffer_[start_index].packet_info存入到packet_infos容器*/
        packet_infos.push_back(data_buffer_[start_index].packet_info);
        /*非H264类型的RTP包当检测到sequence_buffer_[start_index].frame_begin为
          true,也就是按照下面分析的检测到seqNumber=2680的时候会退出循环
        */
        if (!is_h264 && sequence_buffer_[start_index].frame_begin)
          break;
        if (is_h264 && !is_h264_keyframe) {
          const auto* h264_header = absl::get_if<RTPVideoHeaderH264>(
              &data_buffer_[start_index].video_header.video_type_header);
          if (!h264_header || h264_header->nalus_length >= kMaxNalusPerPacket)
            return found_frames;
          for (size_t j = 0; j < h264_header->nalus_length; ++j) {
            if (h264_header->nalus[j].type == H264::NaluType::kSps) {
              has_h264_sps = true;
            } else if (h264_header->nalus[j].type == H264::NaluType::kPps) {
              has_h264_pps = true;
            } else if (h264_header->nalus[j].type == H264::NaluType::kIdr) {
              has_h264_idr = true;
            }
          }
          if ((sps_pps_idr_is_h264_keyframe_ && has_h264_idr && has_h264_sps &&
                has_h264_pps) ||
              (!sps_pps_idr_is_h264_keyframe_ && has_h264_idr)) {
            is_h264_keyframe = true;
          }
        }
        /*.....全部检索...*/
        if (tested_packets == size_)
          break;
        start_index = start_index > 0 ? start_index - 1 : size_ - 1;
        // In the case of H264 we don't have a frame_begin bit (yes,
        // |frame_begin| might be set to true but that is a lie). So instead
        // we traverese backwards as long as we have a previous packet and
        // the timestamp of that packet is the same as this one. This may cause
        // the PacketBuffer to hand out incomplete frames.
        // See: https://bugs.chromium.org/p/webrtc/issues/detail?id=7106
        /*对于H264数据包当frame_timestamp不一样,根据同一帧数据的RTP包的rtp时间戳相等的原则*/
        if (is_h264 &&
            (!sequence_buffer_[start_index].used ||
              data_buffer_[start_index].timestamp != frame_timestamp)) {
          break;
        }
        --start_seq_num;
      }
      //while(true)结束完后start_seq_num已经对应为seqNum的包号了
      /*上面的检测是递减组包这里将packet_infos的包的顺序进行逆向调整
        按照下文的分析调整完后packet_infos[0]对应seqNumb = 2680的包
        */
      // Fix the order since the packet-finding loop traverses backwards.
      std::reverse(packet_infos.begin(), packet_infos.end());
      if (is_h264) {
        // Now that we have decided whether to treat this frame as a key frame
        // or delta frame in the frame buffer, we update the field that
        // determines if the RtpFrameObject is a key frame or delta frame.
        const size_t first_packet_index = start_seq_num % size_;
        RTC_CHECK_LT(first_packet_index, size_);
        if (is_h264_keyframe) {
          data_buffer_[first_packet_index].video_header.frame_type =
              VideoFrameType::kVideoFrameKey;
        } else {
          data_buffer_[first_packet_index].video_header.frame_type =
              VideoFrameType::kVideoFrameDelta;
        }
        // With IPPP, if this is not a keyframe, make sure there are no gaps
        // in the packet sequence numbers up until this point.
        const uint8_t h264tid =
            data_buffer_[start_index].video_header.frame_marking.temporal_id;
        if (h264tid == kNoTemporalIdx && !is_h264_keyframe &&
            missing_packets_.upper_bound(start_seq_num) !=
                missing_packets_.begin()) {
          uint16_t stop_index = (index + 1) % size_;
          while (start_index != stop_index) {
            sequence_buffer_[start_index].frame_created = false;
            start_index = (start_index + 1) % size_;
          }
          return found_frames;
        }
      }
      missing_packets_.erase(missing_packets_.begin(),
                              missing_packets_.upper_bound(seq_num));
      found_frames.emplace_back(
          new RtpFrameObject(this, start_seq_num, seq_num, frame_size,
                              max_nack_count, min_recv_time, max_recv_time,
                              RtpPacketInfos(std::move(packet_infos))));
      ClearInterval(start_seq_num, seq_num);
    }
    ++seq_num;
  }
  return found_frames;
}

sequence_buffer_[120].frame_begin = true;
sequence_buffer_[120].frame_end = false;
sequence_buffer_[120].seq_num = 2680;
sequence_buffer_[120].continuous = false;
sequence_buffer_[120].frame_created = false;
sequence_buffer_[120].used = true;

sequence_buffer_[120].continuous = true;

sequence_buffer_[120].frame_begin = true;
sequence_buffer_[120~123].frame_end = false;
sequence_buffer_[120~123].seq_num = 2680~2683;
sequence_buffer_[120~123].continuous = true;
sequence_buffer_[120~123].frame_created = false;
sequence_buffer_[120~123].used = true;

bool PacketBuffer::GetBitstream(const RtpFrameObject& frame,
                                uint8_t* destination) {
  rtc::CritScope lock(&crit_);
  size_t index = frame.first_seq_num() % size_;
  size_t end = (frame.last_seq_num() + 1) % size_;
  uint16_t seq_num = frame.first_seq_num();
  uint32_t timestamp = frame.Timestamp();
  uint8_t* destination_end = destination + frame.size();
  do {
    // Check both seq_num and timestamp to handle the case when seq_num wraps
    // around too quickly for high packet rates.
    ......
    RTC_DCHECK_EQ(data_buffer_[index].seqNum, sequence_buffer_[index].seq_num);
    size_t length = data_buffer_[index].sizeBytes;
    ......
    const uint8_t* source = data_buffer_[index].dataPtr;
    memcpy(destination, source, length);
    destination += length;
    index = (index + 1) % size_;
    ++seq_num;
  } while (index != end);
  return true;
}
