// Update statistics.
if ((enable_rtx_handling_ || (int32_t)(main_timestamp - timestamp_) >= 0) &&
    !new_codec_) {
  // Only update statistics if incoming packet is not older than last played
  // out packet or RTX handling is enabled, and if new codec flag is not
  // set.
  delay_manager_->Update(main_sequence_number, main_timestamp, fs_hz_);
}

// Try calculating packet length from current and previous timestamps.
int packet_len_ms;
if (!IsNewerTimestamp(timestamp, last_timestamp_) ||
    !IsNewerSequenceNumber(sequence_number, last_seq_no_)) {
  // Wrong timestamp or sequence order; use stored value.
  packet_len_ms = packet_len_ms_;
} else {
  // Calculate timestamps per packet and derive packet length in ms.
  int64_t packet_len_samp =
      static_cast<uint32_t>(timestamp - last_timestamp_) /
      static_cast<uint16_t>(sequence_number - last_seq_no_);
  packet_len_ms =
      rtc::saturated_cast<int>(1000 * packet_len_samp / sample_rate_hz);
}

// Cannot update statistics unless |packet_len_ms| is valid.
// Calculate inter-arrival time (IAT) in integer "packet times"
// (rounding down). This is the value used as index to the histogram
// vector |iat_vector_|.
int iat_packets = packet_iat_stopwatch_->ElapsedMs() / packet_len_ms;

if (IsNewerSequenceNumber(sequence_number, last_seq_no_ + 1)) {
  // Compensate for gap in the sequence numbers. Reduce IAT with the
  // expected extra time due to lost packets, but ensure that the IAT is
  // not negative.
  iat_packets -= static_cast<uint16_t>(sequence_number - last_seq_no_ - 1);
  iat_packets = std::max(iat_packets, 0);
} else if (!IsNewerSequenceNumber(sequence_number, last_seq_no_)) {
  iat_packets += static_cast<uint16_t>(last_seq_no_ + 1 - sequence_number);
  reordered = true;
}

// Saturate IAT at maximum value.
const int max_iat = kMaxIat;
iat_packets = std::min(iat_packets, max_iat);
UpdateHistogram(iat_packets);
// Calculate new |target_level_| based on updated statistics.
target_level_ = CalculateTargetLevel(iat_packets, reordered);

size_t index = 0;           // Start from the beginning of |iat_vector_|.
int sum = 1 << 30;          // Assign to 1 in Q30.
sum -= iat_vector_[index];  // Ensure that target level is >= 1.

do {
  // Subtract the probabilities one by one until the sum is no longer greater
  // than limit_probability.
  ++index;
  sum -= iat_vector_[index];
} while ((sum > limit_probability) && (index < iat_vector_.size() - 1));

// Update detector for delay peaks.
bool delay_peak_found =
    peak_detector_.Update(iat_packets, reordered, target_level);
if (delay_peak_found) {
  target_level = std::max(target_level, peak_detector_.MaxPeakHeight());
}

if (inter_arrival_time > target_level + peak_detection_threshold_ ||
    inter_arrival_time > 2 * target_level) {
  // A delay peak is observed.
  if (!peak_period_stopwatch_) {
    // This is the first peak. Reset the period counter.
    peak_period_stopwatch_ = tick_timer_->GetNewStopwatch();
  } else if (peak_period_stopwatch_->ElapsedMs() > 0) {
    if (peak_period_stopwatch_->ElapsedMs() <= kMaxPeakPeriodMs) {
      // This is not the first peak, and the period is valid.
      // Store peak data in the vector.
      Peak peak_data;
      peak_data.period_ms = peak_period_stopwatch_->ElapsedMs();
      peak_data.peak_height_packets = inter_arrival_time;
      peak_history_.push_back(peak_data);
      while (peak_history_.size() > kMaxNumPeaks) {
        // Delete the oldest data point.
        peak_history_.pop_front();
      }
      peak_period_stopwatch_ = tick_timer_->GetNewStopwatch();
    } else if (peak_period_stopwatch_->ElapsedMs() <= 2 * kMaxPeakPeriodMs) {
      // Invalid peak due to too long period. Reset period counter and start
      // looking for next peak.
      peak_period_stopwatch_ = tick_timer_->GetNewStopwatch();
    } else {
      // More than 2 times the maximum period has elapsed since the last peak
      // was registered. It seams that the network conditions have changed.
      // Reset the peak statistics.
      Reset();
    }
  }
}

bool DelayPeakDetector::CheckPeakConditions() {
  size_t s = peak_history_.size();
  if (s >= x &&
      peak_period_stopwatch_->ElapsedMs() <= 2 * MaxPeakPeriod()) {
    peak_found_ = true;
  } else {
    peak_found_ = false;
  }
  return peak_found_;
}

// Check if the required packet is available.
if (target_timestamp == available_timestamp) {
  return ExpectedPacketAvailable(prev_mode, play_dtmf);
} else if (!PacketBuffer::IsObsoleteTimestamp(
               available_timestamp, target_timestamp, five_seconds_samples)) {
  return FuturePacketAvailable(
      sync_buffer, expand, decoder_frame_length, prev_mode, target_timestamp,
      available_timestamp, play_dtmf, generated_noise_samples);
} else {
  // This implies that available_timestamp < target_timestamp, which can
  // happen when a new stream or codec is received. Signal for a reset.
  return kUndefined;
}

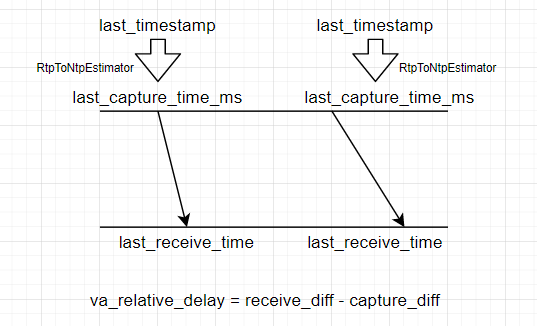

// Calculate the difference between the lowest possible video delay and the
// current audio delay.
// 视频的jitter buffer当前延迟 -音频的jitter buffer当前延迟 + 相对延迟
int current_diff_ms =
    current_video_delay_ms - current_audio_delay_ms + relative_delay_ms;

// 调整不会一步到位，需要做平滑
  avg_diff_ms_ =
      ((kFilterLength - 1) * avg_diff_ms_ + current_diff_ms) / kFilterLength;
  // 如果差距很小（30ms内）先不调整
  if (abs(avg_diff_ms_) < kMinDeltaMs) {
    // Don't adjust if the diff is within our margin.
    return false;
  }

  // 控制调整步长，单次不超过80ms
  // Make sure we don't move too fast.
  int diff_ms = avg_diff_ms_ / 2;
  diff_ms = std::min(diff_ms, kMaxChangeMs);
  diff_ms = std::max(diff_ms, -kMaxChangeMs);

  // Reset the average after a move to prevent overshooting reaction.
  avg_diff_ms_ = 0;

  if (diff_ms > 0) {
    // The minimum video delay is longer than the current audio delay.
    // We need to decrease extra video delay, or add extra audio delay.
    // 视频相对音频有延迟，降低视频延迟，或者增加音频延迟
    if (video_delay_.extra_ms > base_target_delay_ms_) {
      // We have extra delay added to ViE. Reduce this delay before adding
      // extra delay to VoE.
      // video延迟降低diff_ms，audio延迟不变
      video_delay_.extra_ms -= diff_ms;
      audio_delay_.extra_ms = base_target_delay_ms_;
    } else {  // video_delay_.extra_ms > 0
      // We have no extra video delay to remove, increase the audio delay.
      // audio延迟增加diff_ms，video延迟不变
      audio_delay_.extra_ms += diff_ms;
      video_delay_.extra_ms = base_target_delay_ms_;
    }
  } else {  // if (diff_ms > 0)
    // The video delay is lower than the current audio delay.
    // We need to decrease extra audio delay, or add extra video delay.
    // 音频相对视频有延迟，降低音频延迟或者增加视频延迟
    if (audio_delay_.extra_ms > base_target_delay_ms_) {
      // We have extra delay in VoiceEngine.
      // Start with decreasing the voice delay.
      // Note: diff_ms is negative; add the negative difference.
      audio_delay_.extra_ms += diff_ms;
      video_delay_.extra_ms = base_target_delay_ms_;
    } else {  // audio_delay_.extra_ms > base_target_delay_ms_
      // We have no extra delay in VoiceEngine, increase the video delay.
      // Note: diff_ms is negative; subtract the negative difference.
      video_delay_.extra_ms -= diff_ms;  // X - (-Y) = X + Y.
      audio_delay_.extra_ms = base_target_delay_ms_;
    }
  }

  // Make sure that video is never below our target.
  video_delay_.extra_ms =
      std::max(video_delay_.extra_ms, base_target_delay_ms_);

  int new_video_delay_ms;
  if (video_delay_.extra_ms > base_target_delay_ms_) {
    new_video_delay_ms = video_delay_.extra_ms;
  } else {
    // No change to the extra video delay. We are changing audio and we only
    // allow to change one at the time.
    new_video_delay_ms = video_delay_.last_ms;
  }

  // Make sure that we don't go below the extra video delay.
  new_video_delay_ms = std::max(new_video_delay_ms, video_delay_.extra_ms);

  // Verify we don't go above the maximum allowed video delay.
  new_video_delay_ms =
      std::min(new_video_delay_ms, base_target_delay_ms_ + kMaxDeltaDelayMs);

  int new_audio_delay_ms;
  if (audio_delay_.extra_ms > base_target_delay_ms_) {
    new_audio_delay_ms = audio_delay_.extra_ms;
  } else {
    // No change to the audio delay. We are changing video and we only allow to
    // change one at the time.
    new_audio_delay_ms = audio_delay_.last_ms;
  }

  // Make sure that we don't go below the extra audio delay.
  new_audio_delay_ms = std::max(new_audio_delay_ms, audio_delay_.extra_ms);

  // Verify we don't go above the maximum allowed audio delay.
  new_audio_delay_ms =
      std::min(new_audio_delay_ms, base_target_delay_ms_ + kMaxDeltaDelayMs);

  video_delay_.last_ms = new_video_delay_ms;
  audio_delay_.last_ms = new_audio_delay_ms;

  RTC_LOG(LS_VERBOSE) << "Sync video delay " << new_video_delay_ms
                      << " for video stream " << video_stream_id_
                      << " and audio delay " << audio_delay_.extra_ms
                      << " for audio stream " << audio_stream_id_;

  *total_video_delay_target_ms = new_video_delay_ms;
  *total_audio_delay_target_ms = new_audio_delay_ms;

syncable_audio_->SetMinimumPlayoutDelay(target_audio_delay_ms);
syncable_video_->SetMinimumPlayoutDelay(target_video_delay_ms);

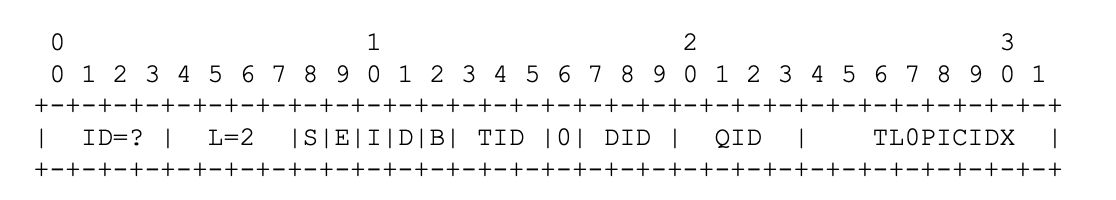

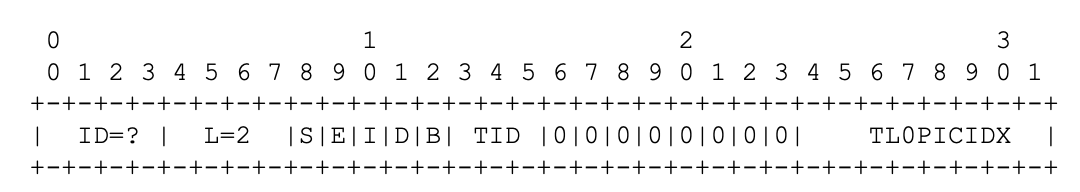

a=extmap:3 urn:ietf:params:rtp-hdrext:framemarking

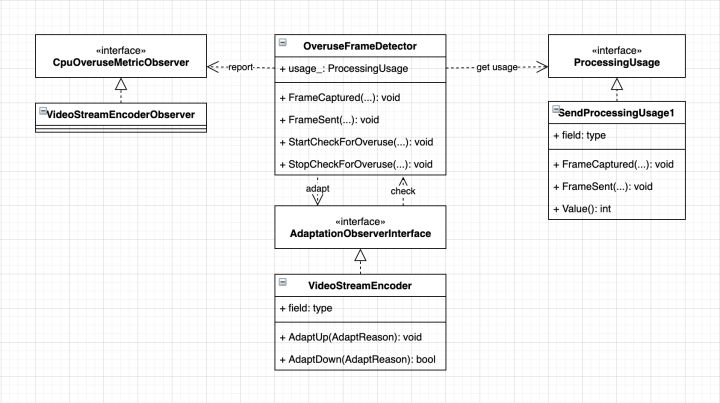

bool OveruseFrameDetector::IsOverusing(int usage_percent) {
  // 使用率超过overuse的阈值，一般为90
  if (usage_percent >= options_.high_encode_usage_threshold_percent) {
    ++checks_above_threshold_;
  } else {
    checks_above_threshold_ = 0;
  }
  // 连续2次超过阈值才认为是overuse
  return checks_above_threshold_ >= options_.high_threshold_consecutive_count;
}

bool OveruseFrameDetector::IsUnderusing(int usage_percent, int64_t time_now) {
  // 当前performance上升(ramp up)，需要超过一定时长，否则不认为已经是underuse
  int delay = in_quick_rampup_ ? kQuickRampUpDelayMs : current_rampup_delay_ms_;
  if (time_now < last_rampup_time_ms_ + delay)
    return false;
  // 低于阈值(一般overuse阈值的一半)就是underuse
  return usage_percent < options_.low_encode_usage_threshold_percent;
}

bool check_for_backoff = last_rampup_time_ms_ > last_overuse_time_ms_;
if (check_for_backoff) {
  if (now_ms - last_rampup_time_ms_ < kStandardRampUpDelayMs ||
      num_overuse_detections_ > kMaxOverusesBeforeApplyRampupDelay) {
    // Going up was not ok for very long, back off.
    current_rampup_delay_ms_ *= kRampUpBackoffFactor;
    if (current_rampup_delay_ms_ > kMaxRampUpDelayMs)
      current_rampup_delay_ms_ = kMaxRampUpDelayMs;
  } else {
    // Not currently backing off, reset rampup delay.
    current_rampup_delay_ms_ = kStandardRampUpDelayMs;
  }
}

bool RequestResolutionLowerThan(int pixel_count,
                                int min_pixels_per_frame,
                                bool* min_pixels_reached) {
    ...
    // MAINTAIN_FRAMERATE或者BALANCED时才能调整分辨率
    if (!source_ || !IsResolutionScalingEnabled(degradation_preference_)) {
        return false;
    }

    // 根据像素个数来做分辨率选择，像素个数变为原来的3/5
    const int pixels_wanted = (pixel_count * 3) / 5;
    if (pixels_wanted >= sink_wants_.max_pixel_count) {
        return false;
    }

    // 分辨率降低有限制
    if (pixels_wanted < min_pixels_per_frame) {
        *min_pixels_reached = true;
        return false;
    }

    // 更新sink wants到source
    sink_wants_.max_pixel_count = pixels_wanted;
    sink_wants_.target_pixel_count = absl::nullopt;
    source_->AddOrUpdateSink(video_stream_encoder_,
                                GetActiveSinkWantsInternal());
    return true;
}

int RequestFramerateLowerThan(int fps) {
  // 帧率降低到2/3
  int framerate_wanted = (fps * 2) / 3;
  return RestrictFramerate(framerate_wanted) ? framerate_wanted : -1;
}

bool RestrictFramerate(int fps) {
    ...
    // MAINTAIN_RESOLUTION或BALANCED时才能降低帧率
    if (!source_ || !IsFramerateScalingEnabled(degradation_preference_))
      return false;
    // 帧率不能降低到2fps
    const int fps_wanted = std::max(kMinFramerateFps, fps);
    if (fps_wanted >= sink_wants_.max_framerate_fps)
      return false;
    // 更新sink wants到source
    sink_wants_.max_framerate_fps = fps_wanted;
    source_->AddOrUpdateSink(video_stream_encoder_,
                             GetActiveSinkWantsInternal());
    return true;
}

int MinFps(int pixels) {
  if (pixels <= 320 * 240) {
    return 7;
  } else if (pixels <= 480 * 270) {
    return 10;
  } else if (pixels <= 640 * 480) {
    return 15;
  } else {
    return std::numeric_limits<int>::max();
  }
}

bool RequestHigherResolutionThan(int pixel_count) {
    ...
    // MAINTAIN_FRAMERATE或者BALANCED时才能调整分辨率
    if (!source_ || !IsResolutionScalingEnabled(degradation_preference_)) {
        return false;
    }

    // 像素x4上调
    int max_pixels_wanted = pixel_count;
    if (max_pixels_wanted != std::numeric_limits<int>::max())
        max_pixels_wanted = pixel_count * 4;

    if (max_pixels_wanted <= sink_wants_.max_pixel_count)
        return false;

    sink_wants_.max_pixel_count = max_pixels_wanted;
    if (max_pixels_wanted == std::numeric_limits<int>::max()) {
        // Remove any constraints.
        sink_wants_.target_pixel_count.reset();
    } else {
        sink_wants_.target_pixel_count = GetHigherResolutionThan(pixel_count);
    }

    // 更新sink wants到source
    source_->AddOrUpdateSink(video_stream_encoder_,
                                GetActiveSinkWantsInternal());
    return true;
}

int RequestHigherFramerateThan(int fps) {
    // 调整速率，down是2/3，up是3/2
    int framerate_wanted = fps;
    if (fps != std::numeric_limits<int>::max())
        framerate_wanted = (fps * 3) / 2;
    return IncreaseFramerate(framerate_wanted) ? framerate_wanted : -1;
}

int MaxFps(int pixels) {
  if (pixels <= 320 * 240) {
    return 10;
  } else if (pixels <= 480 * 270) {
    return 15;
  } else {
    return std::numeric_limits<int>::max();
  }
}
