class DataChannelTransportInterface {
  public:
  virtual ~DataChannelTransportInterface() = default;
  // Opens a data |channel_id| for sending.  May return an error if the
  // specified |channel_id| is unusable.  Must be called before |SendData|.
  virtual RTCError OpenChannel(int channel_id) = 0;
  // Sends a data buffer to the remote endpoint using the given send parameters.
  // |buffer| may not be larger than 256 KiB. Returns an error if the send
  // fails.
  virtual RTCError SendData(int channel_id,
                            const SendDataParams& params,
                            const rtc::CopyOnWriteBuffer& buffer) = 0;
  // Closes |channel_id| gracefully.  Returns an error if |channel_id| is not
  // open.  Data sent after the closing procedure begins will not be
  // transmitted. The channel becomes closed after pending data is transmitted.
  virtual RTCError CloseChannel(int channel_id) = 0;
  // Sets a sink for data messages and channel state callbacks. Before media
  // transport is destroyed, the sink must be unregistered by setting it to
  // nullptr.
  virtual void SetDataSink(DataChannelSink* sink) = 0;
  // Returns whether this data channel transport is ready to send.
  // Note: the default implementation always returns false (as it assumes no one
  // has implemented the interface).  This default implementation is temporary.
  virtual bool IsReadyToSend() const = 0;
};

bool PeerConnection::SetupDataChannelTransport_n(const std::string& mid) {
  // 1. 根据DataChannel的mid值获取底层的Transport
  DataChannelTransportInterface* transport =
      transport_controller_->GetDataChannelTransport(mid);
  if (!transport) {
    RTC_LOG(LS_ERROR)
        << "Data channel transport is not available for data channels, mid="
        << mid;
    return false;
  }
  RTC_LOG(LS_INFO) << "Setting up data channel transport for mid=" << mid;
  // 2. data_channel_controller_设置底层传输通道成员
  //    2.1 设置DataChannelController的成员data_channel_transport_
  data_channel_controller_.set_data_channel_transport(transport);
  //    2.2 设置底层向上层传递数据/状态时，进行network——>signal线程转换的辅助类成员
  //        std::unique_ptr\<rtc::AsyncInvoker> data_channel_transport_invoker_
  data_channel_controller_.SetupDataChannelTransport_n();
  // 3. mid为SDP中mLine的mid值，由于sctp_mid_只是单个值，所以反映出使用SCTP
  //    传输多路DataChannel时，只有一个Transport，也只对应SDP中一个mLine。
  sctp_mid_ = mid;
  // 4. 设置DataChannelController为底层Transport的DataSink
  // Note: setting the data sink and checking initial state must be done last,
  // after setting up the data channel.  Setting the data sink may trigger
  // callbacks to PeerConnection which require the transport to be completely
  // set up (eg. OnReadyToSend()).
  transport->SetDataSink(&data_channel_controller_);
  return true;
}

bool PeerConnection::CreateDataChannel(const std::string& mid) {
  switch (data_channel_type()) {
    case cricket::DCT_SCTP:
    case cricket::DCT_DATA_CHANNEL_TRANSPORT_SCTP:
    case cricket::DCT_DATA_CHANNEL_TRANSPORT:
      // 1. 在网络线程中执行PeerConnection::SetupDataChannelTransport_n方法
      //    该方法使得底层Transport与DataChannelController关联上。
      if (!network_thread()->Invoke<bool>(
              RTC_FROM_HERE,
              rtc::Bind(&PeerConnection::SetupDataChannelTransport_n, this,
                        mid))) {
        return false;
      }
      // 2. 调用sctp_data_channels_中所有的DataChannel的OnTransportChannelCreated
      //    方法，该方法使得DataChannel与DataChannelController关联上，同时将通道sid值
      //    注册到底层Transport中。
      // All non-RTP data channels must initialize |sctp_data_channels_|.
      for (const auto& channel :
            *data_channel_controller_.sctp_data_channels()) {
        channel->OnTransportChannelCreated();
      }
      return true;
    case cricket::DCT_RTP:
    default:
      // 此处省略了RTP通道处理代码
      return true;
  }
  return false;
}

RTCError PeerConnection::UpdateDataChannel(
    cricket::ContentSource source,
    const cricket::ContentInfo& content,
    const cricket::ContentGroup* bundle_group) {
  // 1. 如果数据通道类别为DCT_NONE，表示不允许创建DataChanel的，说明DataChannel是不存在的
  //    直接返回OK即可
  if (data_channel_type() == cricket::DCT_NONE) {
    // If data channels are disabled, ignore this media section. CreateAnswer
    // will take care of rejecting it.
    return RTCError::OK();
  }
  // 2. 如果数据通道对应的mLine是被拒绝了，则进入销毁程序。
  //    Transport——DataChannelController——DataChannel关联线路要断开连接，
  //    并销毁已创建的底层数据通道以及DataChannel
  if (content.rejected) {
    RTC_LOG(LS_INFO) << "Rejected data channel, mid=" << content.mid();
    DestroyDataChannelTransport();
  // 3. content内容是被接受的，我们更新下数据通道相关的内容
  } else {
    // 3.1 SCTP的数据通道处理，调用CreateDataChannel来实现数据通道上下几个层次
    //     的对象的关联。如果底层Transport已经设置过了，那么不重复调用
    if (!data_channel_controller_.rtp_data_channel() &&
        !data_channel_controller_.data_channel_transport()) {
      RTC_LOG(LS_INFO) << "Creating data channel, mid=" << content.mid();
      if (!CreateDataChannel(content.name)) {
        LOG_AND_RETURN_ERROR(RTCErrorType::INTERNAL_ERROR,
                              "Failed to create data channel.");
      }
    }
    // 3.2 RTP的数据通道处理，略过不提
    if (source == cricket::CS_REMOTE) {
      const MediaContentDescription* data_desc = content.media_description();
      if (data_desc && cricket::IsRtpProtocol(data_desc->protocol())) {
        data_channel_controller_.UpdateRemoteRtpDataChannels(
            GetActiveStreams(data_desc));
      }
    }
  }
  return RTCError::OK();
}

RTCError PeerConnection::UpdateTransceiversAndDataChannels(
    cricket::ContentSource source,
    const SessionDescriptionInterface& new_session,
    const SessionDescriptionInterface* old_local_description,
    const SessionDescriptionInterface* old_remote_description) {
  // 1. 只有Unified Plan才能调用该方法
  RTC_DCHECK(IsUnifiedPlan());
  // 2. 获取新sdp结构中的ContentGroup

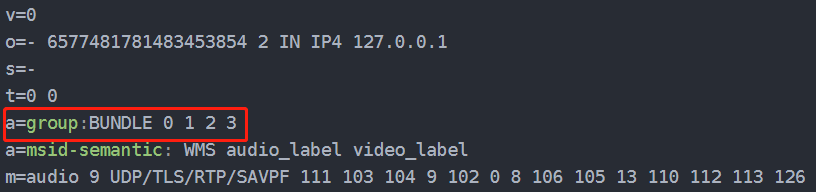

  const cricket::ContentGroup* bundle_group = nullptr;
  if (new_session.GetType() == SdpType::kOffer) {
    auto bundle_group_or_error =
        GetEarlyBundleGroup(*new_session.description());
    if (!bundle_group_or_error.ok()) {
      return bundle_group_or_error.MoveError();
    }
    bundle_group = bundle_group_or_error.MoveValue();
  }
  // 3. 遍历新SDP结构体中的所有ContentInfo，依据新ContentInfo与旧ContentInfo来
  //    更新Transceivers（存储了VideoTrack、AudioTrack）与底层传输通道的关系，
  //    更新DataChannel与底层传输通道的关系。
  const ContentInfos& new_contents = new_session.description()->contents();
  for (size_t i = 0; i < new_contents.size(); ++i) {
    const cricket::ContentInfo& new_content = new_contents[i];
    cricket::MediaType media_type = new_content.media_description()->type();
    mid_generator_.AddKnownId(new_content.name);
    // 3.1 音频、视频类别的处理，此处不解析
    if (media_type == cricket::MEDIA_TYPE_AUDIO ||
        media_type == cricket::MEDIA_TYPE_VIDEO) {
        ...//省略了video audio的处理，因为内容过长，且与当前讨论内容无关
    // 3.2 应用数据
    } else if (media_type == cricket::MEDIA_TYPE_DATA) {
      // 3.2.1 GetDataMid()返回的是sctp_mid_值，若sctp_mid_存在，且与ContentInfo中
      //       的mid不相同，则忽略。 这样处理，造成只有第一个应用数据类型的ContentInfo
      //       (mLine)才会往后处理，进行通道数据更新。因此，只有第一个ContentInfo是有效的
      if (GetDataMid() && new_content.name != *GetDataMid()) {
        // Ignore all but the first data section.
        RTC_LOG(LS_INFO) << "Ignoring data media section with MID="
                          << new_content.name;
        continue;
      }
      // 3.2.2 调用UpdateDataChannel进行数据通道更新
      RTCError error = UpdateDataChannel(source, new_content, bundle_group);
      if (!error.ok()) {
        return error;
      }
    } else {
      LOG_AND_RETURN_ERROR(RTCErrorType::INTERNAL_ERROR,
                            "Unknown section type.");
    }
  }
  return RTCError::OK();
}

RTCError PeerConnection::ApplyLocalDescription(
    std::unique_ptr<SessionDescriptionInterface> desc) {
  // 1. 检查
  //   1.1 信令线程执行该方法
  RTC_DCHECK_RUN_ON(signaling_thread());
  //   1.2 入参不可为空
  RTC_DCHECK(desc);
  // 2. 更新统计，以便获取最新的统计信息，有些流可能因更新会话导致被移除了
  // Update stats here so that we have the most recent stats for tracks and
  // streams that might be removed by updating the session description.
  stats_->UpdateStats(kStatsOutputLevelStandard);
  // 3. 使用old_local_description保存旧的本地SDP结构，以便与新的本地SDP结构进行对比。
  //    当设置新的本地SDP时，需要将拿到将要被替换的SDP结构的拥有权（通过move语义），
  //    要被替换的SDP结构可能会与old_local_description是同一个SDP结构，使得该
  //    SDP在本方法内一直是有效的，不会被销毁。
  // Take a reference to the old local description since it's used below to
  // compare against the new local description. When setting the new local
  // description, grab ownership of the replaced session description in case it
  // is the same as |old_local_description|, to keep it alive for the duration
  // of the method.
  // 3.1 使用临时变量old_local_description保存当前本地SDP结构
  //     也即pending_local_description_ && current_local_description_中的一个
  //     优先是pending_local_description_，why？
  const SessionDescriptionInterface* old_local_description =
      local_description();
  // 3.2 replaced_local_description用来获取将被替换的SDP结构的拥有权
  std::unique_ptr<SessionDescriptionInterface> replaced_local_description;
  // 3.3 根据新本地sdp类别做不同处理
  SdpType type = desc->GetType();
  // 3.3.1 若本地sdp类别是kAnswer，意味着本端协商已经结束。
  if (type == SdpType::kAnswer) {
    // 保存被替换的SDP结构
    replaced_local_description = pending_local_description_
                                      ? std::move(pending_local_description_)
                                      : std::move(current_local_description_);
    // 当前本地SDP设置为新SDP
    current_local_description_ = std::move(desc);
    // 当前本地pending sdp设置为空即可，因为已经是协商结束了，没必要pending了
    pending_local_description_ = nullptr;
    // 当前远端SDP设置为远端pending sdp，同样是因为已经是协商结束了，需要将pending
    // sdp应用上了
    current_remote_description_ = std::move(pending_remote_description_);
  // 3.3.2 若本地sdp类别是其他，意味着本端协商还未完毕。
  } else {
    // 由于协商还未完成，因此，被替换的只可能是本地pending sdp
    replaced_local_description = std::move(pending_local_description_);
    // 由于协商还未完成，pending当前新的本地sdp即可
    pending_local_description_ = std::move(desc);
  }
  // 3.4 此时，新的sdp要么是存储在pending_local_description_，
  ///    要么是current_local_description_
  // The session description to apply now must be accessed by
  // |local_description()|.
  RTC_DCHECK(local_description());
  // 4. 报告联播simulcast信息统计
  // Report statistics about any use of simulcast.
  ReportSimulcastApiVersion(kSimulcastVersionApplyLocalDescription,
                            *local_description()->description());
  // 5. 确定本端是呼叫方Caller，还是被叫方Callee
  if (!is_caller_) {
    // 如果远端SDP存在，说明远端SDP先被设置，因此，本端是被叫方Calle
    if (remote_description()) {
      // Remote description was applied first, so this PC is the callee.
      is_caller_ = false;
    // 近端SDP先被设置，因此，本端是呼叫方Caller
    } else {
      // Local description is applied first, so this PC is the caller.
      is_caller_ = true;
    }
  }
  // 6. 应用SDP到底层传输，根据mid以及相关描述信息创建底层传输Transport
  RTCError error = PushdownTransportDescription(cricket::CS_LOCAL, type);
  if (!error.ok()) {
    return error;
  }
  // 7. Unifiled plan
  //    更新上层Transceiver && DataChannel
  if (IsUnifiedPlan()) {
    RTCError error = UpdateTransceiversAndDataChannels(
        cricket::CS_LOCAL, *local_description(), old_local_description,
        remote_description());
    if (!error.ok()) {
      return error;
    }
  ....
  }
  ....
  return RTCError::OK();
}

RTCError PeerConnection::PushdownTransportDescription(
    cricket::ContentSource source,
    SdpType type) {
  RTC_DCHECK_RUN_ON(signaling_thread());
  if (source == cricket::CS_LOCAL) {
    const SessionDescriptionInterface* sdesc = local_description();
    RTC_DCHECK(sdesc);
    return transport_controller_->SetLocalDescription(type,
                                                      sdesc->description());
  } else {
    const SessionDescriptionInterface* sdesc = remote_description();
    RTC_DCHECK(sdesc);
    return transport_controller_->SetRemoteDescription(type,
                                                        sdesc->description());
  }
}

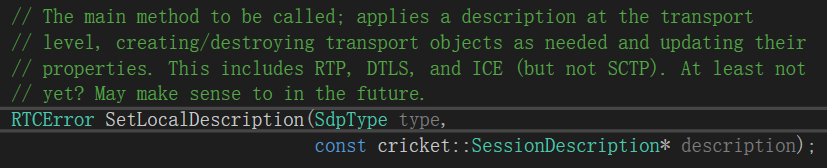

RTCError JsepTransportController::SetLocalDescription(
    SdpType type,
    const cricket::SessionDescription* description) {
  // 1. 传输层的方法都工作在network线程，包括SetLocalDescription也需要
  //    在网络线程中执行
  if (!network_thread_->IsCurrent()) {
    return network_thread_->Invoke<RTCError>(
        RTC_FROM_HERE, [=] { return SetLocalDescription(type, description); });
  }
  // 2. 设置ICE控制角色，本端是协商的主导者，还是对端是主导者
  if (!initial_offerer_.has_value()) {
    initial_offerer_.emplace(type == SdpType::kOffer);
    if (*initial_offerer_) {
      SetIceRole_n(cricket::ICEROLE_CONTROLLING);
    } else {
      SetIceRole_n(cricket::ICEROLE_CONTROLLED);
    }
  }
  // 3. 调用ApplyDescription_n
  return ApplyDescription_n(/*local=*/true, type, description);
}

RTCError JsepTransportController::ApplyDescription_n(
    bool local,
    SdpType type,
    const cricket::SessionDescription* description) {
  ...
  // 遍历sdp中所有ContentInfo
  for (const cricket::ContentInfo& content_info : description->contents()) {
    // 被拒绝的content是无效的，因此，我们不应该为其创建Transport；
    // 如果Content属于一个bundle，却又不是该bundle的第一个content，那么我们应该也要
    // 忽略该content，因为属于一个bundle的content共享一个Transport进行传输，在遍历
    // 该bundle的第一个content时会去创建这个共享的Transport。
    // Don't create transports for rejected m-lines and bundled m-lines."
    if (content_info.rejected ||
        (IsBundled(content_info.name) && content_info.name != *bundled_mid())) {
      continue;
    }
    // 创建JsepTransport
    error = MaybeCreateJsepTransport(local, content_info, *description);
    if (!error.ok()) {
      return error;
    }
  }
  ...
  return RTCError::OK();
}

bool IsBundled(const std::string& mid) const {
  return bundle_group_ && bundle_group_->HasContentName(mid);
}
absl::optional<std::string> bundled_mid() const {
  absl::optional<std::string> bundled_mid;
  if (bundle_group_ && bundle_group_->FirstContentName()) {
    bundled_mid = *(bundle_group_->FirstContentName());
  }
  return bundled_mid;
}

RTCError JsepTransportController::MaybeCreateJsepTransport(
    bool local,
    const cricket::ContentInfo& content_info,
    const cricket::SessionDescription& description) {
  // 1. 必须网络线程中执行
  RTC_DCHECK(network_thread_->IsCurrent());
  // 2. 如果对应的JsepTransport已经存在则返回就好了
  cricket::JsepTransport* transport = GetJsepTransportByName(content_info.name);
  if (transport) {
    return RTCError::OK();
  }
  // 3. 判断Content中的媒体描述中是否存在加密参数，这些参数是给SDES使用的
  //    而JsepTransportController.certificate_是给DTLS-SRTP使用的
  //    二者不可同时存在，因此，需要做下判断。
  const cricket::MediaContentDescription* content_desc =
      content_info.media_description();
  if (certificate_ && !content_desc->cryptos().empty()) {
    return RTCError(RTCErrorType::INVALID_PARAMETER,
                    "SDES and DTLS-SRTP cannot be enabled at the same time.");
  }
  // 4. 创建ice层的传输对象—>负责管理Candidates，联通性检测，收发数据包
  //    注意，使用的是共享智能指针保存的。
  rtc::scoped_refptr<webrtc::IceTransportInterface> ice =
      CreateIceTransport(content_info.name, /*rtcp=*/false);
  RTC_DCHECK(ice);
  // 5. 如果外界配置了使用DatagramTransport来传输（实质上采用QUIC协议）
  //    则会创建DatagramTransport。
  //    注意DatagramTransport层内置了ice层的传输对象，也就是说ice层的传输对象
  //    是其底层对象
  std::unique_ptr<DatagramTransportInterface> datagram_transport =
      MaybeCreateDatagramTransport(content_info, description, local);
  if (datagram_transport) {
    datagram_transport->Connect(ice->internal());
  }
  // 6. 创建dtls层的传输对象——>提供Dtls握手逻辑，密钥交换。
  //    注意其dtls内置了ice层的传输对象，其层次与DatagramTransport是平行关系
  std::unique_ptr<cricket::DtlsTransportInternal> rtp_dtls_transport =
      CreateDtlsTransport(content_info, ice->internal(), nullptr);
  std::unique_ptr<cricket::DtlsTransportInternal> rtcp_dtls_transport;
  std::unique_ptr<RtpTransport> unencrypted_rtp_transport;
  std::unique_ptr<SrtpTransport> sdes_transport;
  std::unique_ptr<DtlsSrtpTransport> dtls_srtp_transport;
  std::unique_ptr<RtpTransportInternal> datagram_rtp_transport;
  // 7. 如果RTCP与RTP不复用，并且媒体是使用RTP协议传输的，则需要创建属于传输RTCP的
  //    ice层的传输对象，以及dtls层的传输对象
  rtc::scoped_refptr<webrtc::IceTransportInterface> rtcp_ice;
  if (config_.rtcp_mux_policy !=
          PeerConnectionInterface::kRtcpMuxPolicyRequire &&
      content_info.type == cricket::MediaProtocolType::kRtp) {
    RTC_DCHECK(datagram_transport == nullptr);
    rtcp_ice = CreateIceTransport(content_info.name, /*rtcp=*/true);
    rtcp_dtls_transport =
        CreateDtlsTransport(content_info, rtcp_ice->internal(),
                            /*datagram_transport=*/nullptr);
  }
  // 8. 如果允许采用quic协议
  //    创建rtp层传输对象——>DatagramRtpTransport
  //    该对象使用dtls同层次的DatagramTransport来传输（基于quic协议）
  // Only create a datagram RTP transport if the datagram transport should be
  // used for RTP.
  if (datagram_transport && config_.use_datagram_transport) {
    // TODO(sukhanov): We use unencrypted RTP transport over DatagramTransport,
    // because MediaTransport encrypts. In the future we may want to
    // implement our own version of RtpTransport over MediaTransport, because
    // it will give us more control over things like:
    // - Fusing
    // - Rtp header compression
    // - Handling Rtcp feedback.
    RTC_LOG(LS_INFO) << "Creating UnencryptedRtpTransport, because datagram "
                        "transport is used.";
    RTC_DCHECK(!rtcp_dtls_transport);
    datagram_rtp_transport = std::make_unique<DatagramRtpTransport>(
        content_info.media_description()->rtp_header_extensions(),
        ice->internal(), datagram_transport.get());
  }
  // 9. 根据是否使用加密以及加密手段，来创建RTP层不同的传输对象
  // 9.1 不使用加密，则创建不使用加密手段的rtp层传输对象——>RtpTransport
  //    注意：仍然传递了dtls层的传输对象，但该对象可以不进行加密，直接将上层的
  //         包传递给ice层传输对象。
  if (config_.disable_encryption) {
    RTC_LOG(LS_INFO)
        << "Creating UnencryptedRtpTransport, becayse encryption is disabled.";
    unencrypted_rtp_transport = CreateUnencryptedRtpTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
  // 9.2 使用SDES加密，因为sdp中包含了加密参数
  //     创建使用SDES加密的rtp层传输对象——>SrtpTransport
  //     注意：传递了dtls层的传输对象，rtp层传输对象是其上层，但不使用dtls层的传输对象
  //          的握手，可以提高媒体建立链路的速度。
  } else if (!content_desc->cryptos().empty()) {
    sdes_transport = CreateSdesTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
    RTC_LOG(LS_INFO) << "Creating SdesTransport.";
  // 9.3 使用dtls加密
  //     创建使用dtls加密手段的rtp层传输对象——>DtlsSrtpTransport
  //     注意：传递了dtls层的传输对象，rtp层传输对象是其上层，使用dtls层的传输对象提供的
  //          握手和加密，建立安全通信速度慢。
  } else {
    RTC_LOG(LS_INFO) << "Creating DtlsSrtpTransport.";
    dtls_srtp_transport = CreateDtlsSrtpTransport(
        content_info.name, rtp_dtls_transport.get(), rtcp_dtls_transport.get());
  }
  // 10. 创建SCTP通道用于传输应用数据——>SctpTransport
  //     注意，其底层dtls层传输对象，使用dtls加密传输
  std::unique_ptr<cricket::SctpTransportInternal> sctp_transport;
  if (config_.sctp_factory) {
    sctp_transport =
        config_.sctp_factory->CreateSctpTransport(rtp_dtls_transport.get());
  }
  // 11. 如果使用datagram_transport来传输应用数据
  //     则data_channel_transport设置为其子类对象datagram_transport
  DataChannelTransportInterface* data_channel_transport = nullptr;
  if (config_.use_datagram_transport_for_data_channels) {
    data_channel_transport = datagram_transport.get();
  }
  // 12. 创建JsepTransport对象，来容纳之前创建的各层对象
  //     ice层：两个传输对象ice、rtcp_ice；
  //     dtls层/datagram层：rtp_dtls_transport、rtcp_dtls_transport/datagram_transport
  //     基于dtls层的rtp层：unencrypted_rtp_transport、sdes_transport、dtls_srtp_transport
  //     基于datagram层的rtp层：datagram_rtp_transport
  //     基于dtls层的应用数据传输层：sctp_transport
  //     基于datagram层的应用数据传输层：data_channel_transport
  std::unique_ptr<cricket::JsepTransport> jsep_transport =
      std::make_unique<cricket::JsepTransport>(
          content_info.name, certificate_, std::move(ice), std::move(rtcp_ice),
          std::move(unencrypted_rtp_transport), std::move(sdes_transport),
          std::move(dtls_srtp_transport), std::move(datagram_rtp_transport),
          std::move(rtp_dtls_transport), std::move(rtcp_dtls_transport),
          std::move(sctp_transport), std::move(datagram_transport),
          data_channel_transport);
  // 13. 绑定JsepTransport信号-JsepTransportController槽
  jsep_transport->rtp_transport()->SignalRtcpPacketReceived.connect(
      this, &JsepTransportController::OnRtcpPacketReceived_n);
  jsep_transport->SignalRtcpMuxActive.connect(
      this, &JsepTransportController::UpdateAggregateStates_n);
  jsep_transport->SignalDataChannelTransportNegotiated.connect(
      this, &JsepTransportController::OnDataChannelTransportNegotiated_n);
  // 14. 将创建的JsepTransport添加到JsepTransportController的成员上
  // 14.1 添加到mid_to_transport_
  SetTransportForMid(content_info.name, jsep_transport.get());
  // 14.2 添加到jsep_transports_by_name_
  jsep_transports_by_name_[content_info.name] = std::move(jsep_transport);
  // 15. 更新状态，进行ICE
  UpdateAggregateStates_n();
  return RTCError::OK();
}

JsepTransport::JsepTransport(...)
    : ...
      // 1. 创建SctpDataChannelTransport对象，利用SctpTransportInternal对象来实现
      //    DataChannelTransportInterface接口功能。
      sctp_data_channel_transport_(
          sctp_transport ? std::make_unique<webrtc::SctpDataChannelTransport>(
                                sctp_transport.get())
                          : nullptr),
                          ...) {
  // 2. 参数检查
  // 2.1 基础层——ice层和dtls层不可缺少
  RTC_DCHECK(ice_transport_);
  RTC_DCHECK(rtp_dtls_transport_);
  // 2.2 基础层——提供给rtcp的ice层和dtls层必须同时存在或者不存在
  // |rtcp_ice_transport_| must be present iff |rtcp_dtls_transport_| is
  // present.
  RTC_DCHECK_EQ((rtcp_ice_transport_ != nullptr),
                (rtcp_dtls_transport_ != nullptr));
  // 2.3 rtp层根据加密手段，三者只能存一
  // Verify the "only one out of these three can be set" invariant.
  if (unencrypted_rtp_transport_) {
    RTC_DCHECK(!sdes_transport);
    RTC_DCHECK(!dtls_srtp_transport);
  } else if (sdes_transport_) {
    RTC_DCHECK(!unencrypted_rtp_transport);
    RTC_DCHECK(!dtls_srtp_transport);
  } else {
    RTC_DCHECK(dtls_srtp_transport_);
    RTC_DCHECK(!unencrypted_rtp_transport);
    RTC_DCHECK(!sdes_transport);
  }
  // 3. 给sctp层传输配上dtls层传输对象
  if (sctp_transport_) {
    sctp_transport_->SetDtlsTransport(rtp_dtls_transport_);
  }

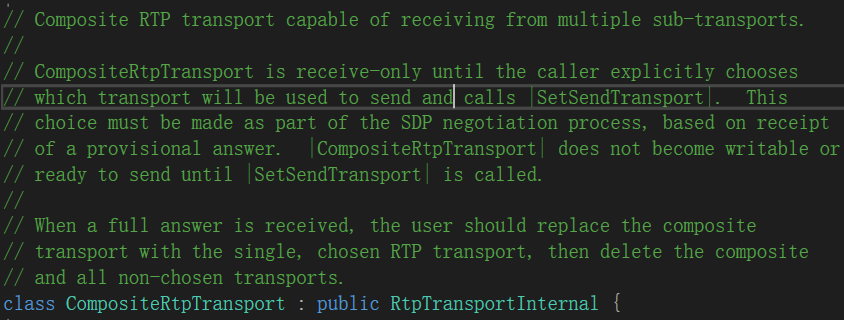

  // 4. 如果提供了基于Datagram的rtp层传输，并且也有默认的rtp传输(即上面三者之一)
  //    那么先创建组合了二者的CompositeRtpTransport，相当于是双核。
  //
  if (datagram_rtp_transport_ && default_rtp_transport()) {
    composite_rtp_transport_ = std::make_unique<webrtc::CompositeRtpTransport>(
        std::vector<webrtc::RtpTransportInternal*>{
            datagram_rtp_transport_.get(), default_rtp_transport()});
  }
  // 5. 如果提供了
  if (data_channel_transport_ && sctp_data_channel_transport_) {
    composite_data_channel_transport_ =
        std::make_unique<webrtc::CompositeDataChannelTransport>(
            std::vector<webrtc::DataChannelTransportInterface*>{
                data_channel_transport_, sctp_data_channel_transport_.get()});
  }
}

webrtc::DataChannelTransportInterface* data_channel_transport() const {
  rtc::CritScope scope(&accessor_lock_);
  if (composite_data_channel_transport_) {
    return composite_data_channel_transport_.get();
  } else if (sctp_data_channel_transport_) {
    return sctp_data_channel_transport_.get();
  }
  return data_channel_transport_;
}

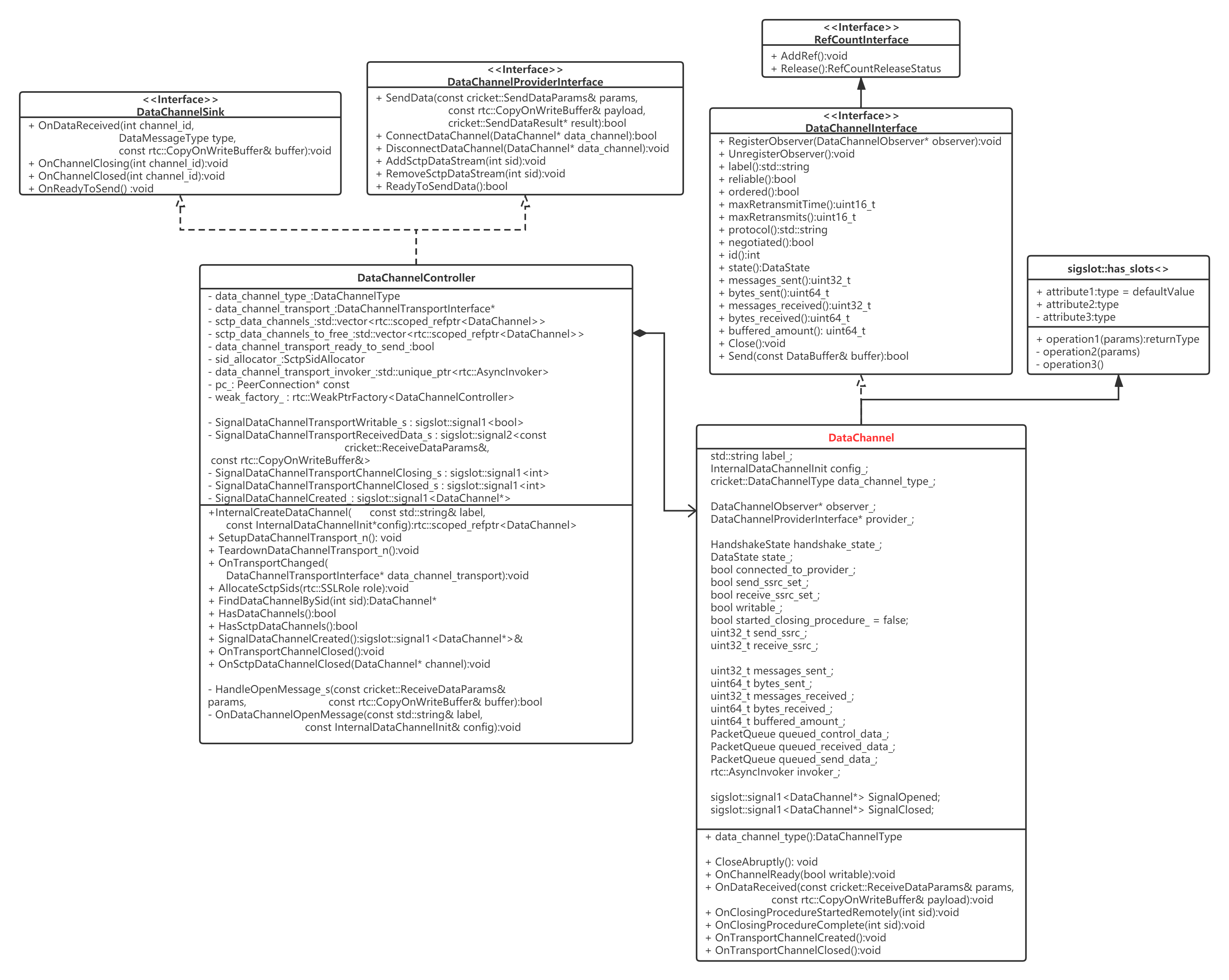

DataChannelObserver* observer_
DataChannelProviderInterface* provider_

std::string label_;
InternalDataChannelInit config_;
cricket::DataChannelType data_channel_type_;

DataState state_;
HandshakeState handshake_state_;
bool connected_to_provider_;
bool send_ssrc_set_;
bool receive_ssrc_set_;
uint32_t send_ssrc_;
uint32_t receive_ssrc_
bool writable_;
bool started_closing_procedure_ = false;

uint32_t messages_sent_;
uint64_t bytes_sent_;
uint32_t messages_received_;
uint64_t bytes_received_;
uint64_t buffered_amount_;
PacketQueue queued_control_data_;
PacketQueue queued_received_data_;
PacketQueue queued_send_data_;

sigslot::signal1<DataChannel*> SignalOpened;
sigslot::signal1<DataChannel*> SignalClosed;

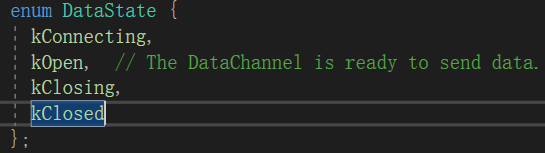

enum DataState {
  kConnecting,
  kOpen,  // The DataChannel is ready to send data.
  kClosing,
  kClosed
};

enum HandshakeState {
  kHandshakeInit,
  kHandshakeShouldSendOpen,
  kHandshakeShouldSendAck,
  kHandshakeWaitingForAck,
  kHandshakeReady
};

class PacketQueue final {
  public:
  size_t byte_count() const { return byte_count_; }
  bool Empty() const;
  std::unique_ptr<DataBuffer> PopFront();
  void PushFront(std::unique_ptr<DataBuffer> packet);
  void PushBack(std::unique_ptr<DataBuffer> packet);
  void Clear();
  void Swap(PacketQueue* other);
  private:
  std::deque<std::unique_ptr<DataBuffer>> packets_;
  size_t byte_count_ = 0;
};

void DataChannel::PacketQueue::PushFront(std::unique_ptr<DataBuffer> packet) {
  byte_count_ += packet->size();
  packets_.push_front(std::move(packet));
}

struct DataBuffer {
  DataBuffer(const rtc::CopyOnWriteBuffer& data, bool binary)
      : data(data), binary(binary) {}
  // For convenience for unit tests.
  explicit DataBuffer(const std::string& text)
      : data(text.data(), text.length()), binary(false) {}
  size_t size() const { return data.size(); }
  rtc::CopyOnWriteBuffer data;
  // Indicates if the received data contains UTF-8 or binary data.
  // Note that the upper layers are left to verify the UTF-8 encoding.
  // TODO(jiayl): prefer to use an enum instead of a bool.
  bool binary;
};
