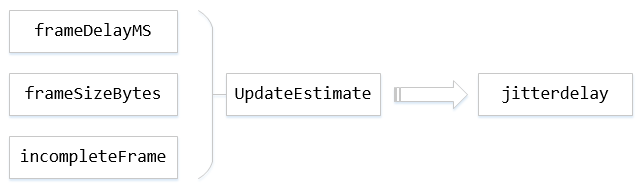

JitterDelay = theta[0] * (MaxFS – AvgFS) + [noiseStdDevs * sqrt(varNoise) – noiseStdDevOffset]

struct ContinuityInfo {
    // 包序列号.
    uint16_t seq_num = 0;
    // 是否为帧的第一个包.
    bool frame_begin = false;
    // 是否为帧的最后一个包.
    bool frame_end = false;
    // 这个槽是否已经被使用.
    bool used = false;
    // 标识当前包之前的所有包是否都已经被插入包缓存，也就是当前包之前的所有包是否连续.
    bool continuous = false;
    // 当前包是否已经用于创建一个帧.
    bool frame_created = false;
  };

// In the case of H264 we don't have a frame_begin bit (yes,
// |frame_begin| might be set to true but that is a lie). So instead
// we traverese backwards as long as we have a previous packet and
// the timestamp of that packet is the same as this one. This may cause
// the PacketBuffer to hand out incomplete frames.
// See: https://bugs.chromium.org/p/webrtc/issues/detail?id=7106

bool RtpDepacketizerH264::ParseFuaNalu(
    RtpDepacketizer::ParsedPayload* parsed_payload,
    const uint8_t* payload_data) {
  ……
  bool first_fragment = (payload_data[1] & kSBit) > 0;

bool PacketBuffer::InsertPacket(VCMPacket* packet) {
  std::vector<std::unique_ptr<RtpFrameObject>> found_frames;
  {
    rtc::CritScope lock(&crit_);
    // 当前包序列号
    uint16_t seq_num = packet->seqNum;
    // 当前包在包缓存(包括数据缓存和排序缓存)中的索引
    size_t index = seq_num % size_;

    // 如果是第一个包
    if (!first_packet_received_) {
      // 保存第一个包序列号
      first_seq_num_ = seq_num;
      // 接收到了第一个包状态置位
      first_packet_received_ = true;
    } else if (AheadOf(first_seq_num_, seq_num)) {  // 如果当前包比之前记录的第一个包first_seq_num_还老
      // 并且之前已经清理过第一个包序列号，说明已经至少成功解码过一帧，RtpVideoStreamReceiver::FrameDecoded
      // 会调用PacketBuffer::ClearTo(seq_num)，清理first_seq_num_之前的所有缓存，这个时候还来一个比first_seq_num_还
      // 老的包，就没有必要再留着了。
      if (is_cleared_to_first_seq_num_) {
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return false;
      }

      // 相反如果没有被清理过，则是有必要保留成第一个包的，比如发生了乱序。
      first_seq_num_ = seq_num;
    }

    // 如果这个槽被占用了
    if (sequence_buffer_[index].used) {
      // 如果序列号相等，则为重复包，删除负载并丢弃。
      if (data_buffer_[index].seqNum == packet->seqNum) {
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return true;
      }

      // 如果槽被占但是输入包和对应槽的包序列号不等，说明缓存满了，需要扩容。
      while (ExpandBufferSize() && sequence_buffer_[seq_num % size_].used) {
      }
      // 重新计算输入包索引.
      index = seq_num % size_;
      // 如果对应的槽还是被占用了，还是满，已经不行了，致命错误.
      if (sequence_buffer_[index].used) {
        delete[] packet->dataPtr;
        packet->dataPtr = nullptr;
        return false;
      }
    }
    // 如果没有错误，在index对应槽位填入当前包的信息
    sequence_buffer_[index].frame_begin = packet->is_first_packet_in_frame();  // 第一个包标识
    sequence_buffer_[index].frame_end = packet->is_last_packet_in_frame();       // 最后一个包标识
    sequence_buffer_[index].seq_num = packet->seqNum;                           // 序列号
    sequence_buffer_[index].continuous = false;                                   // 之前的包是否连续，这里初始为false，在FindFrames中置位
    sequence_buffer_[index].frame_created = false;                               // 是否已经用于创建一个帧，在FindFrames中置位
    sequence_buffer_[index].used = true;                                       // 槽位已经被占
    data_buffer_[index] = *packet;                                             // 存入数据缓存
    packet->dataPtr = nullptr;                                                   // 转移了指针的所有者

    // 更新丢包信息，检查收到当前包后是否有丢包导致的空洞，也就是不连续.
    UpdateMissingPackets(packet->seqNum);

    // 更新时间戳
    int64_t now_ms = clock_->TimeInMilliseconds();
    last_received_packet_ms_ = now_ms;
    if (packet->frameType == kVideoFrameKey)
      last_received_keyframe_packet_ms_ = now_ms;
    // 分析排序缓存，检查是否能够组装出完整的帧并返回.
    found_frames = FindFrames(seq_num);
  }

  // 如果有完整的帧则通过回调OnAssembledFrame上报RtpVideoStreamReceiver.
  for (std::unique_ptr<RtpFrameObject>& frame : found_frames)
    assembled_frame_callback_->OnAssembledFrame(std::move(frame));

  return true;
}

void PacketBuffer::PaddingReceived(uint16_t seq_num) {
  std::vector<std::unique_ptr<RtpFrameObject>> found_frames;
  {
    rtc::CritScope lock(&crit_);
    // 更新丢包信息，检查收到当前包后是否有丢包导致的空洞，也就是不连续.
    UpdateMissingPackets(seq_num);
    // 分析排序缓存，检查是否能够组装出完整的帧并返回.
    found_frames = FindFrames(static_cast<uint16_t>(seq_num + 1));
  }

  // 如果有完整的帧则通过回调OnAssembledFrame上报RtpVideoStreamReceiver.
  for (std::unique_ptr<RtpFrameObject>& frame : found_frames)
    assembled_frame_callback_->OnAssembledFrame(std::move(frame));
}

void PacketBuffer::UpdateMissingPackets(uint16_t seq_num) {
  // 如果最新插入的包序列号还未设置过，这里直接设置一次.
  if (!newest_inserted_seq_num_)
    newest_inserted_seq_num_ = seq_num;

  const int kMaxPaddingAge = 1000;
  // 如果当前包的序列号新于之前的最新包序列号，没有发生乱序
  if (AheadOf(seq_num, *newest_inserted_seq_num_)) {
    // 丢包缓存missing_packets_最大保存1000个包，这里得到当前包1000个包以前的序列号，
    // 也就差不多是丢包缓存里应该保存的最老的包.
    uint16_t old_seq_num = seq_num - kMaxPaddingAge;
    // 第一个>= old_seq_num的包的位置
    auto erase_to = missing_packets_.lower_bound(old_seq_num);
    // 删除丢包缓存里所有1000个包之前的所有包(如果有的话)
    missing_packets_.erase(missing_packets_.begin(), erase_to);

    // 如果最老的包的序列号都比当前最新包序列号新，那么更新一下当前最新包序列号
    if (AheadOf(old_seq_num, *newest_inserted_seq_num_))
      *newest_inserted_seq_num_ = old_seq_num;

    // 因为seq_num > newest_inserted_seq_num_，这里开始统计(newest_inserted_seq_num_, sum)之间的空洞.
    ++*newest_inserted_seq_num_;
    // 从newest_inserted_seq_num_开始，每个小于当前seq_num的包都进入丢包缓存，
    // 直到newest_inserted_seq_num_ == seq_num，也就是最新包的序列号变成了当前seq_num.
    while (AheadOf(seq_num, *newest_inserted_seq_num_)) {
      missing_packets_.insert(*newest_inserted_seq_num_);
      ++*newest_inserted_seq_num_;
    }
  } else {
    // 如果当前收到的包的序列号小于当前收到的最新包序列号，则从丢包缓存中删除(之前应该已经进入丢包缓存)
    missing_packets_.erase(seq_num);
  }
}

bool PacketBuffer::PotentialNewFrame(uint16_t seq_num) const {
  // 通过序列号获取缓存索引
  size_t index = seq_num % size_;
  // 上个包的索引
  int prev_index = index > 0 ? index - 1 : size_ - 1;
  // 如果当前包的槽位没有被占用，那么该包之前没有处理过，不连续.
  if (!sequence_buffer_[index].used)
    return false;
  // 如果当前包的槽位的序列号和当前包序列号不一致，不连续.
  if (sequence_buffer_[index].seq_num != seq_num)
    return false;
  // 如果当前包已经用于创建一个帧，不连续.
  if (sequence_buffer_[index].frame_created)
    return false;
  // 如果当前包的帧开始标识frame_begin为true，那么该包是帧第一个包，连续.
  if (sequence_buffer_[index].frame_begin)
    return true;
  // 如果上个包的槽位没有被占用，那么上个包之前没有处理过，不连续.
  if (!sequence_buffer_[prev_index].used)
    return false;
  // 如果上个包已经用于创建一个帧，不连续.
  if (sequence_buffer_[prev_index].frame_created)
    return false;
  // 如果上个包和当前包的序列号不连续，不连续.
  if (sequence_buffer_[prev_index].seq_num !=
      static_cast<uint16_t>(sequence_buffer_[index].seq_num - 1)) {
    return false;
  }
  // 如果上个包的时间戳和当前包的时间戳不相等，不连续.
  if (data_buffer_[prev_index].timestamp != data_buffer_[index].timestamp)
    return false;
  // 排除掉以上所有错误后，如果上个包连续，则可以认为当前包连续.
  if (sequence_buffer_[prev_index].continuous)
    return true;
  // 如果上个包不连续或者有其他错误，就返回不连续.
  return false;
}

std::vector<std::unique_ptr<RtpFrameObject>> PacketBuffer::FindFrames(
    uint16_t seq_num) {
  std::vector<std::unique_ptr<RtpFrameObject>> found_frames;

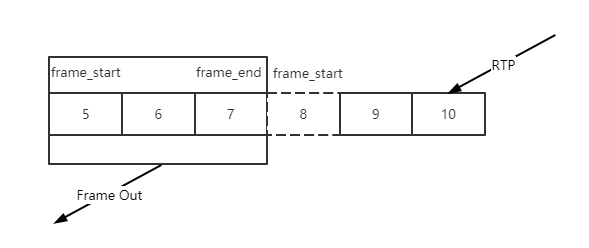

  // 基本算法：遍历所有连续包，先找到带有frame_end标识的帧最后一个包，然后向前回溯，
  // 找到帧的第一个包(VPX是frame_begin, H264是时间戳不连续)，组成完整一帧，

  // PotentialNewFrame(seq_num)检测seq_num之前的所有包是否连续.
  for (size_t i = 0; i < size_ && PotentialNewFrame(seq_num); ++i) {
    // 当前包的缓存索引
    size_t index = seq_num % size_;
    // 如果seq_num之前所有包连续，那么seq_num自己也连续.
    sequence_buffer_[index].continuous = true;

    // 找到了帧的最后一个包.
    if (sequence_buffer_[index].frame_end) {
      size_t frame_size = 0;
      int max_nack_count = -1;
      // 帧开始序列号，从帧尾部开始.
      uint16_t start_seq_num = seq_num;
      // 帧的最小接收时间，基本是帧第一个包的接收时间.
      int64_t min_recv_time = data_buffer_[index].receive_time_ms;
      // 帧的最大接收时间，基本是最后一个包的接收时间.
      int64_t max_recv_time = data_buffer_[index].receive_time_ms;

      // 开始向前回溯，找帧的第一个包.
      // 帧开始的索引，从帧尾部开始.
      int start_index = index;
      // 已经测试的包数.
      size_t tested_packets = 0;
      // 当前包的时间戳.
      int64_t frame_timestamp = data_buffer_[start_index].timestamp;

      // Identify H.264 keyframes by means of SPS, PPS, and IDR.
      bool is_h264 = data_buffer_[start_index].codec() == kVideoCodecH264;
      bool has_h264_sps = false;
      bool has_h264_pps = false;
      bool has_h264_idr = false;
      bool is_h264_keyframe = false;

      // 从帧尾部的包开始回溯.
      while (true) {
        // 测试包数++
        ++tested_packets;
        // 累加帧大小
        frame_size += data_buffer_[start_index].sizeBytes;
        // 获取最大重传数
        max_nack_count =
            std::max(max_nack_count, data_buffer_[start_index].timesNacked);
        // 当前包现在被标识为已经用于创建一个帧.
        sequence_buffer_[start_index].frame_created = true;
        // 获取最小接收时间
        min_recv_time =
            std::min(min_recv_time, data_buffer_[start_index].receive_time_ms);
        // 获取最大接收时间
        max_recv_time =
            std::max(max_recv_time, data_buffer_[start_index].receive_time_ms);
        // 如果是VPX，并且找到了frame_begin标识的第一个包，一帧完整，回溯结束.
        if (!is_h264 && sequence_buffer_[start_index].frame_begin)
          break;
        // 如果是H264.
        if (is_h264 && !is_h264_keyframe) {
          // 先检测是否关键帧，从数据缓存获取H264头.
          const auto* h264_header = absl::get_if<RTPVideoHeaderH264>(
              &data_buffer_[start_index].video_header.video_type_header);
          if (!h264_header || h264_header->nalus_length >= kMaxNalusPerPacket)
            return found_frames;
          // 遍历所有NALU，注意WebRTC所有IDR帧前面都会带SPS、PPS.
          for (size_t j = 0; j < h264_header->nalus_length; ++j) {
            if (h264_header->nalus[j].type == H264::NaluType::kSps) {
              has_h264_sps = true;  // 找到了SPS
            } else if (h264_header->nalus[j].type == H264::NaluType::kPps) {
              has_h264_pps = true;  // 找到了PPS
            } else if (h264_header->nalus[j].type == H264::NaluType::kIdr) {
              has_h264_idr = true;  // 找到了IDR
            }
          }
          // 默认sps_pps_idr_is_h264_keyframe_为false，也就是说只需要有IDR帧就认为是关键帧，
          // 而不需要等待SPS、PPS完整.
          if ((sps_pps_idr_is_h264_keyframe_ && has_h264_idr && has_h264_sps &&
               has_h264_pps) ||
              (!sps_pps_idr_is_h264_keyframe_ && has_h264_idr)) {
            is_h264_keyframe = true;
          }
        }
        // 如果检测包数已经达到缓存容量，中止.
        if (tested_packets == size_)
          break;
        // 搜索指针向前移动一个包.
        start_index = start_index > 0 ? start_index - 1 : size_ - 1;

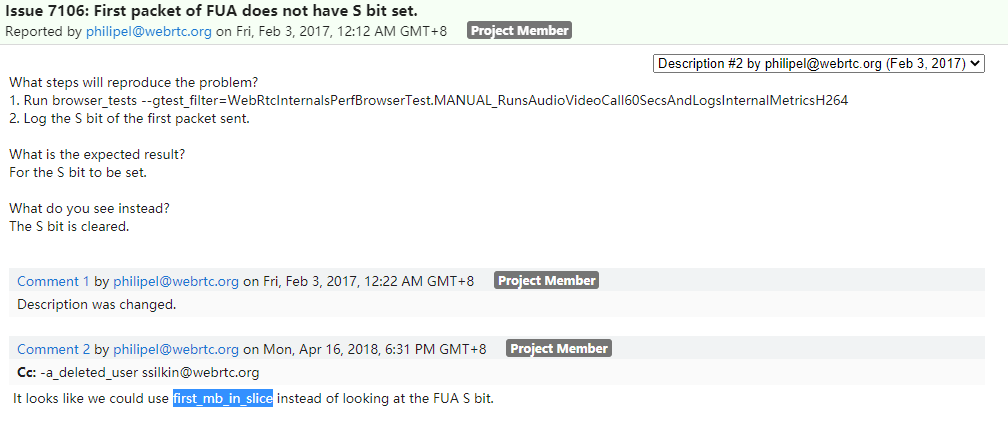

        // In the case of H264 we don't have a frame_begin bit (yes,
        // |frame_begin| might be set to true but that is a lie). So instead
        // we traverese backwards as long as we have a previous packet and
        // the timestamp of that packet is the same as this one. This may cause
        // the PacketBuffer to hand out incomplete frames.
        // See: https://bugs.chromium.org/p/webrtc/issues/detail?id=7106
        // 这里保留了注释，可以看看H264不使用frame_begin的原因，实际上应该也可以.
        if (is_h264 &&                                                     // 如果是H264
            (!sequence_buffer_[start_index].used ||                         // 如果该槽位未被占用，发现断层.
             data_buffer_[start_index].timestamp != frame_timestamp)) {  // 如果时间戳不一致，发现断层.
          break;                                                         // 结束回溯.
        }
        // 如果仍然在一帧内，开始包序列号--.
        --start_seq_num;
      }
      // 到这里帧的开始和结束位置已经搜索完毕，可以开始组帧.

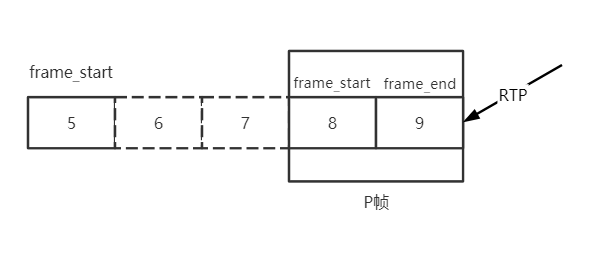

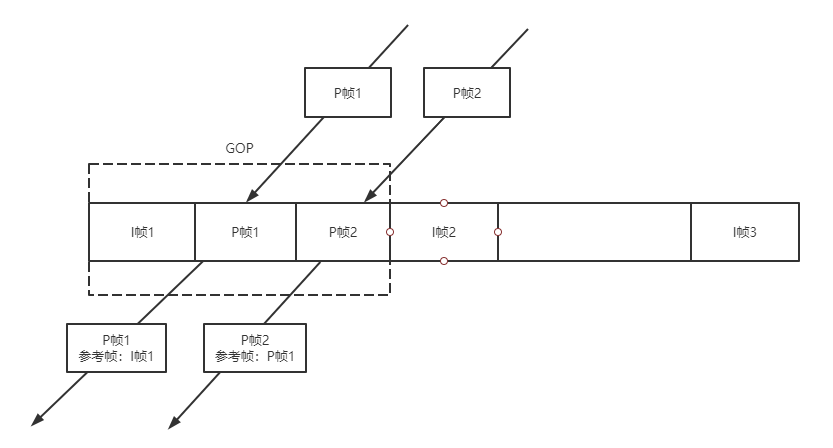

      // 但是对H264 P帧，需要做另外的特殊处理，虽然P帧可能已经完整，
      // 但是如果该P帧前面仍然有丢包空洞，不会立刻向后传递，会等待直到所有空洞被填满，
      // 因为P帧必须有参考帧才能正确解码。
      if (is_h264) {
        // Warn if this is an unsafe frame.
        if (has_h264_idr && (!has_h264_sps || !has_h264_pps)) {
          RTC_LOG(LS_WARNING)
              << "Received H.264-IDR frame "
              << "(SPS: " << has_h264_sps << ", PPS: " << has_h264_pps
              << "). Treating as "
              << (sps_pps_idr_is_h264_keyframe_ ? "delta" : "key")
              << " frame since WebRTC-SpsPpsIdrIsH264Keyframe is "
              << (sps_pps_idr_is_h264_keyframe_ ? "enabled." : "disabled");
        }
        // 设置数据缓存中的关键帧标识.
        const size_t first_packet_index = start_seq_num % size_;
        RTC_CHECK_LT(first_packet_index, size_);
        if (is_h264_keyframe) {
          data_buffer_[first_packet_index].frameType = kVideoFrameKey;
        } else {
          data_buffer_[first_packet_index].frameType = kVideoFrameDelta;
        }

        // missing_packets_.upper_bound(start_seq_num) != missing_packets_.begin()
        // 这个条件是说在丢包的列表里搜索>start_seq_num(帧开始序列号)的第一个位置，
        // 发现其不等于丢包列表的开头, 有些丢的包序列号小于start_seq_num, 也就是说P帧前面有丢包空洞,
        // 举例1：
        // missing_packets_ = { 3, 4, 6}, start_seq_num = 5, missing_packets_.upper_bound(start_seq_num)==6
        // 作为一帧开始位置的序列号5，前面还有3、4这两个包还未收到，那么对P帧来说，虽然完整，但是向后传递也可能是没有意义的,
        // 所以这里又清除了frame_created状态，先继续缓存，等待丢包的空洞填满.
        // 举例2：
        // missing_packets_ = { 10, 16, 17}, start_seq_num = 3, missing_packets_.upper_bound(start_seq_num)==10
        // 作为一帧开始位置的序列号3，前面并没有丢包，并且帧完整，那么可以向后传递.
        if (!is_h264_keyframe && missing_packets_.upper_bound(start_seq_num) !=
                                     missing_packets_.begin()) {
          uint16_t stop_index = (index + 1) % size_;
          while (start_index != stop_index) {
            sequence_buffer_[start_index].frame_created = false;
            start_index = (start_index + 1) % size_;
          }
          // 返回找到的所有完整帧.
          return found_frames;
        }
      }
      // 马上要组帧了，清除丢包列表中到帧开始位置之前的丢包.
      // 对H264 P帧来说，如果P帧前面有空洞不会运行到这里，在上面已经解释.
      // 对I帧来说，可以丢弃前面的丢包信息(?).
      missing_packets_.erase(missing_packets_.begin(),
                             missing_packets_.upper_bound(seq_num));
      // 组一个帧.
      found_frames.emplace_back(
          new RtpFrameObject(this, start_seq_num, seq_num, frame_size,
                             max_nack_count, min_recv_time, max_recv_time));
    }  // if (sequence_buffer_[index].frame_end)

    // 向后扩大搜索的范围，假设丢包、乱序，当前包的seq_num刚好填补了之前的一个空洞，
    // 该包并不能检测出一个完整帧，需要这里向后移动指针到frame_end再进行回溯，直到检测出完整帧，
    // 这里会继续检测之前缓存的因为前面有空洞而没有向后传递的P帧。
    ++seq_num;
  }
  // 返回找到的所有完整帧.
  return found_frames;
}

RtpFrameReferenceFinder::FrameDecision
RtpFrameReferenceFinder::ManageFramePidOrSeqNum(RtpFrameObject* frame,
                                                int picture_id) {
  // 对H264，在没有开启generic的情况下，picture_id肯定是kNoPictureId.
  if (picture_id != kNoPictureId) {
    frame->id.picture_id = unwrapper_.Unwrap(picture_id);                   // 设置PID
    frame->num_references = frame->frame_type() == kVideoFrameKey ? 0 : 1;  // I帧自参考，P帧参考上一帧
    frame->references[0] = frame->id.picture_id - 1;                        // 参考帧是上一帧
    return kHandOff;
  }

  // 如果是关键帧，插入GOP表，key是last_seq_num，初始value是{last_seq_num, last_seq_num}
  if (frame->frame_type() == kVideoFrameKey) {
    last_seq_num_gop_.insert(std::make_pair(
        frame->last_seq_num(),
        std::make_pair(frame->last_seq_num(), frame->last_seq_num())));
  }

  // 如果GOP表空，那么就不可能找到参考帧，先缓存.
  if (last_seq_num_gop_.empty())
    return kStash;

  // 删除较老的关键帧(PID小于last_seq_num - 100), 但是至少保留一个。
  auto clean_to = last_seq_num_gop_.lower_bound(frame->last_seq_num() - 100);
  for (auto it = last_seq_num_gop_.begin();
       it != clean_to && last_seq_num_gop_.size() > 1;) {
    it = last_seq_num_gop_.erase(it);
  }

  // 在GOP表中搜索第一个比当前帧新的关键帧。
  auto seq_num_it = last_seq_num_gop_.upper_bound(frame->last_seq_num());
  // 如果搜索到的关键帧是最老的，说明当前帧比最老的关键帧还老，无法设置参考帧，丢弃.
  if (seq_num_it == last_seq_num_gop_.begin()) {
    RTC_LOG(LS_WARNING) << "Generic frame with packet range ["
                        << frame->first_seq_num() << ", "
                        << frame->last_seq_num()
                        << "] has no GoP, dropping frame.";
    return kDrop;
  }

  // 如果搜索到的关键帧不是最老的，那么搜索到的关键帧的上一个关键帧所在的GOP里应该可以找到参考帧，
  // 如果当前帧是关键帧，seq_num_it为end(), seq_num_it--则为最后一个关键帧.
  seq_num_it--;

  // 保证帧的连续，不连续则先缓存.
  // 当前GOP的最新一个帧的最后一个包的序列号.
  uint16_t last_picture_id_gop = seq_num_it->second.first;
  // 当前GOP的最新包的序列号，可能是last_picture_id_gop, 也可能是填充包.
  uint16_t last_picture_id_with_padding_gop = seq_num_it->second.second;
  // P帧的连续性检查.
  if (frame->frame_type() == kVideoFrameDelta) {
    // 获得P帧第一个包的上个包的序列号.
    uint16_t prev_seq_num = frame->first_seq_num() - 1;
    // 如果P帧第一个包的上个包的序列号与当前GOP的最新包的序列号不等，说明不连续，先缓存.
    if (prev_seq_num != last_picture_id_with_padding_gop)
      return kStash;
  }
  // 现在这个帧是连续的了.
  RTC_DCHECK(AheadOrAt(frame->last_seq_num(), seq_num_it->first));
  // 获得当前帧的最后一个包的序列号，设置为初始PID，后面还会设置一次Unwrap.
  frame->id.picture_id = frame->last_seq_num();
  // 设置帧的参考帧数，P帧才需要1个参考帧.
  frame->num_references = frame->frame_type() == kVideoFrameDelta;
  // 设置参考帧为当前GOP的最新一个帧的最后一个包的序列号，
  // 既然该帧是连续的，那么其参考帧自然也就是上个帧.
  frame->references[0] = rtp_seq_num_unwrapper_.Unwrap(last_picture_id_gop);
  // 如果当前帧比当前GOP的最新一个帧的最后一个包还新，则更新GOP的最新一个帧的最后一个包(first)
  // 以及GOP的最新包(second).
  if (AheadOf<uint16_t>(frame->id.picture_id, last_picture_id_gop)) {
    seq_num_it->second.first = frame->id.picture_id;   // 更新GOP的最新一个帧的最后一个包
    seq_num_it->second.second = frame->id.picture_id;  // 更新GOP的最新包，可能被填充包更新.
  }
  // 更新最新PID，H264无用.
  last_picture_id_ = frame->id.picture_id;
  // 更新填充包状态.
  UpdateLastPictureIdWithPadding(frame->id.picture_id);
  // 设置当前帧的PID为Unwrap形式.
  frame->id.picture_id = rtp_seq_num_unwrapper_.Unwrap(frame->id.picture_id);
  // 该包已经设置了参考帧且连续，可以向后传递了.
  return kHandOff;
}

void RtpFrameReferenceFinder::PaddingReceived(uint16_t seq_num) {
  rtc::CritScope lock(&crit_);
  // 只保留最近100个填充包.
  auto clean_padding_to =
      stashed_padding_.lower_bound(seq_num - kMaxPaddingAge);
  stashed_padding_.erase(stashed_padding_.begin(), clean_padding_to);
  // 缓存填充包.
  stashed_padding_.insert(seq_num);
  // 更新填充包状态.
  UpdateLastPictureIdWithPadding(seq_num);
  // 尝试处理一次缓存的P帧，有可能序列号连续了.
  RetryStashedFrames();
}

void RtpFrameReferenceFinder::UpdateLastPictureIdWithPadding(uint16_t seq_num) {
  // 获取GOP表第一个比seq_num新的I帧.
  auto gop_seq_num_it = last_seq_num_gop_.upper_bound(seq_num);

  // 如果第一个比seq_num新的I帧在GOP表首，说明seq_num已经很老了，不处理.
  if (gop_seq_num_it == last_seq_num_gop_.begin())
    return;

  // 获取seq_num所在的GOP.
  --gop_seq_num_it;

  // 计算GOP最新包的下一个连续的序列号，看看是否可以在缓存的填充包中查到。
  uint16_t next_seq_num_with_padding = gop_seq_num_it->second.second + 1;
  // 查找填充包缓存中第一个大于等于next_seq_num_with_padding的位置.
  auto padding_seq_num_it =
      stashed_padding_.lower_bound(next_seq_num_with_padding);

  // 如果连续的序列号都能在缓存的填充包中查到，更新GOP最新包序列号，并从填充包缓存中清除.
  while (padding_seq_num_it != stashed_padding_.end() &&
         *padding_seq_num_it == next_seq_num_with_padding) {
    // 更新GOP最新包的序列号为连续的填充包序列号.
    gop_seq_num_it->second.second = next_seq_num_with_padding;
    // 下个连续的填充包序列号.
    ++next_seq_num_with_padding;
    // 删除填充包缓存的当前项，指向下一个.
    padding_seq_num_it = stashed_padding_.erase(padding_seq_num_it);
  }

  // 在某种情况下，这个流长时间连续但是没有获得新的关键帧，当前的帧可能比上个关键帧
  // 更老(例如发生了序列号wrapping), 为防止这种情况不时的更新这个关键帧的PID。
  // 如果该GOP的关键帧的最后一个包的序列号(PID)早于当前包10000，更新该关键帧PID.
  if (ForwardDiff(gop_seq_num_it->first, seq_num) > 10000) {
    RTC_DCHECK_EQ(1ul, last_seq_num_gop_.size());
    // 设置新的PID为当前帧seq_num.
    last_seq_num_gop_[seq_num] = gop_seq_num_it->second;
    // 删除旧的项.
    last_seq_num_gop_.erase(gop_seq_num_it);
  }
}

void RtpFrameReferenceFinder::RetryStashedFrames() {
  bool complete_frame = false;
  do {
    complete_frame = false;
    // 遍历缓存的帧
    for (auto frame_it = stashed_frames_.begin();
         frame_it != stashed_frames_.end();) {
      // 调用ManageFramePidOrSeqNum来处理一个缓存帧，检查是否可以输出带参考帧的连续的帧.
      FrameDecision decision = ManageFrameInternal(frame_it->get());
      // 检查处理结果
      switch (decision) {
        case kStash:    // 仍然不连续，或者没有参考帧.
          ++frame_it;   // 检查下一个缓存帧.
          break;
        case kHandOff:  // 找到了一个带参考帧的连续的帧.
          complete_frame = true;
          // 通过OnCompleteFrame回调输出.
          frame_callback_->OnCompleteFrame(std::move(*frame_it));
          RTC_FALLTHROUGH();
        case kDrop:    // 无论kHandOff、kDrop都可以从缓存中删除了.
          frame_it = stashed_frames_.erase(frame_it);  // 删除并检查下一个缓存帧.
      }
    }
  } while (complete_frame);  // 如果能持续找到带参考帧的连续的帧则继续.
}

int64_t FrameBuffer::InsertFrame(std::unique_ptr<EncodedFrame> frame) {
  const VideoLayerFrameId& id = frame->id;

  rtc::CritScope lock(&crit_);
  // 上一个连续的帧的PID
  int64_t last_continuous_picture_id =
      !last_continuous_frame_ ? -1 : last_continuous_frame_->picture_id;
  // 检查参考帧是否合法，不合法则返回.
  if (!ValidReferences(*frame)) {
    RTC_LOG(LS_WARNING) << "Frame with (picture_id:spatial_id) ("
                        << id.picture_id << ":"
                        << static_cast<int>(id.spatial_layer)
                        << ") has invalid frame references, dropping frame.";
    return last_continuous_picture_id;
  }
  // 如果帧缓存溢出了.
  if (frames_.size() >= kMaxFramesBuffered) {
    // 如果是关键帧.
    if (frame->is_keyframe()) {
      RTC_LOG(LS_WARNING) << "Inserting keyframe (picture_id:spatial_id) ("
                          << id.picture_id << ":"
                          << static_cast<int>(id.spatial_layer)
                          << ") but buffer is full, clearing"
                          << " buffer and inserting the frame.";
      // 清理一下，继续从当前帧开始解码.
      ClearFramesAndHistory();
    } else {
      // 如果不是关键帧就返回.
      RTC_LOG(LS_WARNING) << "Frame with (picture_id:spatial_id) ("
                          << id.picture_id << ":"
                          << static_cast<int>(id.spatial_layer)
                          << ") could not be inserted due to the frame "
                          << "buffer being full, dropping frame.";
      return last_continuous_picture_id;
    }
  }
  // 最近解码的帧PID(H264是帧最后一个包序列号).
  auto last_decoded_frame = decoded_frames_history_.GetLastDecodedFrameId();
  // 最近解码的帧时间戳.
  auto last_decoded_frame_timestamp =
      decoded_frames_history_.GetLastDecodedFrameTimestamp();
  // 如果当前帧的PID < 最近解码帧的PID，有可能是乱序，也有可能是序列号wrapping.
  if (last_decoded_frame && id <= *last_decoded_frame) {
    // 虽然PID更小，但是时间戳更加新，可能是编码器重置或者序列号wrapping，
    // 假如是关键帧的话还是可以继续处理的.
    if (AheadOf(frame->Timestamp(), *last_decoded_frame_timestamp) &&
        frame->is_keyframe()) {
      // If this frame has a newer timestamp but an earlier picture id then we
      // assume there has been a jump in the picture id due to some encoder
      // reconfiguration or some other reason. Even though this is not according
      // to spec we can still continue to decode from this frame if it is a
      // keyframe.
      RTC_LOG(LS_WARNING)
          << "A jump in picture id was detected, clearing buffer.";
      // 清理一下，继续从当前帧开始解码.
      ClearFramesAndHistory();
      last_continuous_picture_id = -1;
    } else {
      // 如果是真的乱序，而且不是关键帧，丢弃.
      RTC_LOG(LS_WARNING) << "Frame with (picture_id:spatial_id) ("
                          << id.picture_id << ":"
                          << static_cast<int>(id.spatial_layer)
                          << ") inserted after frame ("
                          << last_decoded_frame->picture_id << ":"
                          << static_cast<int>(last_decoded_frame->spatial_layer)
                          << ") was handed off for decoding, dropping frame.";
      return last_continuous_picture_id;
    }
  }

  // 假如序列号发生了很大跳动，清理.
  if (!frames_.empty() && id < frames_.begin()->first &&
      frames_.rbegin()->first < id) {
    RTC_LOG(LS_WARNING)
        << "A jump in picture id was detected, clearing buffer.";
    // 清理一下，继续从当前帧开始解码.
    ClearFramesAndHistory();
    last_continuous_picture_id = -1;
  }
  // 尝试申请帧缓存的槽位.
  auto info = frames_.emplace(id, FrameInfo()).first;
  // 如果是重复帧，返回.
  if (info->second.frame) {
    RTC_LOG(LS_WARNING) << "Frame with (picture_id:spatial_id) ("
                        << id.picture_id << ":"
                        << static_cast<int>(id.spatial_layer)
                        << ") already inserted, dropping frame.";
    return last_continuous_picture_id;
  }
  // 更新帧信息，主要是设置帧的还未连续的参考帧数量，并建立被参考帧与参考他的帧之间的参考关系，
  // 用于当被参考帧有效时，更新参考他的帧的参考帧数量(为0则连续)以及可解码状态.
  if (!UpdateFrameInfoWithIncomingFrame(*frame, info))
    return last_continuous_picture_id;
  // 如果不是被重传的，可以用于计算时延.
  // timing_用于计算很多时延指标以及帧的预期渲染时间.
  if (!frame->delayed_by_retransmission())
    timing_->IncomingTimestamp(frame->Timestamp(), frame->ReceivedTime());
  // 保存帧到帧缓存
  info->second.frame = std::move(frame);
  // 如果该帧的未连续的参考帧数量为0，那么他本身已经连续，例如I帧，或者当前P帧参考的上个P帧已经收到.
  if (info->second.num_missing_continuous == 0) {
    // 设置"连续"状态
    info->second.continuous = true;
    // 传播"连续"状态，也就是遍历参考当前帧的所有帧，让他们num_missing_continuous--
    PropagateContinuity(info);
    // 返回的最后连续帧PID
    last_continuous_picture_id = last_continuous_frame_->picture_id;
    // 现在肯定有"连续"帧，通知解码线程干活.
    new_continuous_frame_event_.Set();
  }
  // 返回最后连续帧PID
  return last_continuous_picture_id;
}

bool FrameBuffer::UpdateFrameInfoWithIncomingFrame(const EncodedFrame& frame,
                                                   FrameMap::iterator info) {
  TRACE_EVENT0("webrtc", "FrameBuffer::UpdateFrameInfoWithIncomingFrame");
  const VideoLayerFrameId& id = frame.id;
  // 最新解码的帧.
  auto last_decoded_frame = decoded_frames_history_.GetLastDecodedFrameId();
  RTC_DCHECK(!last_decoded_frame || *last_decoded_frame < info->first);

  struct Dependency {
    VideoLayerFrameId id;  // PID
    bool continuous;       // 只有未连续参考帧数量为0，才为“连续”
  };
  std::vector<Dependency> not_yet_fulfilled_dependencies;

  // 遍历当前帧的所有参考帧
  for (size_t i = 0; i < frame.num_references; ++i) {
    // 参考帧
    VideoLayerFrameId ref_key(frame.references[i], frame.id.spatial_layer);
    // 如果当前帧的参考帧与最新的解码帧比相等或者更早，可能是被解过码，也有可能是乱序。
    if (last_decoded_frame && ref_key <= *last_decoded_frame) {
      // 如果这个参考帧还未解码(乱序)，那么这个参考帧将不再有机会被解码, 那么当前帧也无法被解码，
      // 返回失败，反之如果这个参考帧已经被解码了，则属于正常状态。
      if (!decoded_frames_history_.WasDecoded(ref_key)) {
        int64_t now_ms = clock_->TimeInMilliseconds();
        if (last_log_non_decoded_ms_ + kLogNonDecodedIntervalMs < now_ms) {
          RTC_LOG(LS_WARNING)
              << "Frame with (picture_id:spatial_id) (" << id.picture_id << ":"
              << static_cast<int>(id.spatial_layer)
              << ") depends on a non-decoded frame more previous than"
              << " the last decoded frame, dropping frame.";
          last_log_non_decoded_ms_ = now_ms;
        }
        return false;
      }
    } else {
      // 如果如果当前帧的参考帧比最新的解码帧更晚，那么该参考帧可能还未连续.
      auto ref_info = frames_.find(ref_key);
      // 检查一下该参考帧是否已经连续.
      bool ref_continuous =
          ref_info != frames_.end() && ref_info->second.continuous;
      // 该参考帧填入当前帧还未满足的依赖表.
      not_yet_fulfilled_dependencies.push_back({ref_key, ref_continuous});
    }
  }
  // 未连续参考帧计数器，初始化为当前帧还未满足的依赖表大小.
  info->second.num_missing_continuous = not_yet_fulfilled_dependencies.size();
  // 未解码参考帧计数器，初始化为当前帧还未满足的依赖表大小.
  info->second.num_missing_decodable = not_yet_fulfilled_dependencies.size();

  // 遍历当前帧还未满足的依赖表
  for (const Dependency& dep : not_yet_fulfilled_dependencies) {
    // 如果某个参考帧已经连续
    if (dep.continuous)
      // 未连续参考帧计数器-1
      --info->second.num_missing_continuous;
    // 建立参考帧->依赖帧反向关系，用于传播状态.
    frames_[dep.id].dependent_frames.push_back(id);
  }

  return true;
}

FrameBuffer::ReturnReason FrameBuffer::NextFrame(
    int64_t max_wait_time_ms,
    std::unique_ptr<EncodedFrame>* frame_out,
    bool keyframe_required) {
  TRACE_EVENT0("webrtc", "FrameBuffer::NextFrame");
  // max_wait_time_ms为最大等待时间间隔，latest_return_time_ms为最晚返回的绝对时间。
  int64_t latest_return_time_ms =
      clock_->TimeInMilliseconds() + max_wait_time_ms;
  int64_t wait_ms = max_wait_time_ms;
  int64_t now_ms = 0;

  do {
    // 当前时间
    now_ms = clock_->TimeInMilliseconds();
    {
      rtc::CritScope lock(&crit_);
      // 清除事件状态
      new_continuous_frame_event_.Reset();
      if (stopped_)
        return kStopped;

      wait_ms = max_wait_time_ms;

      // 清除待解码帧列表
      frames_to_decode_.clear();

      // 遍历所有已经连续的帧.
      for (auto frame_it = frames_.begin();
           frame_it != frames_.end() &&
           frame_it->first <= last_continuous_frame_;
           ++frame_it) {
        // 如果帧还未连续，或者其有参考帧还未解码，忽略.
        if (!frame_it->second.continuous ||
            frame_it->second.num_missing_decodable > 0) {
          continue;
        }
        // 如果可以解码，取到待解码帧.
        EncodedFrame* frame = frame_it->second.frame.get();
        // 如果需要关键帧，但当前帧不是关键帧(默认keyframe_required=false), 忽略.
        if (keyframe_required && !frame->is_keyframe())
          continue;
        // 之前最新解码的帧时间戳.
        auto last_decoded_frame_timestamp =
            decoded_frames_history_.GetLastDecodedFrameTimestamp();

        // 如果待解码帧早于之前最新解码的帧时间戳，乱序，不处理.
        if (last_decoded_frame_timestamp &&
            AheadOf(*last_decoded_frame_timestamp, frame->Timestamp())) {
          continue;
        }

        // VPX，不处理.
        if (frame->inter_layer_predicted) {
          continue;
        }

        // 收集超帧，H264只有一个完整帧，current_superframe.size()为1.
        std::vector<FrameMap::iterator> current_superframe;
        current_superframe.push_back(frame_it);
        // H264为true，只有一层.
        bool last_layer_completed =
            frame_it->second.frame->is_last_spatial_layer;
        FrameMap::iterator next_frame_it = frame_it;
        while (true) {
          // 这里面是VPX的逻辑，忽略.
          ++next_frame_it;
          if (next_frame_it == frames_.end() ||
              next_frame_it->first.picture_id != frame->id.picture_id ||
              !next_frame_it->second.continuous) {
            break;
          }
          // Check if the next frame has some undecoded references other than
          // the previous frame in the same superframe.
          size_t num_allowed_undecoded_refs =
              (next_frame_it->second.frame->inter_layer_predicted) ? 1 : 0;
          if (next_frame_it->second.num_missing_decodable >
              num_allowed_undecoded_refs) {
            break;
          }
          // All frames in the superframe should have the same timestamp.
          if (frame->Timestamp() != next_frame_it->second.frame->Timestamp()) {
            RTC_LOG(LS_WARNING)
                << "Frames in a single superframe have different"
                   " timestamps. Skipping undecodable superframe.";
            break;
          }
          current_superframe.push_back(next_frame_it);
          last_layer_completed =
              next_frame_it->second.frame->is_last_spatial_layer;
        }
        // Check if the current superframe is complete.
        // TODO(bugs.webrtc.org/10064): consider returning all available to
        // decode frames even if the superframe is not complete yet.
        if (!last_layer_completed) {
          continue;
        }
        // 待解码帧列表只有1个.
        frames_to_decode_ = std::move(current_superframe);
        // 如果未设置过渲染时间则设置渲染时间.
        if (frame->RenderTime() == -1) {
          frame->SetRenderTime(
              timing_->RenderTimeMs(frame->Timestamp(), now_ms));
        }
        // 检查可以继续等待的剩余时间.
        wait_ms = timing_->MaxWaitingTime(frame->RenderTime(), now_ms);

        // wait_ms = frame->RenderTime() - now_ms - 渲染时间 - 解码时间
        // 如果wait_ms < -kMaxAllowedFrameDelayMs，说明可能解码性能不够，
        // 解码时间过长，该帧已经来不及渲染了，忽略该帧.
        if (wait_ms < -kMaxAllowedFrameDelayMs)
          continue;
        // 已经获得了待解码帧，退出搜索.
        break;
      }
    }  // rtc::Critscope lock(&crit_);
    // 更新剩余等待时间
    wait_ms = std::min<int64_t>(wait_ms, latest_return_time_ms - now_ms);
    wait_ms = std::max<int64_t>(wait_ms, 0);
  } while (new_continuous_frame_event_.Wait(wait_ms));  // 阻塞等待

  {
    rtc::CritScope lock(&crit_);
    now_ms = clock_->TimeInMilliseconds();
    // TODO(ilnik): remove |frames_out| use frames_to_decode_ directly.
    std::vector<EncodedFrame*> frames_out;
    // 如果获得了可解码帧
    if (!frames_to_decode_.empty()) {
      bool superframe_delayed_by_retransmission = false;
      size_t superframe_size = 0;
      EncodedFrame* first_frame = frames_to_decode_[0]->second.frame.get();
      int64_t render_time_ms = first_frame->RenderTime();     // 预期渲染时间
      int64_t receive_time_ms = first_frame->ReceivedTime();  // 接收时间
      // 检查帧的渲染时间戳或者当前的目标延迟是否有异常，如果是则重置时间处理器，
      // 重新获取帧的渲染时间.
      if (HasBadRenderTiming(*first_frame, now_ms)) {
        jitter_estimator_->Reset();
        timing_->Reset();
        render_time_ms =
            timing_->RenderTimeMs(first_frame->Timestamp(), now_ms);
      }
      // 遍历所有待解码超帧(他们应该有同样的时间戳)
      for (FrameMap::iterator& frame_it : frames_to_decode_) {
        RTC_DCHECK(frame_it != frames_.end());
        EncodedFrame* frame = frame_it->second.frame.release();
        // 重置预期渲染时间.
        frame->SetRenderTime(render_time_ms);
        // 超帧是否经过了重传.
        superframe_delayed_by_retransmission |=
            frame->delayed_by_retransmission();
        // 更新接收时间.
        receive_time_ms = std::max(receive_time_ms, frame->ReceivedTime());
        // 更新超帧总大小.
        superframe_size += frame->size();
        // 传播可解码性，当前帧可解码，通知参考他的帧检查其参考帧是否都已经被解码，
        // 如果是则也可以进入可解码状态.
        PropagateDecodability(frame_it->second);
        // 当前可解码帧进入已解码帧历史列表(实际上没有真的被解码，而是即将被解码)，
        // 早于历史解码帧的帧将被丢弃.
        decoded_frames_history_.InsertDecoded(frame_it->first,
                                              frame->Timestamp());

        // 删除帧缓存开始位置到当前解码帧位置的所有帧(因为已经没有必要保存)
        frames_.erase(frames_.begin(), ++frame_it);
        // 输出帧.
        frames_out.push_back(frame);
      }
      // 如果没有被重传，则可以处理延迟.
      if (!superframe_delayed_by_retransmission) {
        int64_t frame_delay;
        // 到达时间滤波器计算帧间延迟.
        if (inter_frame_delay_.CalculateDelay(first_frame->Timestamp(),
                                              &frame_delay, receive_time_ms)) {
          // 卡尔曼滤波器计算抖动，输入观测帧间延迟，输出最优帧间延迟，也就是抖动.
          jitter_estimator_->UpdateEstimate(frame_delay, superframe_size);
        }
        float rtt_mult = protection_mode_ == kProtectionNackFEC ? 0.0 : 1.0;
        if (RttMultExperiment::RttMultEnabled()) {
          rtt_mult = RttMultExperiment::GetRttMultValue();
        }
        // 获取抖动，并设置到timing_中，如果是初始状态，当前延迟(googCurrentDelayMs)被设置成抖动.
        timing_->SetJitterDelay(jitter_estimator_->GetJitterEstimate(rtt_mult));
        // 更新当前延迟(googCurrentDelayMs)，逼近googTargetDelayMs.
        timing_->UpdateCurrentDelay(render_time_ms, now_ms);
      } else {
        // 更新jitter_estimator_重传的次数，会影响其获取抖动的结果.
        if (RttMultExperiment::RttMultEnabled() || add_rtt_to_playout_delay_)
          jitter_estimator_->FrameNacked();
      }
      // 获取详细时间信息通知Observer.
      UpdateJitterDelay();
      UpdateTimingFrameInfo();
    }
    // 输出待解码帧.
    if (!frames_out.empty()) {
      if (frames_out.size() == 1) {
        frame_out->reset(frames_out[0]);
      } else {
        frame_out->reset(CombineAndDeleteFrames(frames_out));
      }
      return kFrameFound;
    }
  }  // rtc::Critscope lock(&crit_)
  //  如果还有剩余时间还没有获得可解码帧，可以再尝试等一等.
  if (latest_return_time_ms - now_ms > 0) {
    // If |next_frame_it_ == frames_.end()| and there is still time left, it
    // means that the frame buffer was cleared as the thread in this function
    // was waiting to acquire |crit_| in order to return. Wait for the
    // remaining time and then return.
    return NextFrame(latest_return_time_ms - now_ms, frame_out);
  }
  return kTimeout;
}

void FrameBuffer::PropagateContinuity(FrameMap::iterator start) {
  std::queue<FrameMap::iterator> continuous_frames;
  // start是连续的，先入队
  continuous_frames.push(start);

  // 广度优先搜索传播帧连续性.
  // 广度优先搜索的基本方法：待处理数据入队，数据出队处理后获得的中间数据再次入队，
  // 迭代搜索直到处理完所有的数据，也就是迭代处理邻接的节点，直到遍历整张图.
  while (!continuous_frames.empty()) {
    // 连续帧出队.
    auto frame = continuous_frames.front();
    continuous_frames.pop();
    // 如果最新的连续帧还未设置，或者当前连续帧比之前的最新连续帧还新，那么更新最新连续帧,
    // 用于NextFrame中限制遍历帧缓存的边界.
    if (!last_continuous_frame_ || *last_continuous_frame_ < frame->first) {
      last_continuous_frame_ = frame->first;
    }

    // 遍历当前连续帧的所有依赖帧(依赖该连续帧的帧，这些帧的参考帧就是当前连续帧)
    for (size_t d = 0; d < frame->second.dependent_frames.size(); ++d) {
      // 检查该依赖帧是否在帧缓存中
      auto frame_ref = frames_.find(frame->second.dependent_frames[d]);
      RTC_DCHECK(frame_ref != frames_.end());

      // 如果该依赖帧还在帧缓存中则检查帧连续性，否则有可能退出广度优先搜索.
      if (frame_ref != frames_.end()) {
        // 其未连续参考帧计数器--
        --frame_ref->second.num_missing_continuous;
        // 如果未连续参考帧计数器到0，说明所有参考帧都收到了.
        if (frame_ref->second.num_missing_continuous == 0) {
          // 该依赖帧也连续了.
          frame_ref->second.continuous = true;
          // 该依赖帧入队，在下次迭代继续搜索其依赖帧(参考他的帧)的连续性.
          continuous_frames.push(frame_ref);
        }
      }
    }
  }
}

void FrameBuffer::PropagateDecodability(const FrameInfo& info) {
  // 遍历所有依赖帧.
  for (size_t d = 0; d < info.dependent_frames.size(); ++d) {
    // 检查依赖帧是否还在帧缓存中.
    auto ref_info = frames_.find(info.dependent_frames[d]);
    RTC_DCHECK(ref_info != frames_.end());
    // TODO(philipel): Look into why we've seen this happen.
    if (ref_info != frames_.end()) {
      // 如果依赖帧还在帧缓存中，未解码参考帧计数器--,
      // 一个帧只有在连续(num_missing_continuous==0),
      // 并且其所有参考帧已经被解码(num_missing_decodable==0)的情况下，
      // 才能进入可解码状态(即将被解码)，该状态在解码线程中调用NextFrame时设置，
      // 所以这里不再使用广度优先搜索传播可解码性，而只是递减未解码参考帧计数器.
      RTC_DCHECK_GT(ref_info->second.num_missing_decodable, 0U);
      --ref_info->second.num_missing_decodable;
    }
  }
}

int VCMTiming::TargetDelayInternal() const {
  return std::max(min_playout_delay_ms_,
                  jitter_delay_ms_ + RequiredDecodeTimeMs() + render_delay_ms_);
}

void VCMTiming::UpdateCurrentDelay(int64_t render_time_ms,
                                    int64_t actual_decode_time_ms) {
  rtc::CritScope cs(&crit_sect_);
  // 获得目标延迟.
  uint32_t target_delay_ms = TargetDelayInternal();
  // render_time_ms：期望渲染时间
  // 期望解码时间 = 帧期望渲染时间 - 解码耗时 - 渲染耗时
  // 实际产生的延迟delayed_ms = 实际解码时间actual_decode_time_ms - 期望解码时间
  int64_t delayed_ms =
      actual_decode_time_ms -
      (render_time_ms - RequiredDecodeTimeMs() - render_delay_ms_);
  // 如果没有发生延迟，退出.
  if (delayed_ms < 0) {
    return;
  }
  // 如果有延迟，上个时刻的当前延迟 + 实际产生的延迟仍然<=目标延迟
  if (current_delay_ms_ + delayed_ms <= target_delay_ms) {
    // 更新当前延迟，逼近目标延迟.
    current_delay_ms_ += delayed_ms;
  } else {
    // 如果上个时刻的当前延迟 + 实际产生的延迟仍然超过目标延迟，以目标延迟为上限.
    current_delay_ms_ = target_delay_ms;
  }
}

int64_t VCMTiming::RenderTimeMsInternal(uint32_t frame_timestamp,
                                        int64_t now_ms) const {
  // 如果这两个播放延迟都是0，要求立刻渲染.
  if (min_playout_delay_ms_ == 0 && max_playout_delay_ms_ == 0) {
    // Render as soon as possible.
    return 0;
  }
  // 使用卡尔曼滤波器估算帧平滑时间.
  int64_t estimated_complete_time_ms =
      ts_extrapolator_->ExtrapolateLocalTime(frame_timestamp);
  if (estimated_complete_time_ms == -1) {
    estimated_complete_time_ms = now_ms;
  }
  // 当前延迟限定在(min_playout_delay_ms_, max_playout_delay_ms_)范围内
  int actual_delay = std::max(current_delay_ms_, min_playout_delay_ms_);
  actual_delay = std::min(actual_delay, max_playout_delay_ms_);
  // 视频帧的最终渲染时间 = 帧平滑时间 + 当前延迟
  return estimated_complete_time_ms + actual_delay;
}

bool ViEChannel::ChannelDecodeProcess()

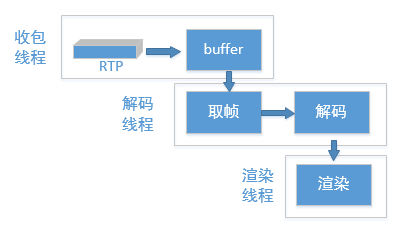

->int32_t Decode(uint16_t maxWaitTimeMs)
->int32_t VideoReceiver::Decode(uint16_t maxWaitTimeMs)
->VCMEncodedFrame* VCMReceiver::FrameForDecoding

bool found_frame = jitter_buffer_.NextCompleteTimestamp(
    max_wait_time_ms, &frame_timestamp);
if (!found_frame)
  found_frame = jitter_buffer_.NextMaybeIncompleteTimestamp(&frame_timestamp);

VCMEncodedFrame* frame = jitter_buffer_.ExtractAndSetDecode(frame_timestamp);

void UdpTransportImpl::IncomingRTPCallback
->void UdpTransportImpl::IncomingRTPFunction
->void VideoChannelTransport::IncomingRTPPacket
->int ViENetworkImpl::ReceivedRTPPacket
->int32_t ViEChannel::ReceivedRTPPacket
->int ViEReceiver::ReceivedRTPPacket
->int ViEReceiver::InsertRTPPacket
->bool ViEReceiver::ReceivePacket
->bool RtpReceiverImpl::IncomingRtpPacket
->int32_t RTPReceiverVideo::ParseRtpPacket
->int32_t ViEReceiver::OnReceivedPayloadData
->int32_t IncomingPacket
->int32_t VideoReceiver::IncomingPacket
->int32_t VCMReceiver::InsertPacket
->VCMFrameBufferEnum VCMJitterBuffer::InsertPacket

VCMFrameBuffer* frame;
  FrameList* frame_list;
  const VCMFrameBufferEnum error = GetFrame(packet, &frame, &frame_list);

// Gets frame to use for this timestamp. If no match, get empty frame.

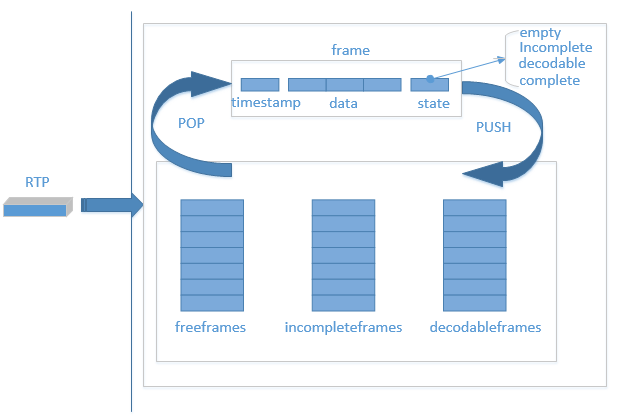

VCMFrameBufferEnum VCMJitterBuffer::GetFrame(const VCMPacket& packet,
                                             VCMFrameBuffer** frame,
                                             FrameList** frame_list) {
  *frame = incomplete_frames_.PopFrame(packet.timestamp);
  if (*frame != NULL) {
    *frame_list = &incomplete_frames_;
    return kNoError;
  }
  *frame = decodable_frames_.PopFrame(packet.timestamp);
  if (*frame != NULL) {
    *frame_list = &decodable_frames_;
    return kNoError;
  }

  *frame_list = NULL;
  // No match, return empty frame.
  *frame = GetEmptyFrame();
  if (*frame == NULL) {
    // No free frame! Try to reclaim some...
    LOG(LS_WARNING) << "Unable to get empty frame; Recycling.";
    bool found_key_frame = RecycleFramesUntilKeyFrame();
    *frame = GetEmptyFrame();
    assert(*frame);
    if (!found_key_frame) {
      free_frames_.push_back(*frame);
      return kFlushIndicator;
    }
  }
  (*frame)->Reset();
  return kNoError;
}

size_t returnLength = InsertBuffer(frame_buffer, packet_list_it);
UpdateCompleteSession();
if (decode_error_mode == kWithErrors)
  decodable_ = true;
else if (decode_error_mode == kSelectiveErrors)
  UpdateDecodableSession(frame_data);
return static_cast<int>(returnLength);

void VCMSessionInfo::UpdateCompleteSession() {
  if (HaveFirstPacket() && HaveLastPacket()) {
    // Do we have all the packets in this session?
    bool complete_session = true;
    PacketIterator it = packets_.begin();
    PacketIterator prev_it = it;
    ++it;
    for (; it != packets_.end(); ++it) {
      if (!InSequence(it, prev_it)) {
        complete_session = false;
        break;
      }
      prev_it = it;
    }
    complete_ = complete_session;
  }
}

void VCMSessionInfo::UpdateDecodableSession(const FrameData& frame_data) {
  // Irrelevant if session is already complete or decodable
  if (complete_ || decodable_)
    return;
  // TODO(agalusza): Account for bursty loss.
  // TODO(agalusza): Refine these values to better approximate optimal ones.
  // Do not decode frames if the RTT is lower than this.
  const int64_t kRttThreshold = 100;
  // Do not decode frames if the number of packets is between these two
  // thresholds.
  const float kLowPacketPercentageThreshold = 0.2f;
  const float kHighPacketPercentageThreshold = 0.8f;
  if (frame_data.rtt_ms < kRttThreshold
      || frame_type_ == kVideoFrameKey
      || !HaveFirstPacket()
      || (NumPackets() <= kHighPacketPercentageThreshold
                          * frame_data.rolling_average_packets_per_frame
          && NumPackets() > kLowPacketPercentageThreshold
                            * frame_data.rolling_average_packets_per_frame))
    return;

  decodable_ = true;
}

if (_sessionInfo.complete()) {
  SetState(kStateComplete);
  return kCompleteSession;
} else if (_sessionInfo.decodable()) {
  SetState(kStateDecodable);
  return kDecodableSession;
}
return kIncomplete;

int Conductor::VideoCreateStream
->int ViEBaseImpl::CreateChannel
->int ViEBaseImpl::CreateChannel
->int ViEChannelManager::CreateChannel
->bool ChannelGroup::CreateSendChannel
->bool ChannelGroup::CreateChannel
->int32_t ViEChannel::Init
->int32_t SetVideoProtection
->int32_t VideoReceiver::SetVideoProtection
->void VCMReceiver::SetDecodeErrorMode
->void VCMJitterBuffer::SetDecodeErrorMode

// Enable or disable a video protection method.
// Note: This API should be deprecated, as it does not offer a distinction
// between the protection method and decoding with or without errors. If such a
// behavior is desired, use the following API: SetReceiverRobustnessMode.
int32_t VideoReceiver::SetVideoProtection(VCMVideoProtection videoProtection,
                                          bool enable) {
  // By default, do not decode with errors.
  _receiver.SetDecodeErrorMode(kNoErrors);
  switch (videoProtection) {
    case kProtectionNack:
    case kProtectionNackReceiver: {
      CriticalSectionScoped cs(_receiveCritSect);
      if (enable) {
        // Enable NACK and always wait for retransmits.
        _receiver.SetNackMode(kNack, -1, -1);
      } else {
        _receiver.SetNackMode(kNoNack, -1, -1);
      }
      break;
    }

    case kProtectionKeyOnLoss: {
      CriticalSectionScoped cs(_receiveCritSect);
      if (enable) {
        _keyRequestMode = kKeyOnLoss;
        _receiver.SetDecodeErrorMode(kWithErrors);
      } else if (_keyRequestMode == kKeyOnLoss) {
        _keyRequestMode = kKeyOnError;  // default mode
      } else {
        return VCM_PARAMETER_ERROR;
      }
      break;
    }

    case kProtectionKeyOnKeyLoss: {
      CriticalSectionScoped cs(_receiveCritSect);
      if (enable) {
        _keyRequestMode = kKeyOnKeyLoss;
      } else if (_keyRequestMode == kKeyOnKeyLoss) {
        _keyRequestMode = kKeyOnError;  // default mode
      } else {
        return VCM_PARAMETER_ERROR;
      }
      break;
    }

    case kProtectionNackFEC: {
      CriticalSectionScoped cs(_receiveCritSect);
      if (enable) {
        // Enable hybrid NACK/FEC. Always wait for retransmissions
        // and don't add extra delay when RTT is above
        // kLowRttNackMs.
        _receiver.SetNackMode(kNack, media_optimization::kLowRttNackMs, -1);
        _receiver.SetDecodeErrorMode(kNoErrors);
        _receiver.SetDecodeErrorMode(kNoErrors);
      } else {
        _receiver.SetNackMode(kNoNack, -1, -1);
      }
      break;
    }
    case kProtectionNackSender:
    case kProtectionFEC:
    case kProtectionPeriodicKeyFrames:
      // Ignore encoder modes.
      return VCM_OK;
  }
  return VCM_OK;
}

// Is the frame already in the decodable list?
bool continuous = IsContinuous(*frame);
switch (buffer_state) {
  case kGeneralError:
  case kTimeStampError:
  case kSizeError: {
    free_frames_.push_back(frame);
    break;
  }
  case kCompleteSession: {
    if (previous_state != kStateDecodable &&
        previous_state != kStateComplete) {
      CountFrame(*frame);
      if (continuous) {
        // Signal that we have a complete session.
        frame_event_->Set();
      }
    }
    FALLTHROUGH();
  }
  // Note: There is no break here - continuing to kDecodableSession.
  case kDecodableSession: {
    *retransmitted = (frame->GetNackCount() > 0);
    if (continuous) {
      decodable_frames_.InsertFrame(frame);
      FindAndInsertContinuousFrames(*frame);
    } else {
      incomplete_frames_.InsertFrame(frame);
    }
    break;
  }
  case kIncomplete: {
    if (frame->GetState() == kStateEmpty &&
        last_decoded_state_.UpdateEmptyFrame(frame)) {
      free_frames_.push_back(frame);
      return kNoError;
    } else {
      incomplete_frames_.InsertFrame(frame);
    }
    break;
  }
  case kNoError:
  case kOutOfBoundsPacket:
  case kDuplicatePacket: {
    // Put back the frame where it came from.
    if (frame_list != NULL) {
      frame_list->InsertFrame(frame);
    } else {
      free_frames_.push_back(frame);
    }
    ++num_duplicated_packets_;
    break;
  }
  case kFlushIndicator:
    free_frames_.push_back(frame);
    return kFlushIndicator;
  default: assert(false);
}
