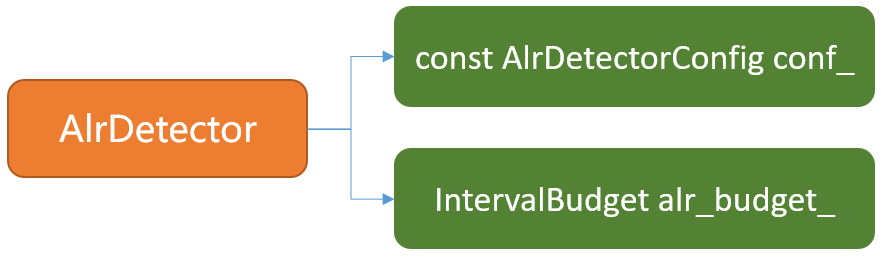

struct AlrDetectorConfig {
  // Sent traffic ratio as a function of network capacity used to determine
  // application-limited region. ALR region start when bandwidth usage drops
  // below kAlrStartUsageRatio and ends when it raises above
  // kAlrEndUsageRatio. NOTE: This is intentionally conservative at the moment
  // until BW adjustments of application limited region is fine tuned.
  double bandwidth_usage_ratio = 0.65;
  double start_budget_level_ratio = 0.80;
  double stop_budget_level_ratio = 0.50;
  std::unique_ptr<StructParametersParser> Parser();
};

AlrDetector::AlrDetector(AlrDetectorConfig config, RtcEventLog* event_log)
    : conf_(config), alr_budget_(0, true), event_log_(event_log) {}
AlrDetector::AlrDetector(const WebRtcKeyValueConfig* key_value_config)
    : AlrDetector(GetConfigFromTrials(key_value_config), nullptr) {}
AlrDetector::AlrDetector(const WebRtcKeyValueConfig* key_value_config,
                          RtcEventLog* event_log)
    : AlrDetector(GetConfigFromTrials(key_value_config), event_log) {}

void AlrDetector::SetEstimatedBitrate(int bitrate_bps) {
  RTC_DCHECK(bitrate_bps);
  int target_rate_kbps =
      static_cast<double>(bitrate_bps) * conf_.bandwidth_usage_ratio / 1000;
  alr_budget_.set_target_rate_kbps(target_rate_kbps);
}

void IntervalBudget::set_target_rate_kbps(int target_rate_kbps) {
  target_rate_kbps_ = target_rate_kbps;
  max_bytes_in_budget_ = (kWindowMs * target_rate_kbps_) / 8;
  bytes_remaining_ = std::min(std::max(-max_bytes_in_budget_, bytes_remaining_),
                              max_bytes_in_budget_);
}

namespace {
  constexpr int64_t kWindowMs = 500;
}

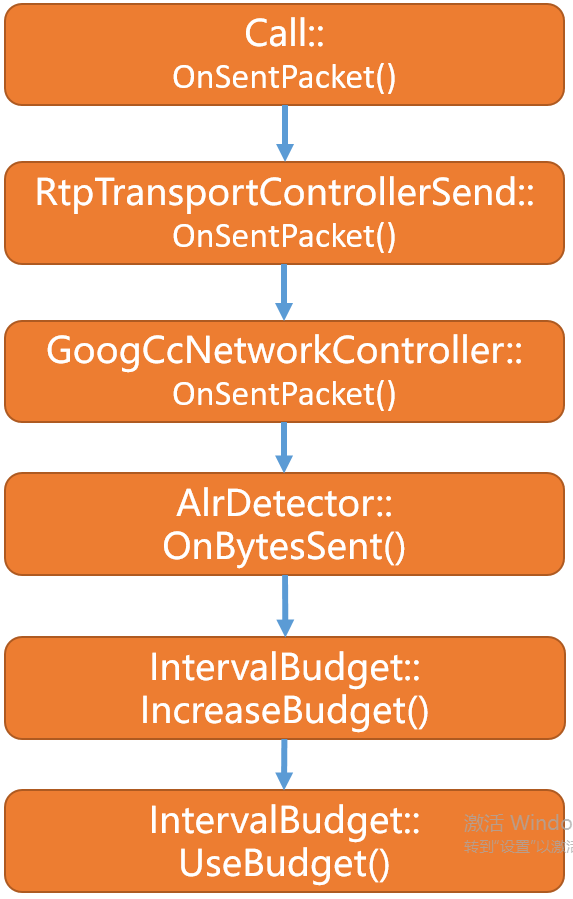

void AlrDetector::OnBytesSent(size_t bytes_sent, int64_t send_time_ms) {
  if (!last_send_time_ms_.has_value()) {
    last_send_time_ms_ = send_time_ms;
    // Since the duration for sending the bytes is unknwon, return without
    // updating alr state.
    return;
  }
  int64_t delta_time_ms = send_time_ms - *last_send_time_ms_;
  last_send_time_ms_ = send_time_ms;
  alr_budget_.UseBudget(bytes_sent);
  alr_budget_.IncreaseBudget(delta_time_ms);
  bool state_changed = false;
  if (alr_budget_.budget_ratio() > conf_.start_budget_level_ratio &&
      !alr_started_time_ms_) {
    alr_started_time_ms_.emplace(rtc::TimeMillis());
    state_changed = true;
  } else if (alr_budget_.budget_ratio() < conf_.stop_budget_level_ratio &&
              alr_started_time_ms_) {
    state_changed = true;
    alr_started_time_ms_.reset();
  }
  if (event_log_ && state_changed) {
    event_log_->Log(
        std::make_unique<RtcEventAlrState>(alr_started_time_ms_.has_value()));
  }
}

void IntervalBudget::UseBudget(size_t bytes) {
  bytes_remaining_ = std::max(bytes_remaining_ - static_cast<int>(bytes),
                              -max_bytes_in_budget_);
}

void IntervalBudget::IncreaseBudget(int64_t delta_time_ms) {
  int64_t bytes = target_rate_kbps_ * delta_time_ms / 8;
  if (bytes_remaining_ < 0 || can_build_up_underuse_) {
    // We overused last interval, compensate this interval.
    bytes_remaining_ = std::min(bytes_remaining_ + bytes, max_bytes_in_budget_);
  } else {
    // If we underused last interval we can't use it this interval.
    bytes_remaining_ = std::min(bytes, max_bytes_in_budget_);
  }
}

double IntervalBudget::budget_ratio() const {
  if (max_bytes_in_budget_ == 0)
    return 0.0;
  return static_cast<double>(bytes_remaining_) / max_bytes_in_budget_;
}

NetworkControlUpdate GoogCcNetworkController::OnProcessInterval(
    ProcessInterval msg) {
    ...
  bandwidth_estimation_->UpdateEstimate(msg.at_time);
  absl::optional<int64_t> start_time_ms =
      alr_detector_->GetApplicationLimitedRegionStartTime();
  probe_controller_->SetAlrStartTimeMs(start_time_ms);
}

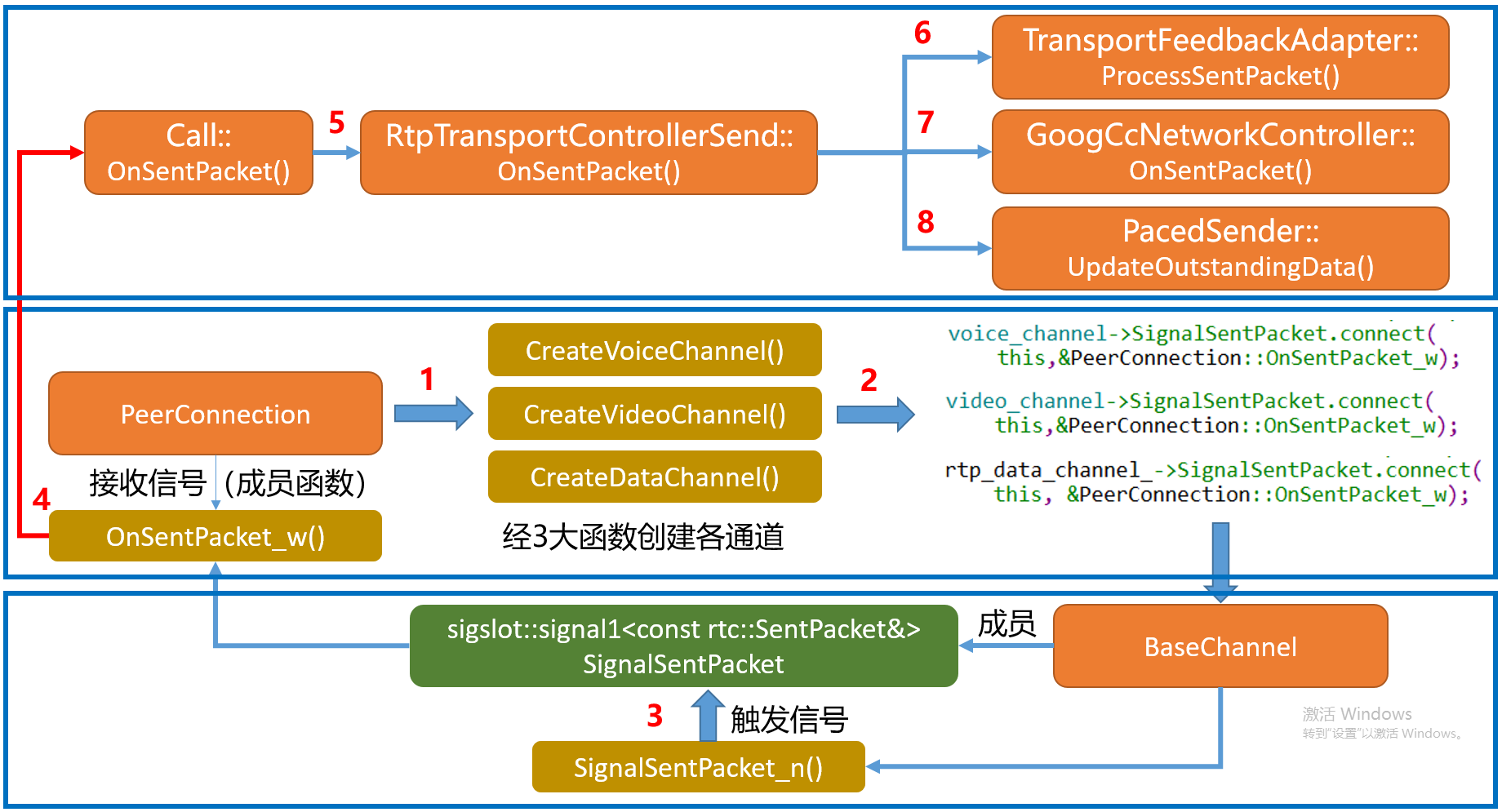

NetworkControlUpdate GoogCcNetworkController::OnSentPacket(
    SentPacket sent_packet) {
  alr_detector_->OnBytesSent(sent_packet.size.bytes(),
                              sent_packet.send_time.ms());
  acknowledged_bitrate_estimator_->SetAlr(
      alr_detector_->GetApplicationLimitedRegionStartTime().has_value());
  .....
}

NetworkControlUpdate GoogCcNetworkController::OnTransportPacketsFeedback(
    TransportPacketsFeedback report) {
  absl::optional<int64_t> alr_start_time =
      alr_detector_->GetApplicationLimitedRegionStartTime();
}

0                   1                   2                   3
        0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 header |V=2|P|    RC   |   PT=RR=201   |             length            |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        |                     SSRC of packet sender                     |
        +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+
 report |                 SSRC_1 (SSRC of first source)                 |
 block  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        1    | fraction lost |       cumulative number of packets lost       |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        |           extended highest sequence number received           |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        |                      interarrival jitter                      |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        |                         last SR (LSR)                         |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        |                   delay since last SR (DLSR)                  |
        +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+
 report |                 SSRC_2 (SSRC of second source)                |
 block  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
        2    :                               ...                             :
        +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+
        |                  profile-specific extensions                  |
        +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

void RTCPReceiver::HandleReportBlock(const ReportBlock& report_block,
                                      PacketInformation* packet_information,
                                      uint32_t remote_ssrc) {
  // This will be called once per report block in the RTCP packet.
  // We filter out all report blocks that are not for us.
  // Each packet has max 31 RR blocks.
  //
  // We can calc RTT if we send a send report and get a report block back.
  // |report_block.source_ssrc()| is the SSRC identifier of the source to
  // which the information in this reception report block pertains.
  // Filter out all report blocks that are not for us.
  if (registered_ssrcs_.count(report_block.source_ssrc()) == 0)
    return;
  last_received_rb_ms_ = clock_->TimeInMilliseconds();
  ReportBlockData* report_block_data =
      &received_report_blocks_[report_block.source_ssrc()][remote_ssrc];
  RTCPReportBlock rtcp_report_block;
  rtcp_report_block.sender_ssrc = remote_ssrc;
  rtcp_report_block.source_ssrc = report_block.source_ssrc();
  rtcp_report_block.fraction_lost = report_block.fraction_lost();
  rtcp_report_block.packets_lost = report_block.cumulative_lost_signed();
  if (report_block.extended_high_seq_num() >
      report_block_data->report_block().extended_highest_sequence_number) {
    // We have successfully delivered new RTP packets to the remote side after
    // the last RR was sent from the remote side.
    last_increased_sequence_number_ms_ = clock_->TimeInMilliseconds();
  }
  rtcp_report_block.extended_highest_sequence_number =
      report_block.extended_high_seq_num();
  rtcp_report_block.jitter = report_block.jitter();
  rtcp_report_block.delay_since_last_sender_report =
      report_block.delay_since_last_sr();
  rtcp_report_block.last_sender_report_timestamp = report_block.last_sr();
  report_block_data->SetReportBlock(rtcp_report_block, rtc::TimeUTCMicros());
  int64_t rtt_ms = 0;
  uint32_t send_time_ntp = report_block.last_sr();
  // RFC3550, section 6.4.1, LSR field discription states:
  // If no SR has been received yet, the field is set to zero.
  // Receiver rtp_rtcp module is not expected to calculate rtt using
  // Sender Reports even if it accidentally can.
  // TODO(nisse): Use this way to determine the RTT only when |receiver_only_|
  // is false. However, that currently breaks the tests of the
  // googCaptureStartNtpTimeMs stat for audio receive streams. To fix, either
  // delete all dependencies on RTT measurements for audio receive streams, or
  // ensure that audio receive streams that need RTT and stats that depend on it
  // are configured with an associated audio send stream.
  if (send_time_ntp != 0) {
    uint32_t delay_ntp = report_block.delay_since_last_sr();
    // Local NTP time.
    uint32_t receive_time_ntp =
        CompactNtp(TimeMicrosToNtp(clock_->TimeInMicroseconds()));
    // RTT in 1/(2^16) seconds.
    uint32_t rtt_ntp = receive_time_ntp - delay_ntp - send_time_ntp;
    // Convert to 1/1000 seconds (milliseconds).
    rtt_ms = CompactNtpRttToMs(rtt_ntp);
    report_block_data->AddRoundTripTimeSample(rtt_ms);
    packet_information->rtt_ms = rtt_ms;
  }
  packet_information->report_blocks.push_back(
      report_block_data->report_block());
  packet_information->report_block_datas.push_back(*report_block_data);
}

[10 Nov 1995 11:33:25.125 UTC]       [10 Nov 1995 11:33:36.5 UTC]
    n                 SR(n)              A=b710:8000 (46864.500 s)
    ---------------------------------------------------------------->
                      v                 ^
    ntp_sec =0xb44db705 v               ^ dlsr=0x0005:4000 (    5.250s)
    ntp_frac=0x20000000  v             ^  lsr =0xb705:2000 (46853.125s)
      (3024992005.125 s)  v           ^
    r                      v         ^ RR(n)
    ---------------------------------------------------------------->
                          |<-DLSR->|
                            (5.250 s)
    A     0xb710:8000 (46864.500 s)
    DLSR -0x0005:4000 (    5.250 s)
    LSR  -0xb705:2000 (46853.125 s)
    -------------------------------
    delay 0x0006:2000 (    6.125 s)

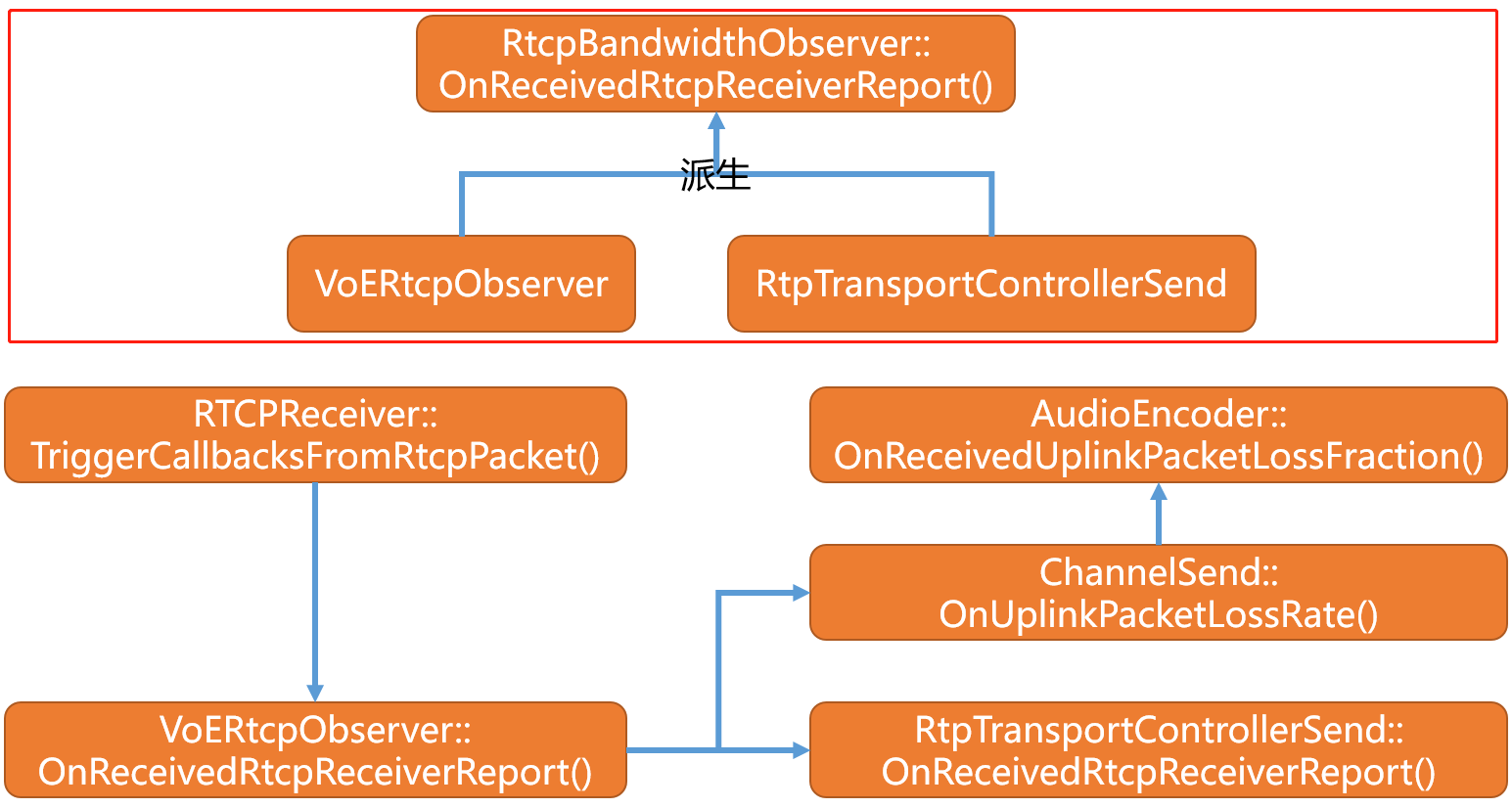

void RTCPReceiver::TriggerCallbacksFromRtcpPacket(
    const PacketInformation& packet_information) {
  ....
  if (rtcp_bandwidth_observer_) {
    RTC_DCHECK(!receiver_only_);
    if ((packet_information.packet_type_flags & kRtcpSr) ||
        (packet_information.packet_type_flags & kRtcpRr)) {
      int64_t now_ms = clock_->TimeInMilliseconds();
      rtcp_bandwidth_observer_->OnReceivedRtcpReceiverReport(
          packet_information.report_blocks, packet_information.rtt_ms, now_ms);
    }
  }
  .....
  if ((packet_information.packet_type_flags & kRtcpSr) ||
      (packet_information.packet_type_flags & kRtcpRr)) {
    rtp_rtcp_->OnReceivedRtcpReportBlocks(packet_information.report_blocks);
  }
}

class RTCPReceiver {
  public:
    .....
  private:
    RtcpBandwidthObserver* const rtcp_bandwidth_observer_;
}

task_queue_.PostTask([this, report_blocks, now_ms]() {
  RTC_DCHECK_RUN_ON(&task_queue_);
  OnReceivedRtcpReceiverReportBlocks(report_blocks, now_ms);
});

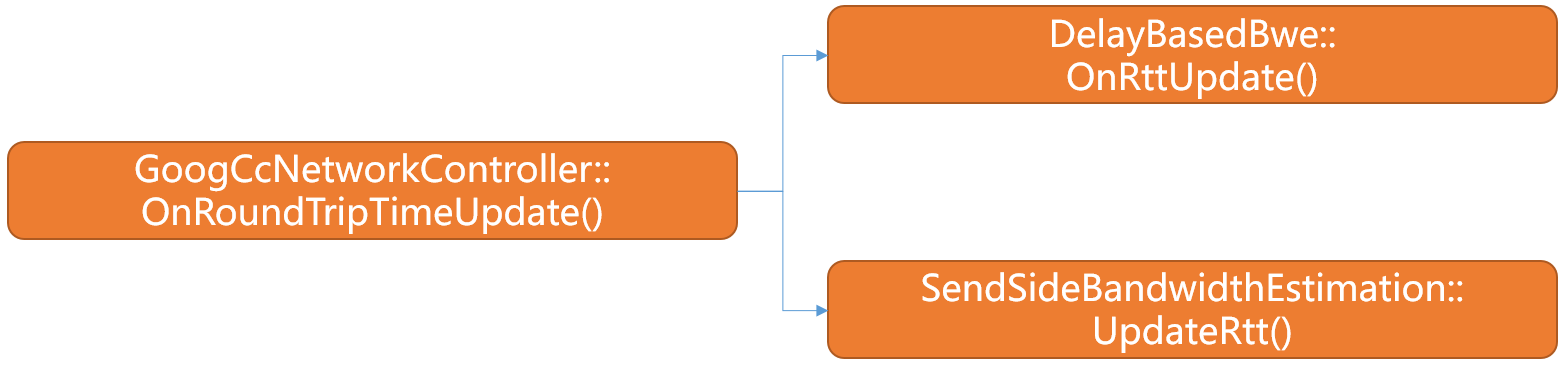

task_queue_.PostTask([this, now_ms, rtt_ms]() {
  RTC_DCHECK_RUN_ON(&task_queue_);
  RoundTripTimeUpdate report;
  report.receive_time = Timestamp::ms(now_ms);
  report.round_trip_time = TimeDelta::ms(rtt_ms);
  report.smoothed = false;
  if (controller_ && !report.round_trip_time.IsZero())
    PostUpdates(controller_->OnRoundTripTimeUpdate(report));
});

#network_types.h
struct TransportLossReport {
  /*表示当前接收到该消息的ntp时间*/
  Timestamp receive_time = Timestamp::PlusInfinity();
  /*上一次接收到SR或者RR报文的时间*/
  Timestamp start_time = Timestamp::PlusInfinity();
  /*当前接收到该消息的ntp时间*/
  Timestamp end_time = Timestamp::PlusInfinity();
  /*在上一次处理和本次处理时间差范围内也就是end_time - start_time 之间的丢包数量*/
  uint64_t packets_lost_delta = 0;
  /*在上一次处理和本次处理时间差范围内也就是end_time - start_time 之间实际发送成功的包数*/
  uint64_t packets_received_delta = 0;
};

void RtpTransportControllerSend::OnReceivedRtcpReceiverReportBlocks(
    const ReportBlockList& report_blocks,
    int64_t now_ms) {
  if (report_blocks.empty())
    return;
  int total_packets_lost_delta = 0;
  int total_packets_delta = 0;
  // Compute the packet loss from all report blocks.
  for (const RTCPReportBlock& report_block : report_blocks) {
    auto it = last_report_blocks_.find(report_block.source_ssrc);
    if (it != last_report_blocks_.end()) {
      auto number_of_packets = report_block.extended_highest_sequence_number -
                                it->second.extended_highest_sequence_number;
      total_packets_delta += number_of_packets;
      auto lost_delta = report_block.packets_lost - it->second.packets_lost;
      total_packets_lost_delta += lost_delta;
    }
    last_report_blocks_[report_block.source_ssrc] = report_block;
  }
  // Can only compute delta if there has been previous blocks to compare to. If
  // not, total_packets_delta will be unchanged and there's nothing more to do.
  if (!total_packets_delta)
    return;
  int packets_received_delta = total_packets_delta - total_packets_lost_delta;
  // To detect lost packets, at least one packet has to be received. This check
  // is needed to avoid bandwith detection update in
  // VideoSendStreamTest.SuspendBelowMinBitrate
  if (packets_received_delta < 1)
    return;
  Timestamp now = Timestamp::ms(now_ms);
  TransportLossReport msg;
  msg.packets_lost_delta = total_packets_lost_delta;
  msg.packets_received_delta = packets_received_delta;
  msg.receive_time = now;
  msg.start_time = last_report_block_time_;
  msg.end_time = now;
  if (controller_)
    PostUpdates(controller_->OnTransportLossReport(msg));
  last_report_block_time_ = now;
}

struct RoundTripTimeUpdate {
  /*表示当前接收到该消息的ntp时间*/
  Timestamp receive_time = Timestamp::PlusInfinity();
  /*rtt时间*/
  TimeDelta round_trip_time = TimeDelta::PlusInfinity();
  bool smoothed = false;
};

NetworkControlUpdate GoogCcNetworkController::OnTransportLossReport(
    TransportLossReport msg) {
  if (packet_feedback_only_)//默认为false,这里可以通过配置该变量让码率估计只依据packet_feedback_only_
    return NetworkControlUpdate();
  int64_t total_packets_delta =
      msg.packets_received_delta + msg.packets_lost_delta;
  bandwidth_estimation_->UpdatePacketsLost(
      msg.packets_lost_delta, total_packets_delta, msg.receive_time);
  return NetworkControlUpdate();
}

void SendSideBandwidthEstimation::UpdatePacketsLost(int packets_lost,
                                                    int number_of_packets,
                                                    Timestamp at_time) {
  last_loss_feedback_ = at_time;
  if (first_report_time_.IsInfinite())
    first_report_time_ = at_time;
  // Check sequence number diff and weight loss report
  if (number_of_packets > 0) {
    // Accumulate reports.
    lost_packets_since_last_loss_update_ += packets_lost;
    expected_packets_since_last_loss_update_ += number_of_packets;
    // Don't generate a loss rate until it can be based on enough packets.
    if (expected_packets_since_last_loss_update_ < kLimitNumPackets)
      return;
    has_decreased_since_last_fraction_loss_ = false;
    int64_t lost_q8 = lost_packets_since_last_loss_update_ << 8;
    int64_t expected = expected_packets_since_last_loss_update_;
    last_fraction_loss_ = std::min<int>(lost_q8 / expected, 255);
    // Reset accumulators.
    lost_packets_since_last_loss_update_ = 0;
    expected_packets_since_last_loss_update_ = 0;
    last_loss_packet_report_ = at_time;
    UpdateEstimate(at_time);
  }
  UpdateUmaStatsPacketsLost(at_time, packets_lost);
}

constexpr TimeDelta kBweIncreaseInterval = TimeDelta::Millis<1000>();
constexpr TimeDelta kMaxRtcpFeedbackInterval = TimeDelta::Millis<5000>();
constexpr TimeDelta kBweDecreaseInterval = TimeDelta::Millis<300>();
constexpr float kDefaultLowLossThreshold = 0.02f;
constexpr float kDefaultHighLossThreshold = 0.1f;
constexpr DataRate kDefaultBitrateThreshold = DataRate::Zero();

void SendSideBandwidthEstimation::UpdateEstimate(Timestamp at_time) {
    .........
  UpdateMinHistory(at_time);
  .......
  /*是否启用WebRTC-Bwe-LossBasedControl,正常情况除非用户自己配置否则不启用*/
  if (loss_based_bandwidth_estimation_.Enabled()) {
    loss_based_bandwidth_estimation_.Update(
        at_time, min_bitrate_history_.front().second, last_round_trip_time_);
    DataRate new_bitrate = MaybeRampupOrBackoff(current_target_, at_time);
    UpdateTargetBitrate(new_bitrate, at_time);
    return;
  }
  TimeDelta time_since_loss_packet_report = at_time - last_loss_packet_report_;
  if (time_since_loss_packet_report < 1.2 * kMaxRtcpFeedbackInterval) {
    // We only care about loss above a given bitrate threshold.
    //上面分析到last_fraction_loss_位丢包率*2^8
    float loss = last_fraction_loss_ / 256.0f;
    // We only make decisions based on loss when the bitrate is above a
    // threshold. This is a crude way of handling loss which is uncorrelated
    // to congestion.
    if (current_target_ < bitrate_threshold_ || loss <= low_loss_threshold_) {
      // Loss < 2%: Increase rate by 8% of the min bitrate in the last
      // kBweIncreaseInterval.
      // Note that by remembering the bitrate over the last second one can
      // rampup up one second faster than if only allowed to start ramping
      // at 8% per second rate now. E.g.:
      //   If sending a constant 100kbps it can rampup immediately to 108kbps
      //   whenever a receiver report is received with lower packet loss.
      //   If instead one would do: current_bitrate_ *= 1.08^(delta time),
      //   it would take over one second since the lower packet loss to achieve
      //   108kbps.
      DataRate new_bitrate =
          DataRate::bps(min_bitrate_history_.front().second.bps() * 1.08 + 0.5);
      // Add 1 kbps extra, just to make sure that we do not get stuck
      // (gives a little extra increase at low rates, negligible at higher
      // rates).
      new_bitrate += DataRate::bps(1000);
      UpdateTargetBitrate(new_bitrate, at_time);
      return;
    } else if (current_target_ > bitrate_threshold_) {
      if (loss <= high_loss_threshold_) {
        // Loss between 2% - 10%: Do nothing.
      } else {
        // Loss > 10%: Limit the rate decreases to once a kBweDecreaseInterval
        // + rtt.
        if (!has_decreased_since_last_fraction_loss_ &&
            (at_time - time_last_decrease_) >=
                (kBweDecreaseInterval + last_round_trip_time_)) {
          time_last_decrease_ = at_time;
          // Reduce rate:
          //   newRate = rate * (1 - 0.5*lossRate);
          //   where packetLoss = 256*lossRate;
          DataRate new_bitrate =
              DataRate::bps((current_target_.bps() *
                              static_cast<double>(512 - last_fraction_loss_)) /
                            512.0);
          has_decreased_since_last_fraction_loss_ = true;
          UpdateTargetBitrate(new_bitrate, at_time);
          return;
        }
      }
    }
  }
  // TODO(srte): This is likely redundant in most cases.
  ApplyTargetLimits(at_time);
}

void SendSideBandwidthEstimation::UpdateMinHistory(Timestamp at_time) {
  // Remove old data points from history.
  // Since history precision is in ms, add one so it is able to increase
  // bitrate if it is off by as little as 0.5ms.
  while (!min_bitrate_history_.empty() &&
          at_time - min_bitrate_history_.front().first + TimeDelta::ms(1) >
              kBweIncreaseInterval) {
    min_bitrate_history_.pop_front();
  }
  // Typical minimum sliding-window algorithm: Pop values higher than current
  // bitrate before pushing it.
  while (!min_bitrate_history_.empty() &&
          current_target_ <= min_bitrate_history_.back().second) {
    min_bitrate_history_.pop_back();
  }
  min_bitrate_history_.push_back(std::make_pair(at_time, current_target_));
}

std::deque<std::pair<Timestamp, DataRate> > min_bitrate_history_;

void SendSideBandwidthEstimation::UpdateTargetBitrate(DataRate new_bitrate,
                                                      Timestamp at_time) {
  new_bitrate = std::min(new_bitrate, GetUpperLimit());
  if (new_bitrate < min_bitrate_configured_) {
    MaybeLogLowBitrateWarning(new_bitrate, at_time);
    new_bitrate = min_bitrate_configured_;
  }
  current_target_ = new_bitrate;
  MaybeLogLossBasedEvent(at_time);
  link_capacity_.OnRateUpdate(acknowledged_rate_, current_target_, at_time);
}

void SendSideBandwidthEstimation::UpdateRtt(TimeDelta rtt, Timestamp at_time) {
  // Update RTT if we were able to compute an RTT based on this RTCP.
  // FlexFEC doesn't send RTCP SR, which means we won't be able to compute RTT.
  if (rtt > TimeDelta::Zero())
    last_round_trip_time_ = rtt;
  if (!IsInStartPhase(at_time) && uma_rtt_state_ == kNoUpdate) {
    uma_rtt_state_ = kDone;
    RTC_HISTOGRAM_COUNTS("WebRTC.BWE.InitialRtt", rtt.ms<int>(), 0, 2000, 50);
  }
}

a=extmap:5 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions

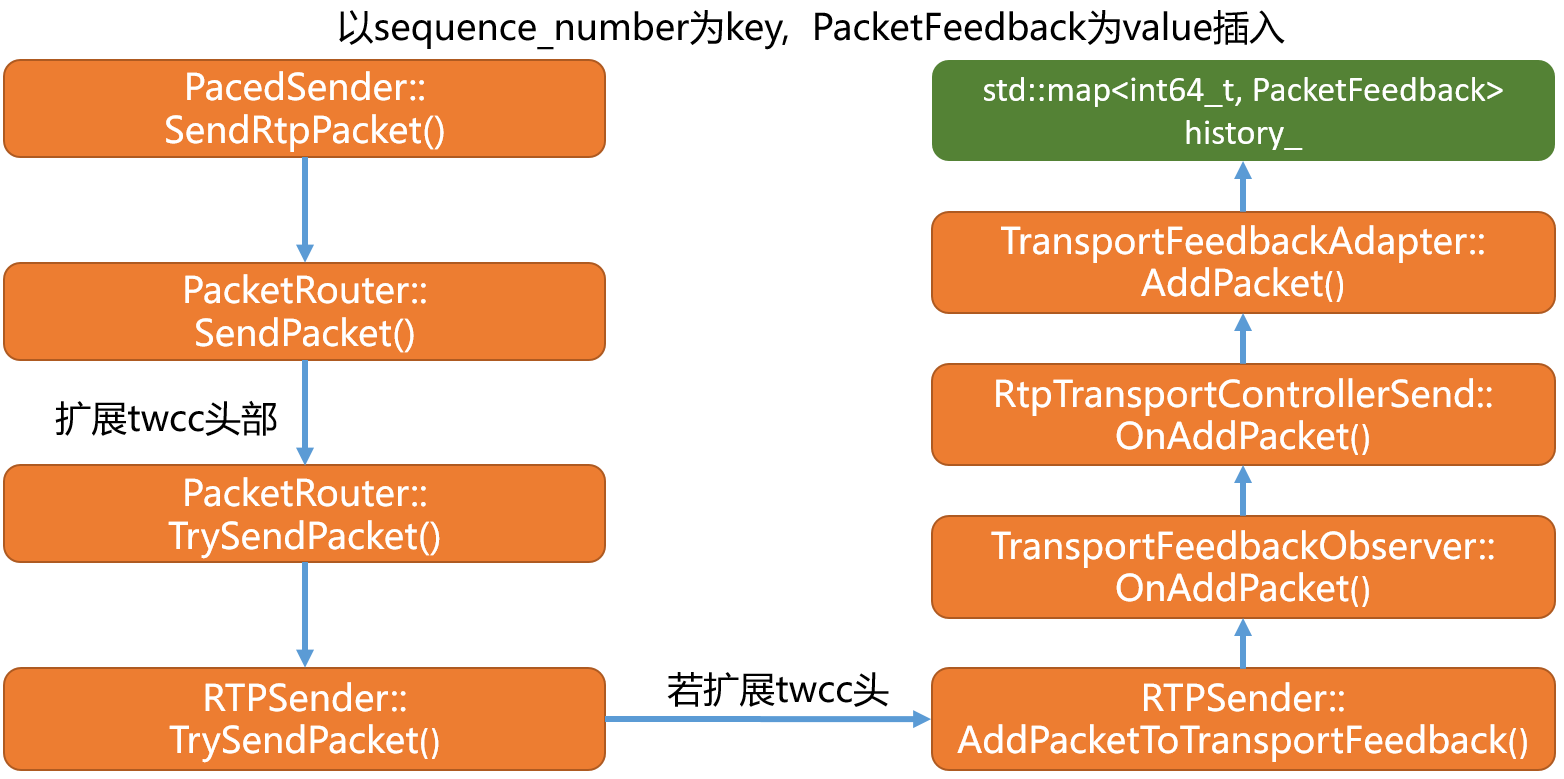

void PacketRouter::SendPacket(std::unique_ptr<RtpPacketToSend> packet,
                              const PacedPacketInfo& cluster_info) {
  rtc::CritScope cs(&modules_crit_);
  // With the new pacer code path, transport sequence numbers are only set here,
  // on the pacer thread. Therefore we don't need atomics/synchronization.
  if (packet->IsExtensionReserved<TransportSequenceNumber>()) {
    packet->SetExtension<TransportSequenceNumber>(AllocateSequenceNumber());
  }
  ......
}

bool RTPSender::TrySendPacket(RtpPacketToSend* packet,
                              const PacedPacketInfo& pacing_info) {
  RTC_DCHECK(packet);
  .....
  // Downstream code actually uses this flag to distinguish between media and
  // everything else.
  if (auto packet_id = packet->GetExtension<TransportSequenceNumber>()) {
    options.packet_id = *packet_id;
    options.included_in_feedback = true;
    options.included_in_allocation = true;
    AddPacketToTransportFeedback(*packet_id, *packet, pacing_info);
  }
  ......
  return true;
}

void RTPSender::AddPacketToTransportFeedback(
    uint16_t packet_id,
    const RtpPacketToSend& packet,
    const PacedPacketInfo& pacing_info) {
  if (transport_feedback_observer_) {
    size_t packet_size = packet.payload_size() + packet.padding_size();
    if (send_side_bwe_with_overhead_) {
      packet_size = packet.size();
    }
    RtpPacketSendInfo packet_info;
    packet_info.ssrc = SSRC();
    packet_info.transport_sequence_number = packet_id;
    packet_info.has_rtp_sequence_number = true;
    packet_info.rtp_sequence_number = packet.SequenceNumber();
    packet_info.length = packet_size;
    packet_info.pacing_info = pacing_info;
    transport_feedback_observer_->OnAddPacket(packet_info);
  }
}

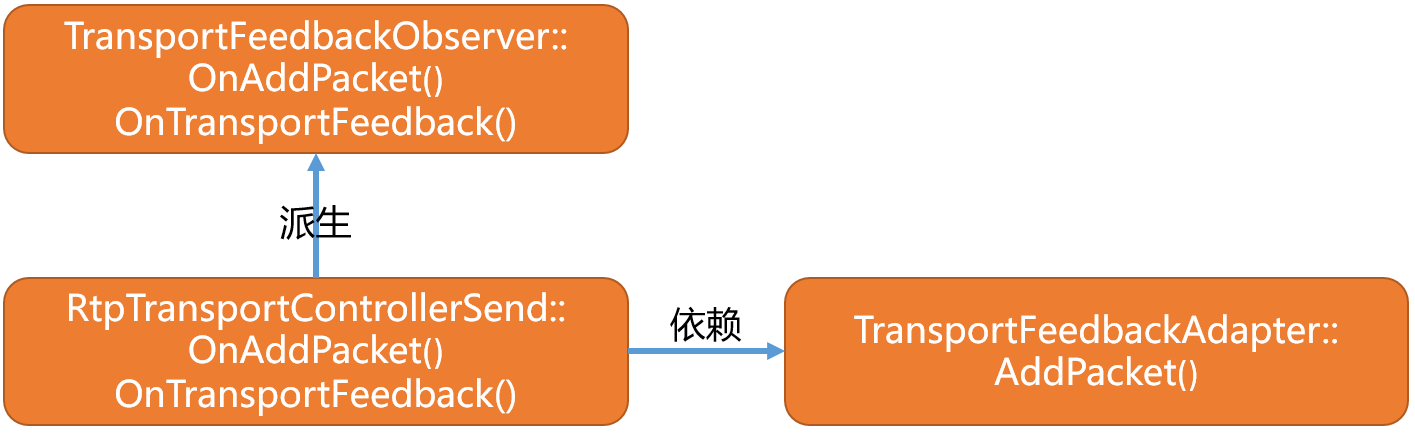

void RtpTransportControllerSend::OnAddPacket(
    const RtpPacketSendInfo& packet_info) {
  transport_feedback_adapter_.AddPacket(
      packet_info,
      send_side_bwe_with_overhead_ ? transport_overhead_bytes_per_packet_.load()
                                    : 0,
      Timestamp::ms(clock_->TimeInMilliseconds()));
}

const int64_t kNoTimestamp = -1;
const int64_t kSendTimeHistoryWindowMs = 60000;

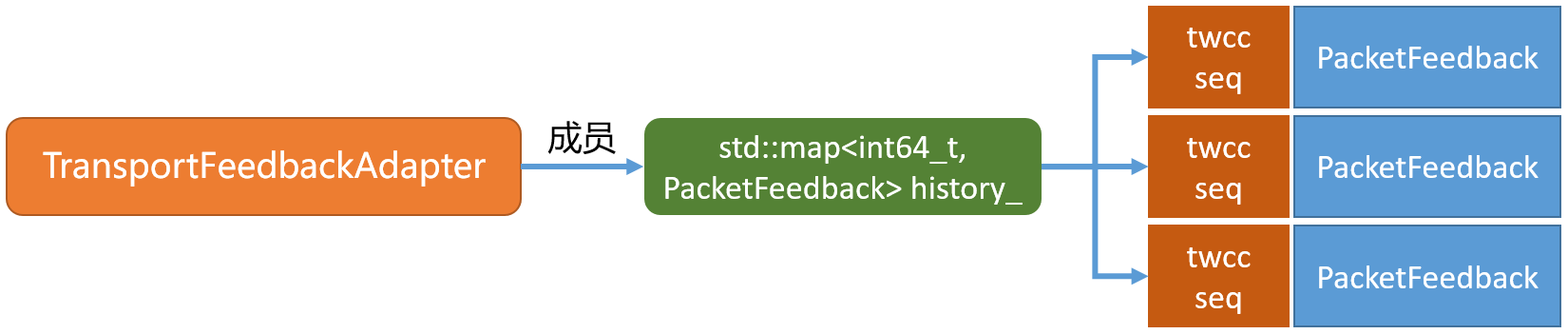

void TransportFeedbackAdapter::AddPacket(const RtpPacketSendInfo& packet_info,
                                          size_t overhead_bytes,
                                          Timestamp creation_time) {
  {
    rtc::CritScope cs(&lock_);
    PacketFeedback packet(creation_time.ms(),
                          packet_info.transport_sequence_number,
                          packet_info.length + overhead_bytes, local_net_id_,
                          remote_net_id_, packet_info.pacing_info);
    if (packet_info.has_rtp_sequence_number) {
      packet.ssrc = packet_info.ssrc;
      packet.rtp_sequence_number = packet_info.rtp_sequence_number;
    }
    packet.long_sequence_number =
        seq_num_unwrapper_.Unwrap(packet.sequence_number);
    /*历史记录的生命周期是当前时间和PacketFeedback包创建的时间的差值小于60000的窗口，
      也就是，历史记录可以保留6秒以内的待发送包信息？，超过该时间窗口的历史记录将被清除*/
    while (!history_.empty() &&
            creation_time.ms() - history_.begin()->second.creation_time_ms >
                packet_age_limit_ms_) {//默认值为kSendTimeHistoryWindowMs,6s的时间窗口
      // TODO(sprang): Warn if erasing (too many) old items?
      RemoveInFlightPacketBytes(history_.begin()->second);
      history_.erase(history_.begin());
    }
    history_.insert(std::make_pair(packet.long_sequence_number, packet));
  }
  ....
}

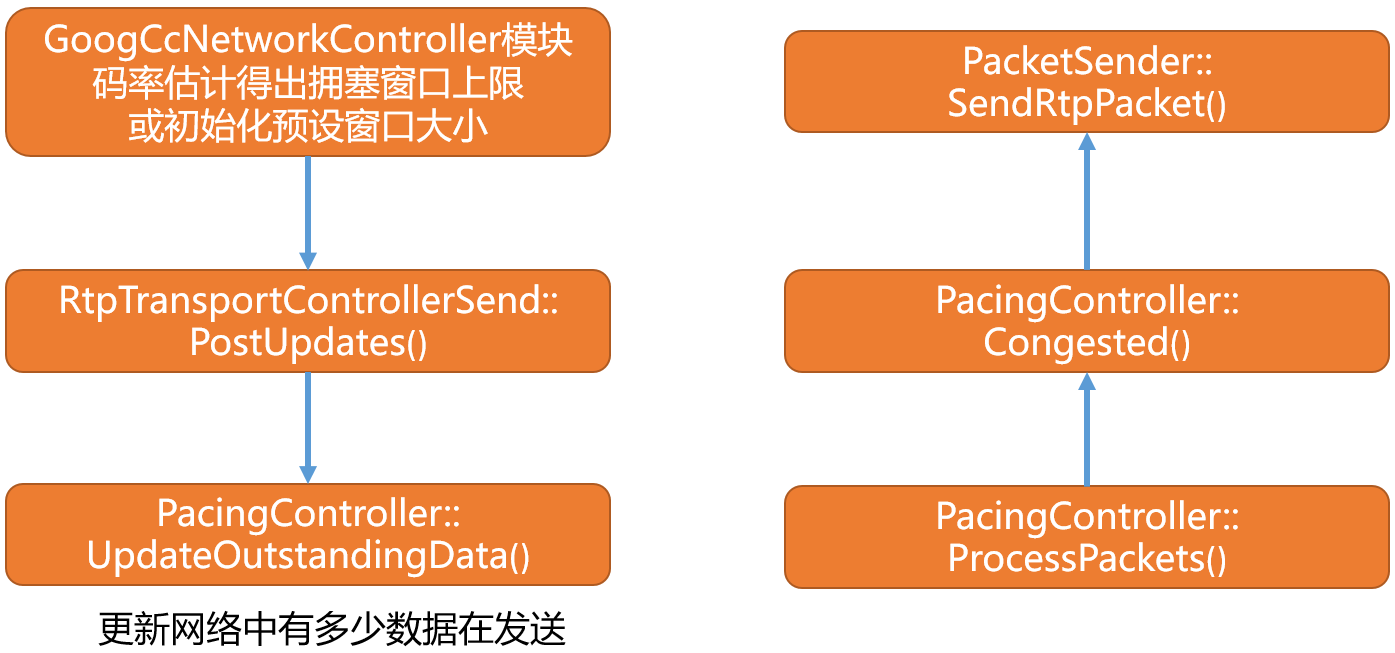

void RtpTransportControllerSend::OnSentPacket(
    const rtc::SentPacket& sent_packet) {
  absl::optional<SentPacket> packet_msg =
      transport_feedback_adapter_.ProcessSentPacket(sent_packet);
  if (packet_msg) {
    task_queue_.PostTask([this, packet_msg]() {
      RTC_DCHECK_RUN_ON(&task_queue_);
      if (controller_)
        PostUpdates(controller_->OnSentPacket(*packet_msg));
    });
  }
  pacer()->UpdateOutstandingData(
      transport_feedback_adapter_.GetOutstandingData());
}

absl::optional<SentPacket> TransportFeedbackAdapter::ProcessSentPacket(
    const rtc::SentPacket& sent_packet) {
  rtc::CritScope cs(&lock_);
  // TODO(srte): Only use one way to indicate that packet feedback is used.
  if (sent_packet.info.included_in_feedback || sent_packet.packet_id != -1) {
    int64_t unwrapped_seq_num =
        seq_num_unwrapper_.Unwrap(sent_packet.packet_id);
    auto it = history_.find(unwrapped_seq_num);
    if (it != history_.end()) {
      bool packet_retransmit = it->second.send_time_ms >= 0;
      it->second.send_time_ms = sent_packet.send_time_ms;
      last_send_time_ms_ =
          std::max(last_send_time_ms_, sent_packet.send_time_ms);
      // TODO(srte): Don't do this on retransmit.
      if (pending_untracked_size_ > 0) {
        if (sent_packet.send_time_ms < last_untracked_send_time_ms_)
          RTC_LOG(LS_WARNING)
              << "appending acknowledged data for out of order packet. (Diff: "
              << last_untracked_send_time_ms_ - sent_packet.send_time_ms
              << " ms.)";
        it->second.unacknowledged_data += pending_untracked_size_;
        pending_untracked_size_ = 0;
      }
      if (!packet_retransmit) {
        AddInFlightPacketBytes(it->second);
        auto packet = it->second;
        SentPacket msg;
        msg.size = DataSize::bytes(packet.payload_size);
        msg.send_time = Timestamp::ms(packet.send_time_ms);
        msg.sequence_number = packet.long_sequence_number;
        msg.prior_unacked_data = DataSize::bytes(packet.unacknowledged_data);
        msg.data_in_flight = GetOutstandingData();
        return msg;
      }
    }
  } else if (sent_packet.info.included_in_allocation) {
    if (sent_packet.send_time_ms < last_send_time_ms_) {
      RTC_LOG(LS_WARNING) << "ignoring untracked data for out of order packet.";
    }
    pending_untracked_size_ += sent_packet.info.packet_size_bytes;
    last_untracked_send_time_ms_ =
        std::max(last_untracked_send_time_ms_, sent_packet.send_time_ms);
  }
  return absl::nullopt;
}

using RemoteAndLocalNetworkId = std::pair<uint16_t, uint16_t>;
std::map<RemoteAndLocalNetworkId, size_t> in_flight_bytes_;

void TransportFeedbackAdapter::AddInFlightPacketBytes(
    const PacketFeedback& packet) {
  ....
  auto it = in_flight_bytes_.find({packet.local_net_id, packet.remote_net_id});
  if (it != in_flight_bytes_.end()) {
    it->second += packet.payload_size;
  } else {
    in_flight_bytes_[{packet.local_net_id, packet.remote_net_id}] =
        packet.payload_size;
  }
}

void TransportFeedbackAdapter::RemoveInFlightPacketBytes(
    const PacketFeedback& packet) {
  ....
  auto it = in_flight_bytes_.find({packet.local_net_id, packet.remote_net_id});
  if (it != in_flight_bytes_.end()) {
    it->second -= packet.payload_size;
    if (it->second == 0)
      in_flight_bytes_.erase(it);
  }
}

DataSize TransportFeedbackAdapter::GetOutstandingData() const {
  rtc::CritScope cs(&lock_);
  auto it = in_flight_bytes_.find({local_net_id_, remote_net_id_});
  if (it != in_flight_bytes_.end()) {
    return DataSize::bytes(it->second);
  } else {
    return DataSize::Zero();
  }
}

NetworkControlUpdate GoogCcNetworkController::OnSentPacket(
    SentPacket sent_packet) {
  alr_detector_->OnBytesSent(sent_packet.size.bytes(),
                              sent_packet.send_time.ms());
  acknowledged_bitrate_estimator_->SetAlr(
      alr_detector_->GetApplicationLimitedRegionStartTime().has_value());
  if (!first_packet_sent_) {
    first_packet_sent_ = true;
    // Initialize feedback time to send time to allow estimation of RTT until
    // first feedback is received.
    bandwidth_estimation_->UpdatePropagationRtt(sent_packet.send_time,
                                                TimeDelta::Zero());
  }
  bandwidth_estimation_->OnSentPacket(sent_packet);
  if (congestion_window_pushback_controller_) {
    congestion_window_pushback_controller_->UpdateOutstandingData(
        sent_packet.data_in_flight.bytes());
    NetworkControlUpdate update;
    MaybeTriggerOnNetworkChanged(&update, sent_packet.send_time);
    return update;
  } else {
    return NetworkControlUpdate();
  }
}

void PacedSender::UpdateOutstandingData(DataSize outstanding_data) {
  rtc::CritScope cs(&critsect_);
  pacing_controller_.UpdateOutstandingData(outstanding_data);
}

void PacingController::UpdateOutstandingData(DataSize outstanding_data) {
  outstanding_data_ = outstanding_data;
}

bool PacingController::Congested() const {
  if (congestion_window_size_.IsFinite()) {
    /*congestion_window_size_为经过GoogCcNetworkController模块动态码率估计后得出的网络拥塞窗口上限，
      经RtpTransportControllerSend::PostUpdates()函数将拥塞窗口上限配置到pacer模块。
    */
    return outstanding_data_ >= congestion_window_size_;
  }
  return false;
}

namespace {
  constexpr int64_t kWindowMs = 500;
}

void IntervalBudget::set_target_rate_kbps(int target_rate_kbps) {
  target_rate_kbps_ = target_rate_kbps;
  max_bytes_in_budget_ = (kWindowMs * target_rate_kbps_) / 8;
  bytes_remaining_ = std::min(std::max(-max_bytes_in_budget_, bytes_remaining_),
                              max_bytes_in_budget_);
}

void IntervalBudget::IncreaseBudget(int64_t delta_time_ms) {
  int64_t bytes = target_rate_kbps_ * delta_time_ms / 8;
  if (bytes_remaining_ < 0 || can_build_up_underuse_) {
    // We overused last interval, compensate this interval.
    bytes_remaining_ = std::min(bytes_remaining_ + bytes, max_bytes_in_budget_);
  } else {
    // If we underused last interval we can't use it this interval.
    bytes_remaining_ = std::min(bytes, max_bytes_in_budget_);
  }
}

void IntervalBudget::UseBudget(size_t bytes) {
  bytes_remaining_ = std::max(bytes_remaining_ - static_cast<int>(bytes),
                              -max_bytes_in_budget_);
}

size_t IntervalBudget::bytes_remaining() const {
  return rtc::saturated_cast<size_t>(std::max<int64_t>(0, bytes_remaining_));
}

void PacingController::ProcessPackets() {
  Timestamp now = CurrentTime();
  Timestamp previous_process_time = last_process_time_;
  TimeDelta elapsed_time = UpdateTimeAndGetElapsed(now);
  if (elapsed_time > TimeDelta::Zero()) {
    ...
    if (mode_ == ProcessMode::kPeriodic) {
      // In periodic processing mode, the IntevalBudget allows positive budget
      // up to (process interval duration) * (target rate), so we only need to
      // update it once before the packet sending loop.
      // 设置当前实时发送速率
      media_budget_.set_target_rate_kbps(target_rate.kbps());
      // 调用IncreaseBudget进行预算计算，假设 elapsed_time为30ms, taeget rate 为240kbps
      UpdateBudgetWithElapsedTime(elapsed_time);
    } else {
      media_rate_ = target_rate;
    }
  }
  ...
  DataSize data_sent = DataSize::Zero();
  // The paused state is checked in the loop since it leaves the critical
  // section allowing the paused state to be changed from other code.
  // 循环发送数据
  while (!paused_) {
    // Fetch the next packet, so long as queue is not empty or budget is not
    // exhausted.
    std::unique_ptr<RtpPacketToSend> rtp_packet =
        GetPendingPacket(pacing_info, target_send_time, now);
    RTC_DCHECK(rtp_packet);
    RTC_DCHECK(rtp_packet->packet_type().has_value());
    const RtpPacketMediaType packet_type = *rtp_packet->packet_type();
    DataSize packet_size = DataSize::Bytes(rtp_packet->payload_size() +
                                            rtp_packet->padding_size());
    ...
    packet_sender_->SendPacket(std::move(rtp_packet), pacing_info);
    for (auto& packet : packet_sender_->FetchFec()) {
      EnqueuePacket(std::move(packet));
    }
    data_sent += packet_size;
    // Send done, update send/process time to the target send time.
    // 每成功发送一包数据后需要将当前发送的数据量调用UseBudget来更新本次循环预算的剩余
    OnPacketSent(packet_type, packet_size, target_send_time);
    // If we are currently probing, we need to stop the send loop when we have
    // reached the send target.
    if (is_probing && data_sent >= recommended_probe_size) {
      break;
    }
  }
  last_process_time_ = std::max(last_process_time_, previous_process_time);
}
