//skynet_mq.c
struct message_queue {
    struct spinlock lock;   //自旋锁，避免多个线程同时向一个队列中 push 消息时导致的竞态问题
    uint32_t handle;    //服务句柄。表明该消息队列具体属于哪个服务
    int cap;            //消息队列的容量
    int head;
    int tail;
    int release;        //是否可以释放信息
    int in_global;      //是否位于全局队列当中
    int overload;       //是否过载
    int overload_threshold; //过载上限
    struct skynet_message *queue;   //指向消息队列中存放消息的一片内存区域
    struct message_queue *next;     //指向下个次级消息队列的指针
};

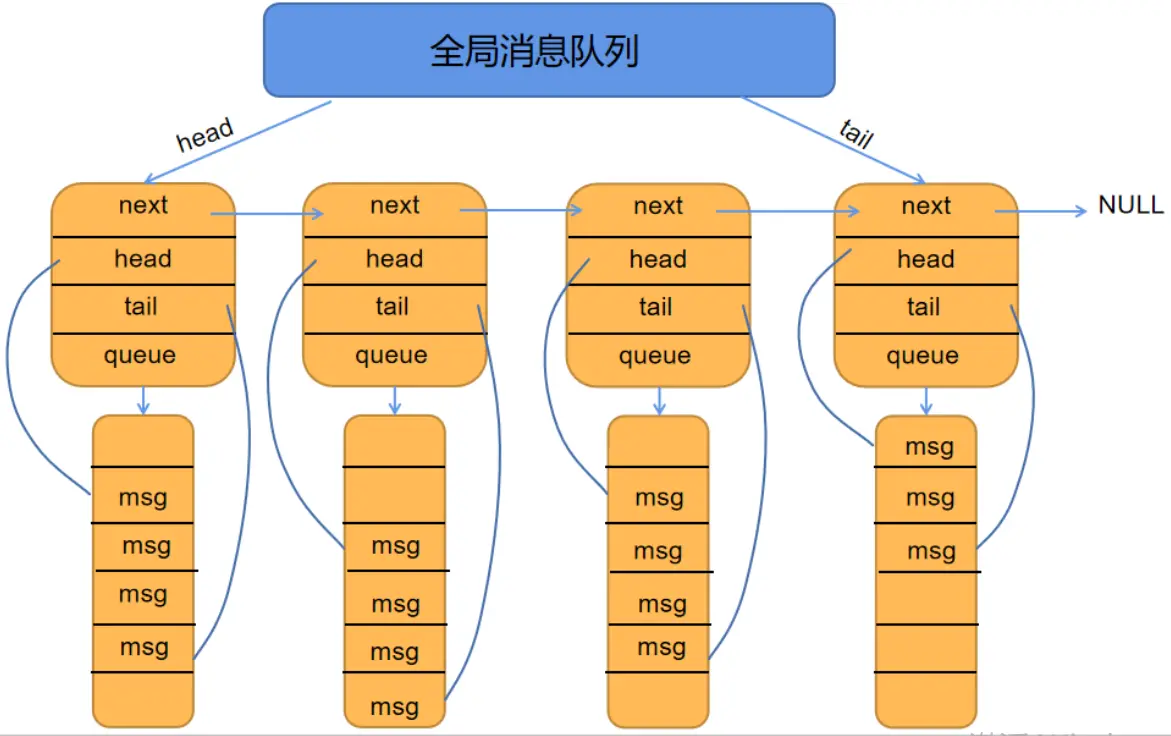

struct global_queue {
    struct message_queue *head;
    struct message_queue *tail;
    struct spinlock lock;
};

//skynet_mq.h
struct skynet_message {
    uint32_t source;    //发送的源地址
    //session 用于将请求包和响应包匹配起来。当一个服务向另一个服务发起请求时，会产生一个 session
    //当响应端处理完毕后，会将 session 原样返回，这样请求端就可以根据 session 找到对应的结果
    int session;
    void * data;
    size_t sz;
};

//skynet_harbor.h
#define GLOBALNAME_LENGTH 16

//remote_name 代表一个远程 skynet 节点。
struct remote_name {
    char name[GLOBALNAME_LENGTH];
    uint32_t handle;
};

struct remote_message {
    struct remote_name destination;
    const void * message;
    size_t sz;
    int type;
};

#define PTYPE_TEXT 0        //文本类型
#define PTYPE_RESPONSE 1    //响应包
#define PTYPE_MULTICAST 2   //组播包
#define PTYPE_CLIENT 3      //客户端消息
#define PTYPE_SYSTEM 4      //系统消息
#define PTYPE_HARBOR 5      //集群内其他的 skynet 节点发来的消息
#define PTYPE_TAG_DONTCOPY 0x10000      //禁止拷贝
#define PTYPE_TAG_ALLOCSESSION 0x20000  //分配新的 session

//skynet_start.c

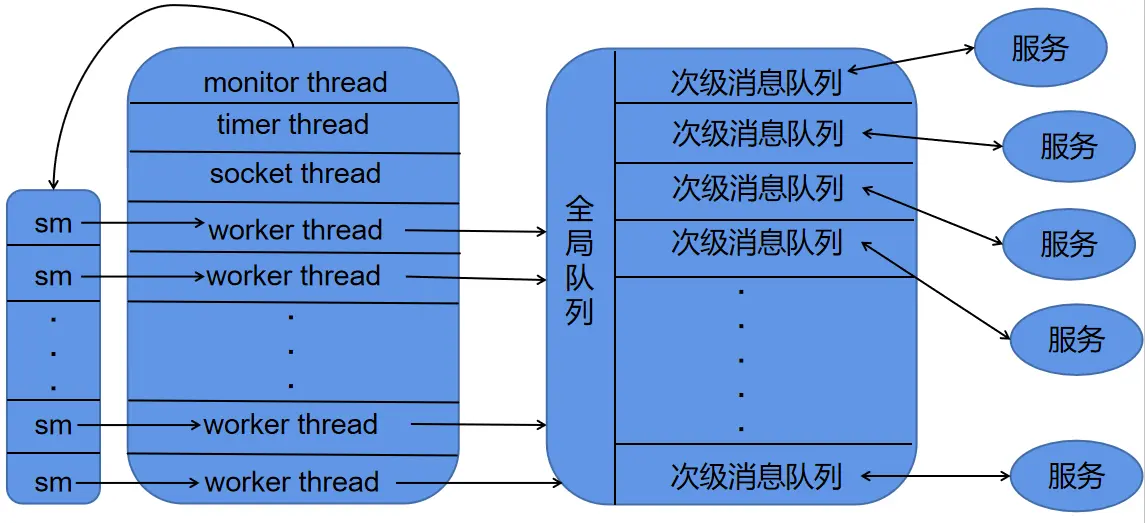

static void* thread_worker(void *p) {
    struct worker_parm *wp = p;
    int id = wp->id;
    int weight = wp->weight;
    struct monitor *m = wp->m;
    struct skynet_monitor *sm = m->m[id];
    skynet_initthread(THREAD_WORKER);
    struct message_queue * q = NULL;

    while (!m->quit) {
        q = skynet_context_message_dispatch(sm, q, weight);
        if (q == NULL) {
            if (pthread_mutex_lock(&m->mutex) == 0) {
                ++ m->sleep;
                // "spurious wakeup" is harmless,
                // because skynet_context_message_dispatch() can be call at any time.
                if (!m->quit)
                    pthread_cond_wait(&m->cond, &m->mutex);
                -- m->sleep;
                if (pthread_mutex_unlock(&m->mutex)) {
                    fprintf(stderr, "unlock mutex error");
                    exit(1);
                }
            }
        }
    }
    return NULL;
}

static void start(int thread) {
    pthread_t pid[thread+3];
    struct monitor *m = skynet_malloc(sizeof(*m));
    memset(m, 0, sizeof(*m));
    m->count = thread;
    m->sleep = 0;
    m->m = skynet_malloc(thread * sizeof(struct skynet_monitor *));

    int i;
    for (i=0;i<thread;i++) {
        m->m[i] = skynet_monitor_new();
    }
    if (pthread_mutex_init(&m->mutex, NULL)) {
        fprintf(stderr, "Init mutex error");
        exit(1);
    }
    if (pthread_cond_init(&m->cond, NULL)) {
        fprintf(stderr, "Init cond error");
        exit(1);
    }

    //创建 monitor 线程负责监视所有的 worker 线程
    create_thread(&pid[0], thread_monitor, m);
    create_thread(&pid[1], thread_timer, m);
    create_thread(&pid[2], thread_socket, m);
    //worker 线程的权重值
    static int weight[] = {
        -1, -1, -1, -1, 0, 0, 0, 0,
        1, 1, 1, 1, 1, 1, 1, 1,
        2, 2, 2, 2, 2, 2, 2, 2,
        3, 3, 3, 3, 3, 3, 3, 3, };

    struct worker_parm wp[thread];

    for (i=0;i<thread;i++) {
        wp[i].m = m;
        wp[i].id = i;
        if (i < sizeof(weight)/sizeof(weight[0])) {
            wp[i].weight= weight[i];
        } else {
            wp[i].weight = 0;
        }
        create_thread(&pid[i+3], thread_worker, &wp[i]);
    }

    for (i=0;i<thread+3;i++) {
        pthread_join(pid[i], NULL);
    }

    free_monitor(m);
}

// skynet_start.c
struct message_queue* skynet_context_message_dispatch(struct skynet_monitor *sm, struct message_queue *q, int weight) {
    //从全局消息队列中取出一个次级消息队列
    if (q == NULL) {
        q = skynet_globalmq_pop();
        if (q==NULL)
            return NULL;
    }

    //获得该次级消息队列所对应的服务的句柄
    uint32_t handle = skynet_mq_handle(q);

    //获取服务上下文
    struct skynet_context * ctx = skynet_handle_grab(handle);

    //若取出的服务没有上下文，则重取一个新的次级消息队列
    if (ctx == NULL) {
        struct drop_t d = { handle };
        skynet_mq_release(q, drop_message, &d);
        return skynet_globalmq_pop();
    }

    int i,n=1;
    struct skynet_message msg;
    //根据不同的权重从消息队列中获得不同数量的消息
    for (i=0;i<n;i++) {
        if (skynet_mq_pop(q,&msg)) {
            skynet_context_release(ctx);
            return skynet_globalmq_pop();
        } else if (i==0 && weight >= 0) {
            n = skynet_mq_length(q);
            n >>= weight;
        }

        int overload = skynet_mq_overload(q);

        if (overload) {
            skynet_error(ctx, "May overload, message queue length = %d", overload);
        }

        skynet_monitor_trigger(sm, msg.source , handle);

        if (ctx->cb == NULL) {
            skynet_free(msg.data);
        } else {
            dispatch_message(ctx, &msg);
        }

        skynet_monitor_trigger(sm, 0,0);
    }

    assert(q == ctx->queue);
    struct message_queue *nq = skynet_globalmq_pop();
    if (nq) {
        // If global mq is not empty , push q back, and return next queue (nq)
        // Else (global mq is empty or block, don't push q back, and return q again (for next dispatch)
        skynet_globalmq_push(q);
        q = nq;
    }

    skynet_context_release(ctx);

    return q;
}

//skynet_server.c
int skynet_send(struct skynet_context * context, uint32_t source, uint32_t destination , int type, int session, void * data, size_t sz) {
    if ((sz & MESSAGE_TYPE_MASK) != sz) {
        skynet_error(context, "The message to %x is too large", destination);
        if (type & PTYPE_TAG_DONTCOPY) {
            skynet_free(data);
        }
        return -2;
    }

    //_filter_args:根据 type 中的 PTYPE_TAG_DONTCOPY 和 PTYPE_TAG_ALLOCSESSION 位域对参数进行一些相应的处理
    // PTYPE_TAG_DONTCOPY：表示不要拷贝 data 的副本，直接在 data 上进行处理
    // PTYPE_TAG_ALLOCSESSION: 表示为消息分配一个新的 session
    _filter_args(context, type, &session, (void **)&data, &sz);
    if (source == 0) {
        source = context->handle;
    }

    if (destination == 0) {
        if (data) {
            skynet_error(context, "Destination address can't be 0");
            skynet_free(data);
            return -1;
        }
        return session;
    }

    if (skynet_harbor_message_isremote(destination)) {
        struct remote_message * rmsg = skynet_malloc(sizeof(*rmsg));
        rmsg->destination.handle = destination;
        rmsg->message = data;
        rmsg->sz = sz & MESSAGE_TYPE_MASK;
        rmsg->type = sz >> MESSAGE_TYPE_SHIFT;
        skynet_harbor_send(rmsg, source, session);
    } else {
        struct skynet_message smsg;
        smsg.source = source;
        smsg.session = session;
        smsg.data = data;
        smsg.sz = sz;
        if (skynet_context_push(destination, &smsg)) {
            skynet_free(data);
            return -1;
        }
    }
    return session;
}

//skynet_start.c
struct monitor {
    int count;      //monitor 所监视的 worker 线程的数量
    struct skynet_monitor ** m; //存放所有的 skynet_monitor 的数组，worker 和 skynet_monitor 一一对应
    pthread_cond_t cond;
    pthread_mutex_t mutex;
    int sleep;  //休眠时间
    int quit;   //退出标志
};

//skynet_monitor.c
struct skynet_monitor {
    int version;            //版本号
    int check_version;      //前一个版本号
    uint32_t source;        //源地址
    uint32_t destination;   //目标地址
};

//skynet_start.c
static void *thread_monitor(void *p) {
    struct monitor * m = p;
    int i;
    int n = m->count;
    skynet_initthread(THREAD_MONITOR);
    for (;;) {
        //CHECK_ABORT : if (G_NODE.total == 0) break;
        CHECK_ABORT
        for (i=0;i<n;i++) {
            skynet_monitor_check(m->m[i]);
        }
        for (i=0;i<5;i++) {
            CHECK_ABORT
            sleep(1);
        }
    }
    return NULL;
}

//skynet_monitor.c
void skynet_monitor_check(struct skynet_monitor *sm) {
    //版本号相同时
    if (sm->version == sm->check_version) {
        //若目标地址不为 0，则 sm 所对应那个 worker 可能陷入了死循环
        if (sm->destination) {
            skynet_context_endless(sm->destination);
            skynet_error(NULL, "A message from [ :%08x ] to [ :%08x ] maybe in an endless loop (version = %d)", sm->source , sm->destination, sm->version);
        }
    } else {
        //版本号不同
        sm->check_version = sm->version;
    }
}

// skynet_start.c
struct message_queue* skynet_context_message_dispatch(struct skynet_monitor *sm, struct message_queue *q, int weight) {
...
        int overload = skynet_mq_overload(q);
        if (overload) {
            skynet_error(ctx, "May overload, message queue length = %d", overload);
        }
        skynet_monitor_trigger(sm, msg.source , handle);
        if (ctx->cb == NULL) {
            skynet_free(msg.data);
        } else {
            dispatch_message(ctx, &msg);
        }
        skynet_monitor_trigger(sm, 0,0);
...
}

//skynet_monitor.c
void skynet_monitor_trigger(struct skynet_monitor *sm, uint32_t source, uint32_t destination) {
    sm->source = source;
    sm->destination = destination;
    //递增 version
    ATOM_INC(&sm->version);
}

struct message_queue * skynet_globalmq_pop() {
    struct global_queue *q = Q;
    SPIN_LOCK(q)
    struct message_queue *mq = q->head;
    if(mq) {
        q->head = mq->next;
        if(q->head == NULL) {
            assert(mq == q->tail);
            q->tail = NULL;
        }
        mq->next = NULL;
    }
    SPIN_UNLOCK(q)
    return mq;
}

void skynet_globalmq_push(struct message_queue * queue) {
    struct global_queue *q= Q;
    SPIN_LOCK(q)
    assert(queue->next == NULL);
    if(q->tail) {
        q->tail->next = queue;
        q->tail = queue;
    } else {
        q->head = q->tail = queue;
    }
    SPIN_UNLOCK(q)
}

void skynet_mq_push(struct message_queue *q, struct skynet_message *message) {
    assert(message);
    SPIN_LOCK(q)
    q->queue[q->tail] = *message;
    if (++ q->tail >= q->cap) {
        q->tail = 0;
    }
    if (q->head == q->tail) {
        expand_queue(q);
    }
    if (q->in_global == 0) {
        q->in_global = MQ_IN_GLOBAL;
        skynet_globalmq_push(q);
    }
    SPIN_UNLOCK(q)
}

int skynet_mq_pop(struct message_queue *q, struct skynet_message *message) {
    int ret = 1;
    SPIN_LOCK(q)
    if (q->head != q->tail) {
        *message = q->queue[q->head++];
        ret = 0;
        int head = q->head;
        int tail = q->tail;
        int cap = q->cap;
        if (head >= cap) {
            q->head = head = 0;
        }
        int length = tail - head;
        if (length < 0) {
            length += cap;
        }
        while (length > q->overload_threshold) {
            q->overload = length;
            q->overload_threshold *= 2;
        }
    } else {
        // reset overload_threshold when queue is empty
        q->overload_threshold = MQ_OVERLOAD;
    }
    if (ret) {
        q->in_global = 0;
    }
    SPIN_UNLOCK(q)
    return ret;
}

//skynet_module.h
//每一个模块都应当提供 create、init、release 以及 signal 等四个接口
typedef void * (*skynet_dl_create)(void);
typedef int (*skynet_dl_init)(void * inst, struct skynet_context *, const char * parm);
typedef void (*skynet_dl_release)(void * inst);
typedef void (*skynet_dl_signal)(void * inst, int signal);

struct skynet_module {
    const char * name; //模块名称
    void * module;     //用于访问对应so库的句柄，由dlopen函数获得
    skynet_dl_create create;
    skynet_dl_init init;
    skynet_dl_release release;
    skynet_dl_signal signal;
};

//skynet_module.c
#define MAX_MODULE_TYPE 32

//modules 列表，用于存放全部用到的 module
struct modules {
    int count;  //存放的 module 的数量
    struct spinlock lock;
    const char * path;  //path由配置文件中的module_path提供
    struct skynet_module m[MAX_MODULE_TYPE];    //存储module的数组
};

static struct modules * M = NULL;

//skynet_server.c:
struct skynet_context {
    void * instance;    //调用模块的 *_create 函数创建对应的服务实例
    struct skynet_module * mod; //指向对应的模块
    void * cb_ud;   //回调函数所需参数
    skynet_cb cb;   //回调函数
    struct message_queue *queue;    //服务所属的消息队列
    FILE * logfile;     //日志文件句柄
    uint64_t cpu_cost;  // in microsec
    uint64_t cpu_start; // in microsec
    char result[32];    //存放回调函数的执行结果
    uint32_t handle;    //位于该上下文环境中的一个服务的句柄
    int session_id;     //session_id 用来将请求和响应匹配起来
    int ref;            //引用计数，当 ref == 0 时回收内存
    int message_count;  //消息队列中消息的数量？
    bool init;          //是否完成了初始化
    bool endless;       //该服务是否是一个无限循环
    bool profile;
    CHECKCALLING_DECL
};

//skynet_module.c
//根据模块名查找对应的模块，如果找不到且 modules 中尚有空间则将模块加载进来
struct skynet_module * skynet_module_query(const char * name) {
    struct skynet_module * result = _query(name);
    if (result)
        return result;
    SPIN_LOCK(M)
    //双重检测可以避免以下情形：两个不同的服务 A 和 B 同时调用了一个服务 C，在 A 查找 C 中的模块时，B 进入自旋等待状态。
    //当 A 调用结束后会将 C 模块插入 modules 中，此时如果 B 再执行插入则会导致重复插入
    result = _query(name); // double check
    if (result == NULL && M->count < MAX_MODULE_TYPE) {
        int index = M->count;
        //返回相应动态库的句柄
        void * dl = _try_open(M,name);
        if (dl) {
            M->m[index].name = name;
            M->m[index].module = dl;
            if (open_sym(&M->m[index]) == 0) {
                M->m[index].name = skynet_strdup(name);
                M->count ++;
                result = &M->m[index];
            }
        }
    }
    SPIN_UNLOCK(M)
    return result;
}

static int open_sym(struct skynet_module *mod) {
    mod->create = get_api(mod, "_create");
    mod->init = get_api(mod, "_init");
    mod->release = get_api(mod, "_release");
    mod->signal = get_api(mod, "_signal");
    return mod->init == NULL;
}

//从动态库中找到对应的 api 并将其函数地址返回
static void* get_api(struct skynet_module *mod, const char *api_name) {
    size_t name_size = strlen(mod->name);
    size_t api_size = strlen(api_name);
    char tmp[name_size + api_size + 1];
    memcpy(tmp, mod->name, name_size);
    memcpy(tmp+name_size, api_name, api_size+1);
    char *ptr = strrchr(tmp, '.');
    if (ptr == NULL) {
        ptr = tmp;
    } else {
        ptr = ptr + 1;
    }
    return dlsym(mod->module, ptr);
}

//skynet_server.c
struct skynet_context* skynet_context_new(const char * name, const char *param) {
    struct skynet_module * mod = skynet_module_query(name);
    if (mod == NULL)
        return NULL;

    void *inst = skynet_module_instance_create(mod);
    if (inst == NULL)
        return NULL;

    struct skynet_context * ctx = skynet_malloc(sizeof(*ctx));
    CHECKCALLING_INIT(ctx)
    ctx->mod = mod;
    ctx->instance = inst;
    //此处将引用置为 2 的原因是因为在 skynet_handle_register 中会将 ctx 保存起来，增加一次引用。
    //之后再将 ctx 返回给对应的变量，增加了一次引用，因此 ref = 2
    ctx->ref = 2;
    ctx->cb = NULL;
    ctx->cb_ud = NULL;
    ctx->session_id = 0;
    ctx->logfile = NULL;
    ctx->init = false;
    ctx->endless = false;
    ctx->cpu_cost = 0;
    ctx->cpu_start = 0;
    ctx->message_count = 0;
    ctx->profile = G_NODE.profile;
    // Should set to 0 first to avoid skynet_handle_retireall get an uninitialized handle
    ctx->handle = 0;
    ctx->handle = skynet_handle_register(ctx);

    struct message_queue * queue = ctx->queue = skynet_mq_create(ctx->handle);
    // init function maybe use ctx->handle, so it must init at last
    context_inc();
    CHECKCALLING_BEGIN(ctx)

    int r = skynet_module_instance_init(mod, inst, ctx, param);
    CHECKCALLING_END(ctx)

    if (r == 0) {
        //skynet_context_release 会在 ctx->ref == 0 时回收这个 context
        struct skynet_context * ret = skynet_context_release(ctx);
        if (ret) {
            ctx->init = true;
        }
        skynet_globalmq_push(queue);
        if (ret) {
            skynet_error(ret, "LAUNCH %s %s", name, param ? param : "");
        }
        return ret;
    } else {
        skynet_error(ctx, "FAILED launch %s", name);
        uint32_t handle = ctx->handle;
        skynet_context_release(ctx);
        skynet_handle_retire(handle);
        struct drop_t d = { handle };
        skynet_mq_release(queue, drop_message, &d);
        return NULL;
    }
}

//skynet_module.c
void* skynet_module_instance_create(struct skynet_module *m) {
    if (m->create) {
        return m->create();
    } else {
        return (void *)(intptr_t)(~0);
    }
}

int skynet_module_instance_init(struct skynet_module *m, void * inst, struct skynet_context *ctx, const char * parm) {
    return m->init(inst, ctx, parm);
}

void skynet_module_instance_release(struct skynet_module *m, void *inst) {
    if (m->release) {
        m->release(inst);
    }
}

void skynet_module_instance_signal(struct skynet_module *m, void *inst, int signal) {
    if (m->signal) {
        m->signal(inst, signal);
    }
}

int main(int argc, char *argv[]) {
    const char * config_file = NULL;

    if (argc > 1) {
        config_file = argv[1];
    } else {
        fprintf(stderr, "Need a config file. Please read skynet wiki : https://github.com/cloudwu/skynet/wiki/Config\n"
            "usage: skynet configfilename\n");
        return 1;
    }
    skynet_globalinit();
    skynet_env_init();
    sigign();
    struct skynet_config config;

#ifdef LUA_CACHELIB
    // init the lock of code cache
    luaL_initcodecache();
#endif

    //创建一个新的 lua 环境，并将 lua 库加载进去, 该函数使用默认分配函数来进行创建
    struct lua_State *L = luaL_newstate();
    luaL_openlibs(L);   // link lua lib

    //将 load_config 加载为 lua 代码块，"t" 表示代码块的类型是文本类型，代码块的名称为 “=[skynet config]”
    int err =  luaL_loadbufferx(L, load_config, strlen(load_config), "=[skynet config]", "t");
    assert(err == LUA_OK);

    //向 lua 的虚拟栈中压入 config_file,作为 load_config 的参数
    lua_pushstring(L, config_file);

    //lua_pcall 的第二个参数表示传递的参数个数，第三个参数表示期望的结果数量，第四个参数表示错误处理函数
    err = lua_pcall(L, 1, 1, 0);

    if (err) {
        //如果出错，则返回存放在虚拟栈栈顶的错误信息
        fprintf(stderr,"%s\n",lua_tostring(L,-1));
        lua_close(L);
        return 1;
    }

    _init_env(L);
    config.thread =  optint("thread",8);
    config.module_path = optstring("cpath","./cservice/?.so");
    config.harbor = optint("harbor", 1);
    config.bootstrap = optstring("bootstrap","snlua bootstrap");
    config.daemon = optstring("daemon", NULL);
    config.logger = optstring("logger", NULL);
    config.logservice = optstring("logservice", "logger");
    config.profile = optboolean("profile", 1);
    lua_close(L);

    skynet_start(&config);
    skynet_globalexit();

    return 0;
}

--config.path 文件
root = "./"
luaservice = root.."service/?.lua;"..root.."test/?.lua;"..root.."examples/?.lua;"..root.."test/?/init.lua"
lualoader = root .. "lualib/loader.lua"
lua_path = root.."lualib/?.lua;"..root.."lualib/?/init.lua"
lua_cpath = root .. "luaclib/?.so"
snax = root.."examples/?.lua;"..root.."test/?.lua"

--config 文件
--include 为 load_config 中定义的脚本调用接口
include "config.path"

-- preload = "./examples/preload.lua"   -- run preload.lua before every lua service run
thread = 8
logger = nil
logpath = "."
harbor = 1
address = "127.0.0.1:2526"
master = "127.0.0.1:2013"
start = "main"  -- main script
bootstrap = "snlua bootstrap"   -- The service for bootstrap
standalone = "0.0.0.0:2013"
-- snax_interface_g = "snax_g"
cpath = root.."cservice/?.so"
-- daemon = "./skynet.pid"

-- load_config 的内容：
local result = {}

--获取相应的环境变量
local function getenv(name) return assert(os.getenv(name), [[os.getenv() failed: ]] .. name) end

--获取路径的分隔符，在 linux 下 sep = /
local sep = package.config:sub(1,1)

--将 . 和 / 合并得到了当前目录的相对路径 ./
local current_path = [[.]]..sep

--定义脚本调用接口 include
local function include(filename)
    local last_path = current_path

    --以最后一个/为分界将 filename 分割为路径 path 和文件名 name
    local path, name = filename:match([[(.*]]..sep..[[)(.*)$]])
    if path then
        --若 path 为绝对路径，则起始字符为 /
        if path:sub(1,1) == sep then    -- root
            current_path = path
        else
            --path 为相对路径的情况
            current_path = current_path .. path
        end
    else
        --若 path 为 nil，则说明 filename 不包含路径
        name = filename
    end

    --打开配置文件
    local f = assert(io.open(current_path .. name))
    --读取配置文件中的所有内容
    local code = assert(f:read [[*a]])

    --如果配置文件中存在形如 $(环境变量) 的字符串，则调用 getenv 将其替换成环境变量的值
    code = string.gsub(code, [[%$([%w_%d]+)]], getenv)
    f:close()

    --将 code 中的内容以文本的形式加载到 result,其中 t 代表文本模式。
    assert(load(code,[[@]]..filename,[[t]],result))()
    current_path = last_path
end

--设置 result 的元表，这样在调用 include 的过程中，如果 result 中没有对应的键则会自动调用 include 函数
setmetatable(result, { __index = { include = include } })

--config_name 是变长参数
local config_name = ...

--使用 include 调用 config_name 脚本
include(config_name)

--调用完 include 后将 result 的元表清除，避免遍历 result 时收到元表的影响
setmetatable(result, nil)

return result

//skynet_env.c
struct skynet_env {
    struct spinlock lock;
    lua_State *L;
};

static struct skynet_env *E = NULL;

void skynet_env_init() {
    E = skynet_malloc(sizeof(*E));
    SPIN_INIT(E)
    E->L = luaL_newstate();
}

//skynet_main.c
static void _init_env(lua_State *L) {
    lua_pushnil(L);  /* first key */
    while (lua_next(L, -2) != 0) {
        int keyt = lua_type(L, -2);
        if (keyt != LUA_TSTRING) {
            fprintf(stderr, "Invalid config table\n");
            exit(1);
        }

        const char * key = lua_tostring(L,-2);

        if (lua_type(L,-1) == LUA_TBOOLEAN) {
            int b = lua_toboolean(L,-1);
            skynet_setenv(key,b ? "true" : "false" );
        } else {
            const char * value = lua_tostring(L,-1);
            if (value == NULL) {
                fprintf(stderr, "Invalid config table key = %s\n", key);
                exit(1);
            }
            skynet_setenv(key,value);
        }

        lua_pop(L,1);
    }

    lua_pop(L,1);
}

int main(int argc, char *argv[]){
    ...
    skynet_env_init();
    ...

    //创建一个新的 lua 环境，并将 lua 库加载进去, 该函数使用默认分配函数来进行创建
    struct lua_State *L = luaL_newstate();
    luaL_openlibs(L);   // link lua lib

    //将 load_config 加载为 lua 代码块，"t" 表示代码块的类型是文本类型，代码块的名称为 “=[skynet config]”
    int err =  luaL_loadbufferx(L, load_config, strlen(load_config), "=[skynet config]", "t");
    assert(err == LUA_OK);

    //向 lua 的虚拟栈中压入 config_file,作为 load_config 的参数
    lua_pushstring(L, config_file);

    //lua_pcall 的第二个参数表示传递的参数个数，第三个参数表示期望的结果数量，第四个参数表示错误处理函数
    err = lua_pcall(L, 1, 1, 0);
    if (err) {
        //如果出错，则返回存放在虚拟栈栈顶的错误信息
        fprintf(stderr,"%s\n",lua_tostring(L,-1));
        lua_close(L);
        return 1;
    }

    //将配置文件的内容添加到环境变量当中
    _init_env(L);

    //opt*(key, value) 函数会以 key 为键值访问环境变量，如果设置了该环境变量则返回对应的值，若没有设置该环境变量则将其设为 value
    config.thread =  optint("thread",8);
    config.module_path = optstring("cpath","./cservice/?.so");
    config.harbor = optint("harbor", 1);
    config.bootstrap = optstring("bootstrap","snlua bootstrap");
    config.daemon = optstring("daemon", NULL);
    config.logger = optstring("logger", NULL);
    config.logservice = optstring("logservice", "logger");
    config.profile = optboolean("profile", 1);
    lua_close(L);

    ...
}

//skynet_env.c
// skynet_env 维护了一个全局的 lua 环境
struct skynet_env {
    struct spinlock lock;
    lua_State *L;
};
static struct skynet_env *E = NULL;

//从全局的 lua 环境中查找全局变量 key
const char*  skynet_getenv(const char *key) {
    SPIN_LOCK(E)
    lua_State *L = E->L;
    lua_getglobal(L, key);
    const char * result = lua_tostring(L, -1);
    lua_pop(L, 1);
    SPIN_UNLOCK(E)
    return result;
}

//将 {key, value} 保存为全局的 lua 环境的全局变量
void skynet_setenv(const char *key, const char *value) {
    SPIN_LOCK(E)
    lua_State *L = E->L;
    lua_getglobal(L, key);
    assert(lua_isnil(L, -1));
    lua_pop(L,1);
    lua_pushstring(L,value);
    lua_setglobal(L,key);
    SPIN_UNLOCK(E)
}

//skynet_main.c
//optboolean 和 optstring 函数的实现逻辑与 optint 相似。
static int optint(const char *key, int opt) {
    const char * str = skynet_getenv(key);
    if (str == NULL) {
        char tmp[20];
        sprintf(tmp,"%d",opt);
        skynet_setenv(key, tmp);
        return opt;
    }
    return strtol(str, NULL, 10);
}

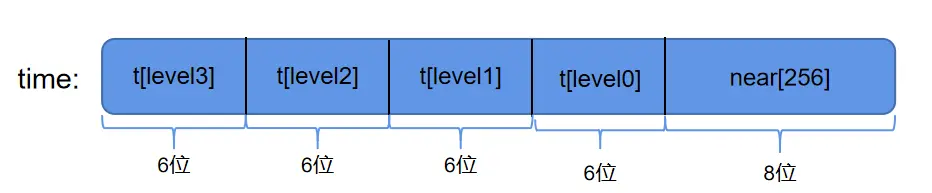

#define TIME_NEAR_SHIFT 8
#define TIME_NEAR (1 << TIME_NEAR_SHIFT)
#define TIME_LEVEL_SHIFT 6
#define TIME_LEVEL (1 << TIME_LEVEL_SHIFT)
// TIME_NEAR_MASK = 0x11111111
#define TIME_NEAR_MASK (TIME_NEAR-1)
// TIME_LEVEL_MASK = 0x111111
#define TIME_LEVEL_MASK (TIME_LEVEL-1)

//超时事件
struct timer_event {
    uint32_t handle;    //标记该超时时间所对应的服务
    int session;        //超时事件发送消息所属的 handle
};

//定时器节点
struct timer_node {
    struct timer_node *next;
    uint32_t expire;    //超时事件
};

//定时器链表
struct link_list {
    struct timer_node head;
    struct timer_node *tail;
};

struct timer {
    struct link_list near[TIME_NEAR];
    struct link_list t[4][TIME_LEVEL];
    struct spinlock lock;
    uint32_t time;
    uint32_t starttime;
    uint64_t current;
    uint64_t current_point;
};

static struct timer * TI = NULL;

//创建一个 timer 结构，并将其中 near 以及 t 链表数组清空
static struct timer* timer_create_timer() {
    struct timer *r=(struct timer *)skynet_malloc(sizeof(struct timer));
    memset(r,0,sizeof(*r));
    int i,j;
    for (i=0;i<TIME_NEAR;i++) {
        link_clear(&r->near[i]);
    }
    for (i=0;i<4;i++) {
        for (j=0;j<TIME_LEVEL;j++) {
            link_clear(&r->t[i][j]);
        }
    }
    SPIN_INIT(r)
    r->current = 0;
    return r;
}

void  skynet_timer_init(void) {
    TI = timer_create_timer();
    uint32_t current = 0;
    systime(&TI->starttime, &current);
    //TI->starttime 保存了当前墙上时间，精确到秒
    //TI->current 从 starttime 启动后到当前的时间，精确到 10 ms
    TI->current = current;
    //TI->current_point 代表是精确到 10 ms的单调时间，表示从系统启动到当前所流失的时间
    TI->current_point = gettime();
}

//获得当前系统的墙上时间，并将其中的整秒部分存入 sec 中，将纳秒部分转化为以 10 ms 为精度的 centisecond,并存入 cs 中
static void systime(uint32_t *sec, uint32_t *cs) {
#if !defined(__APPLE__) || defined(AVAILABLE_MAC_OS_X_VERSION_10_12_AND_LATER)
    struct timespec ti;
    clock_gettime(CLOCK_REALTIME, &ti);
    *sec = (uint32_t)ti.tv_sec;
    *cs = (uint32_t)(ti.tv_nsec / 10000000);
#else
    struct timeval tv;
    gettimeofday(&tv, NULL);
    *sec = tv.tv_sec;
    *cs = tv.tv_usec / 10000;
#endif
}

//获得当前系统的单调时间，并将其转换成为以 10ms 为精度的时间格式
static uint64_t gettime() {
    uint64_t t;
#if !defined(__APPLE__) || defined(AVAILABLE_MAC_OS_X_VERSION_10_12_AND_LATER)
    struct timespec ti;
    clock_gettime(CLOCK_MONOTONIC, &ti);
    t = (uint64_t)ti.tv_sec * 100;
    t += ti.tv_nsec / 10000000;
#else
    struct timeval tv;
    gettimeofday(&tv, NULL);
    t = (uint64_t)tv.tv_sec * 100;
    t += tv.tv_usec / 10000;
#endif
    return t;
}

//skynet_timer.c
static void* thread_timer(void *p) {
    struct monitor * m = p;
    skynet_initthread(THREAD_TIMER);
    for (;;) {
        skynet_updatetime();
        skynet_socket_updatetime();
        CHECK_ABORT
        wakeup(m,m->count-1);
        usleep(2500);
        if (SIG) {
            signal_hup();
            SIG = 0;
        }
    }
    // wakeup socket thread
    skynet_socket_exit();
    // wakeup all worker thread
    pthread_mutex_lock(&m->mutex);
    m->quit = 1;
    pthread_cond_broadcast(&m->cond);
    pthread_mutex_unlock(&m->mutex);
    return NULL;
}

static void add_node(struct timer *T,struct timer_node *node) {
    uint32_t time=node->expire;     //节点的超时时间
    uint32_t current_time=T->time;
    //判断 time 和 current_time 之间的间隔是否小于 256 个 tick(2560ms)
    if ((time|TIME_NEAR_MASK)==(current_time|TIME_NEAR_MASK)) {
        link(&T->near[time&TIME_NEAR_MASK],node);
    } else {
        int i;
        uint32_t mask=TIME_NEAR << TIME_LEVEL_SHIFT;
        //找到合适的 level 添加节点
        for (i=0;i<3;i++) {
            if ((time|(mask-1))==(current_time|(mask-1))) {
                break;
            }
            mask <<= TIME_LEVEL_SHIFT;
        }
        link(&T->t[i][((time>>(TIME_NEAR_SHIFT + i*TIME_LEVEL_SHIFT)) & TIME_LEVEL_MASK)],node);
    }
}

//将 t[level][idx] 中的链表取出，并将其中的节点插入 near 当中
static void move_list(struct timer *T, int level, int idx) {
    struct timer_node *current = link_clear(&T->t[level][idx]);
    while (current) {
        struct timer_node *temp=current->next;
        add_node(T,current);
        current=temp;
    }
}

void skynet_updatetime(void) {
    //获得以 10 ms 为精度的单调时间
    uint64_t cp = gettime();
    if(cp < TI->current_point) {
        skynet_error(NULL, "time diff error: change from %lld to %lld", cp, TI->current_point);
        TI->current_point = cp;
    } else if (cp != TI->current_point) {
        //获得时间差
        uint32_t diff = (uint32_t)(cp - TI->current_point);
        TI->current_point = cp;
        //更新 timer 的运行时间
        TI->current += diff;
        int i;
        for (i=0;i<diff;i++) {
            timer_update(TI);
        }
    }
}

static void timer_update(struct timer *T) {
    SPIN_LOCK(T);
    // try to dispatch timeout 0 (rare condition)
    timer_execute(T);   //看看 near[T->time & TIME_NEAR_MASK] 中的链表是否为空
    // shift time first, and then dispatch timer message
    timer_shift(T); //移动链表，将 t 中链表移动值
    timer_execute(T);
    SPIN_UNLOCK(T);
}

static inline void timer_execute(struct timer *T) {
    //取出 time 的低 8 位，idx 代表了当前超时
    int idx = T->time & TIME_NEAR_MASK;
    while (T->near[idx].head.next) {
        struct timer_node *current = link_clear(&T->near[idx]);
        SPIN_UNLOCK(T);
        // dispatch_list don't need lock T
        dispatch_list(current);
        SPIN_LOCK(T);
    }
}

static void timer_shift(struct timer *T) {
    int mask = TIME_NEAR;
    uint32_t ct = ++T->time;
    //ct == 0 代表发生了溢出
    if (ct == 0) {
        //将 t[3][0] 中链表取出并依次添加
        move_list(T, 3, 0);
    } else {
        uint32_t time = ct >> TIME_NEAR_SHIFT;
        int i=0;
        while ((ct & (mask-1))==0) {
            int idx=time & TIME_LEVEL_MASK;
            if (idx!=0) {
                move_list(T, i, idx);
                break;
            }
            mask <<= TIME_LEVEL_SHIFT;
            time >>= TIME_LEVEL_SHIFT;
            ++i;
        }
    }
}
