void PacedSender::SetEstimatedBitrate(uint32_t bitrate_bps) {
  if (bitrate_bps == 0)
    LOG(LS_ERROR) << "PacedSender is not designed to handle 0 bitrate.";
  CriticalSectionScoped cs(critsect_.get());
  estimated_bitrate_bps_ = bitrate_bps;
  padding_budget_->set_target_rate_kbps(estimated_bitrate_bps_ / 1000 );
  // 更新 pacing 发送速率，为 estimated_bitrate_bps_/1000 * 2.5;
  pacing_bitrate_kbps_ =
      max(min_send_bitrate_kbps_, estimated_bitrate_bps_ / 1000) *
      kDefaultPaceMultiplier;
  alr_detector_->SetEstimatedBitrate(bitrate_bps);
}

// 将视频包元信息，instert到pacer中
void PacedSender::InsertPacket(RtpPacketSender::Priority priority,
                                uint32_t ssrc,
                                uint16_t sequence_number,
                                int64_t capture_time_ms,
                                size_t bytes,
                                bool retransmission) {
  CriticalSectionScoped cs(critsect_.get());
  DCHECK(estimated_bitrate_bps_ > 0)
        << "SetEstimatedBitrate must be called before InsertPacket.";
  int64_t now_ms = clock_->TimeInMilliseconds();
  prober_->OnIncomingPacket(bytes);
  if (capture_time_ms < 0)
    capture_time_ms = now_ms;
  // 封装 packet 包，放到list中 packets_
  packets_->Push(paced_sender::Packet(priority, ssrc, sequence_number,
                                      capture_time_ms, now_ms, bytes,
                                      retransmission, packet_counter_++));
}

// 用于获取下次Process方法被调用的时间间隔，以毫秒计。其内部调用BitrateProber的
// TimeUntilNextProbe方法来计算。
int64_t PacedSender::TimeUntilNextProcess() {
  rtc::CritScope cs(&critsect_);
  //当前时间减去上次Process调用时间点来计算出elapsed_time_us,单位为微秒
  int64_t elapsed_time_us =
      clock_->TimeInMicroseconds() - time_last_process_us_;
  int64_t elapsed_time_ms = (elapsed_time_us + 500) / 1000; //求整
  // When paused we wake up every 500 ms to send a padding packet to ensure
  // we won't get stuck in the paused state due to no feedback being received.
  if (paused_)
    return std::max<int64_t>(kPausedProcessIntervalMs - elapsed_time_ms, 0);

  if (prober_->IsProbing()) {
    // 通过BitrateProber获得下次执行Process的时机,详见BitrateProbe
    int64_t ret = prober_->TimeUntilNextProbe(clock_->TimeInMilliseconds());
    if (ret > 0 || (ret == 0 && !probing_send_failure_))
      return ret; //返回下次执行Process的需等待时间间隔
  }
  // 若当前没有开启探测，则使用默认值，最小等待间隔kMinPacketLimitMs减去已消逝
  // 时间间隔。
  return std::max<int64_t>(kMinPacketLimitMs - elapsed_time_ms, 0);
}

/**

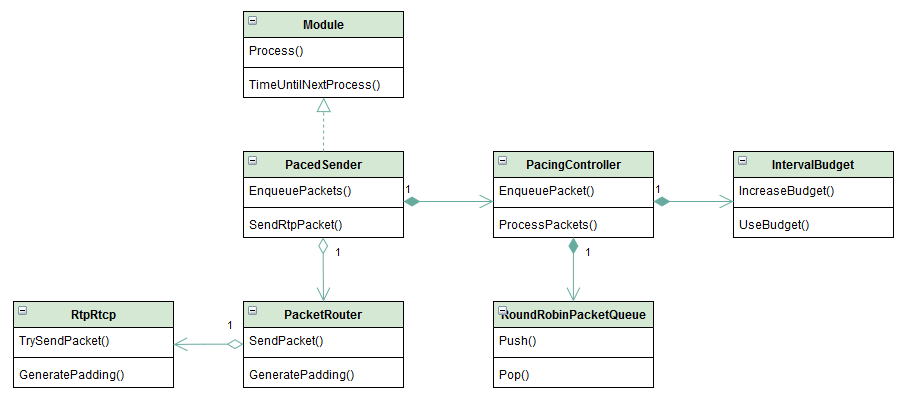

 * Process方法是PacedSender的主发送线程，在Process方法内没有while循环和wait机制
 * ，其是由其他模块在外部驱动的。具体可参考call/rtp_transport_controller_send.cc
 * 中有关PacedSender是如何作为一个module注册到process thread中的，以及是如何在
 * ProcessThread中对各module的Process方法进行驱动的。因为PacedSender继承于Pacer，
 * 而Pacer类又继承于module.
 * 调用Process的模块每次都会等待一个时间间隔，此时间间隔是由BitrateProbe模块来
 * 探测出来的。具体可参考BitrateProbe代码走读部分.
 * Process方法的主要功能就是SendPacket及更新预算。具体在下面代码中讲解。
 */
void PacedSender::Process() {
  int64_t now_us = clock_->TimeInMicroseconds();
  rtc::CritScope cs(&critsect_);
  time_last_process_us_ = now_us;
  // last_send_time_us_是上次Process方法被执行时的时间点，elapsed_time_ms是上次
  // Process方法调用与本次调用的时间间隔，以毫秒计。
  int64_t elapsed_time_ms = (now_us - last_send_time_us_ + 500) / 1000;
  if (elapsed_time_ms > kMaxElapsedTimeMs) {
    RTC_LOG(LS_WARNING) << "Elapsed time (" << elapsed_time_ms
                        << " ms) longer than expected, limiting to "
                        << kMaxElapsedTimeMs << " ms";
    elapsed_time_ms = kMaxElapsedTimeMs;// 最大不能超过2秒，否则作修正。
  }
  // When congested we send a padding packet every 500 ms to ensure we won't get
  // stuck in the congested state due to no feedback being received.
  // TODO(srte): Stop sending packet in paused state when pause is no longer
  // used for congestion windows.
  // 先忽略。。
  if (paused_ || Congested()) {
    // We can not send padding unless a normal packet has first been sent. If we
    // do, timestamps get messed up.
    if (elapsed_time_ms >= kCongestedPacketIntervalMs && packet_counter_ > 0) {
      PacedPacketInfo pacing_info;
      size_t bytes_sent = SendPadding(1, pacing_info);
      alr_detector_->OnBytesSent(bytes_sent, elapsed_time_ms);
      last_send_time_us_ = clock_->TimeInMicroseconds();
    }
    return;
  }

  int target_bitrate_kbps = pacing_bitrate_kbps_;
  if (elapsed_time_ms > 0) {
    size_t queue_size_bytes = packets_->SizeInBytes();
    if (queue_size_bytes > 0) { // 有数据包待发送
      // Assuming equal size packets and input/output rate, the average packet
      // has avg_time_left_ms left to get queue_size_bytes out of the queue, if
      // time constraint shall be met. Determine bitrate needed for that.
      packets_->UpdateQueueTime(clock_->TimeInMilliseconds());
      int64_t avg_time_left_ms = std::max<int64_t>(
          1, queue_time_limit - packets_->AverageQueueTimeMs());
      int min_bitrate_needed_kbps =
          static_cast<int>(queue_size_bytes * 8 / avg_time_left_ms);
      if (min_bitrate_needed_kbps > target_bitrate_kbps)
        target_bitrate_kbps = min_bitrate_needed_kbps;
    }
    // 更新media_budget的目标带宽
    media_budget_->set_target_rate_kbps(target_bitrate_kbps);
    // 更新预算
    UpdateBudgetWithElapsedTime(elapsed_time_ms);
  }

  last_send_time_us_ = clock_->TimeInMicroseconds();

  bool is_probing = prober_->IsProbing();
  PacedPacketInfo pacing_info;
  size_t bytes_sent = 0;
  size_t recommended_probe_size = 0;
  if (is_probing) {
    // 若当前间隔探测器有效，获取第一个cluster的pacing_info信息，每一个带宽值
    // 的探测对应一个Cluster,详见BitrateProber相关代码走读。
    pacing_info = prober_->CurrentCluster();
    // 推荐的最小探测间隔是2ms， recommended_probe_size是2ms的依当前带宽的数据量
    // 用法见下面while循环
    recommended_probe_size = prober_->RecommendedMinProbeSize();
  }
  // The paused state is checked in the loop since SendPacket leaves the
  // critical section allowing the paused state to be changed from other code.
  // 循环发送packets_队列中的RTP包，直到探测结束或bytes_sent >
  // recommended_probe_size,
  // 即本轮发送的字节总数超过了推荐探测间隔对应的字节数，因recommended_probe_size
  // 值代表2ms的数据量，此值比较小，所以一般while循环内只发送一次packet就会停止。
  while (!packets_->Empty() && !paused_ && !Congested()) {
    // Since we need to release the lock in order to send, we first pop the
    // element from the priority queue but keep it in storage, so that we can
    // reinsert it if send fails.
    // 从packets_队列中取出一个待发送RTP包(此时仅取出但不从队列中移除)
    const PacketQueueInterface::Packet& packet = packets_->BeginPop();
    // 发送pop出来的RTP数据包，其内由media_budget模块的bytes_remaining变量值来
    // 决定是否应该发送此RTP数据包，bytes_remaining用于表示本次剩余或理应发送的
    // 数据量。详见IntervalBudget相关代码
    if (SendPacket(packet, pacing_info)) {
      bytes_sent += packet.bytes;
      // Send succeeded, remove it from the queue.
      // 数据真正发送成功后，才将其从队列中移出。
      packets_->FinalizePop(packet);
      if (is_probing && bytes_sent > recommended_probe_size)
        break;
    } else {
      // Send failed, put it back into the queue.
      // 当发送数据失败，如上次发送数据量过多，本轮不应发送，则取消从队列中pop
      packets_->CancelPop(packet);
      break;
    }
  }

  // 依需要发送填充包，暂时忽略。。。
  if (packets_->Empty() && !Congested()) {
    // We can not send padding unless a normal packet has first been sent. If we
    // do, timestamps get messed up.
    if (packet_counter_ > 0) {
      int padding_needed =
          static_cast<int>(is_probing ? (recommended_probe_size - bytes_sent)
                                      : padding_budget_->bytes_remaining());
      if (padding_needed > 0) {
        bytes_sent += SendPadding(padding_needed, pacing_info);
      }
    }
  }
  // 通过已发送数据字节数bytes_sent和当前时间来更新bitrate probe以计算出下次
  // Process方法调用时间点
  if (is_probing) {
    probing_send_failure_ = bytes_sent == 0;
    if (!probing_send_failure_)
      // 详见BitrateProbe中的ProbeSent代码走读，主要用于探测下次Process方法的调
      // 用时间点
      prober_->ProbeSent(clock_->TimeInMilliseconds(), bytes_sent);
  }
  // 忽略...
  alr_detector_->OnBytesSent(bytes_sent, elapsed_time_ms);
}

bool PacedSender::SendPacket(const paced_sender::Packet& packet,
                              const PacedPacketInfo& pacing_info) {
    // 是否暂停发包
    if (paused_)
    return false;
    //  media  budget 剩余预算字节数为 0，停止发包
  if (media_budget_->bytes_remaining() == 0 &&
      pacing_info.probe_cluster_id == PacedPacketInfo::kNotAProbe) {
    return false;
  }
  critsect_->Enter();
  const bool success = packet_sender_->TimeToSendPacket(
      packet.ssrc, packet.sequence_number, packet.capture_time_ms,
      packet.retransmission, pacing_info);
  critsect_->Leave();
  if (success) {
    // TODO(holmer): High priority packets should only be accounted for if we
    // are allocating bandwidth for audio.
    if (packet.priority != kHighPriority) { // 包的优先级不为最高优先级，更新发送的字节数
      // Update media bytes sent.
      UpdateBudgetWithBytesSent(packet.bytes);
    }
  }
  return success;
}

class IntervalBudget {
  public:
  explicit IntervalBudget(int initial_target_rate_kbps)
      : target_rate_kbps_(initial_target_rate_kbps),
        bytes_remaining_(0) {}
  void set_target_rate_kbps(int target_rate_kbps) {
    //更新发送速率
    target_rate_kbps_ = target_rate_kbps;
      bytes_remaining_ =
        max(-kWindowMs * target_rate_kbps_ / 8, bytes_remaining_);
  }
  void IncreaseBudget(int64_t delta_time_ms) {
    // 估计在 delta 时间， 在带宽为 target_rate_kbps 的情况可以发送出去多少字节
    int64_t bytes = target_rate_kbps_ * delta_time_ms / 8;
    if (bytes_remaining_ < 0) {
      // We overused last interval, compensate this interval.
      bytes_remaining_ = bytes_remaining_ + bytes;
    } else {
      // If we underused last interval we can't use it this interval.
      bytes_remaining_ = bytes;
    }
  }
  //更新实际发送的字节数， 从bytes_remaining_减去
  void UseBudget(size_t bytes) {
    bytes_remaining_ = max(bytes_remaining_ - static_cast<int>(bytes),
                                -kWindowMs * target_rate_kbps_ / 8);
  }
  // 几次发送循环后，发送的总字节数大于开始的 bytes_remaining_，bytes_remaining_ <= 0，改方法返回0
  size_t bytes_remaining() const {
    return static_cast<size_t>(max(0, bytes_remaining_));
  }
  int target_rate_kbps() const { return target_rate_kbps_; }
  private:
  static const int kWindowMs = 500; // window 500 ms
  int target_rate_kbps_;
  int bytes_remaining_;
};
