前言1

什么是bgfx？引用Readme中的一段话：

Cross-platform, graphics API agnostic, “Bring Your Own Engine/Framework” style rendering library.

Supported rendering backends:

Supported platforms:

Supported compilers:

Languages:

前言2

在分析之前，先看下opengl的是画一个三角形的例子

int main()
{
    ...
    // Define the viewport dimensions
    int width, height;
    glfwGetFramebufferSize(window, &width, &height);
    glViewport(0, 0, width, height);

    // Build and compile our shader program
    // Vertex shader
    GLuint vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);
    // Check for compile time errors
    GLint success;
    GLchar infoLog[512];
    glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
    }

    // Fragment shader
    GLuint fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);
    // Check for compile time errors
    glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
    if (!success)
    {
        glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
    }

    // Link shaders
    GLuint shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    // Check for linking errors
    glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
    if (!success) {
        glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
        std::cout << "ERROR::SHADER::PROGRAM::LINKING_FAILED\n" << infoLog << std::endl;
    }
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    // Set up vertex data (and buffer(s)) and attribute pointers
    GLfloat vertices[] = {
        -0.5f, -0.5f, 0.0f, // Left
         0.5f, -0.5f, 0.0f, // Right
         0.0f,  0.5f, 0.0f  // Top
    };
    GLuint indices[] = {  // Note that we start from 0!
        0, 1, 3
    };

    GLuint VBO, VAO, EBO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glGenBuffers(1, &EBO);
    // Bind the Vertex Array Object first, then bind and set vertex buffer(s) and attribute pointer(s).
    glBindVertexArray(VAO);
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBO);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (GLvoid*)0);
    glEnableVertexAttribArray(0);
    glBindBuffer(GL_ARRAY_BUFFER, 0); // Note that this is allowed, the call to glVertexAttribPointer registered VBO as the currently bound vertex buffer object so afterwards we can safely unbind
    glBindVertexArray(0); // Unbind VAO (it's always a good thing to unbind any buffer/array to prevent strange bugs), remember: do NOT unbind the EBO, keep it bound to this VAO

    // Uncommenting this call will result in wireframe polygons.
    //glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
    // Game loop
    while (!glfwWindowShouldClose(window))
    {
        // Check if any events have been activiated (key pressed, mouse moved etc.) and call corresponding response functions
        glfwPollEvents();
        // Render
        // Clear the colorbuffer
        glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);
        // Draw our first triangle
        glUseProgram(shaderProgram);
        glBindVertexArray(VAO);
        //glDrawArrays(GL_TRIANGLES, 0, 6);
        glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);
        glBindVertexArray(0);
        // Swap the screen buffers
        glfwSwapBuffers(window);
    }

    // Properly de-allocate all resources once they've outlived their purpose
    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteBuffers(1, &EBO);
    // Terminate GLFW, clearing any resources allocated by GLFW.
    glfwTerminate();
    return 0;
}

具体步骤如下：

思考下如果自己实现一个跨平台渲染引擎会是怎么样的？

想做跨平台，需要对VAO、VBO、EBO、shader、program抽象为平台无关对象，当然还包括Texture、Framebuffer、Window等。抽象的对象最终转为后端渲染引擎渲染指令，这是一项复杂有细致的工作，需要对各个平台渲染引擎十分的熟悉。

一、整体框架

bgfx库分为三个git：

bgfx
bx
bimg

其整体框架如下所示：

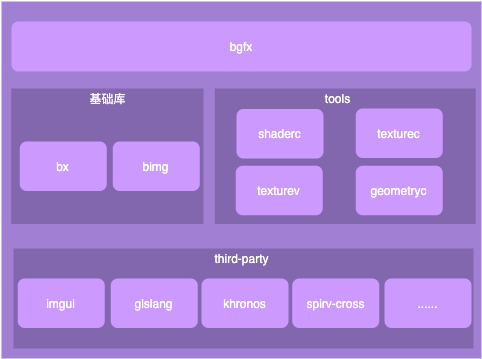

整体框架

本文主要关注bgfx层，继续看bgfx层的框架：

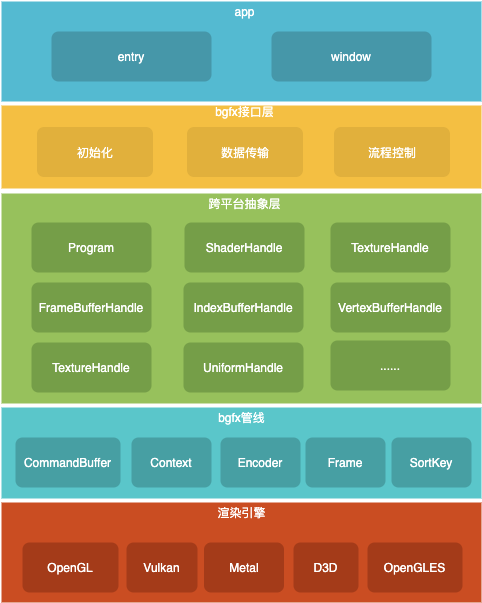

bgfx框架

从下至上

  1. 入口层：提供各个平台的入口脚手架，各个平台相关窗口的创建；
  2. 接口层：提供bgfx初始化、数据传输、流程控制；
  3. 跨平台抽象层：对后端引擎使用的数据进行抽象；
  4. bfgx管线：将渲染指令写入bgfx管线，排序，解析渲染指令；

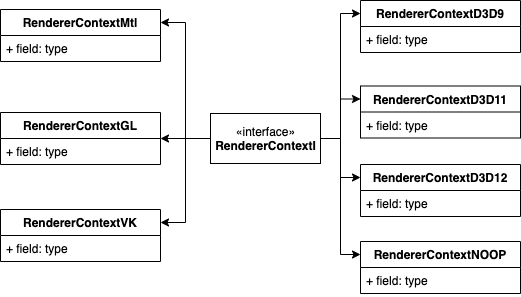

  5. 后端渲染引擎：包含渲染引擎opengl、opengles、vulkan、metal、direct3d的抽象和实现。

二、入口

2.1 控制流程

入口和窗口创建好之后，继续看整个流程控制是怎么样的：

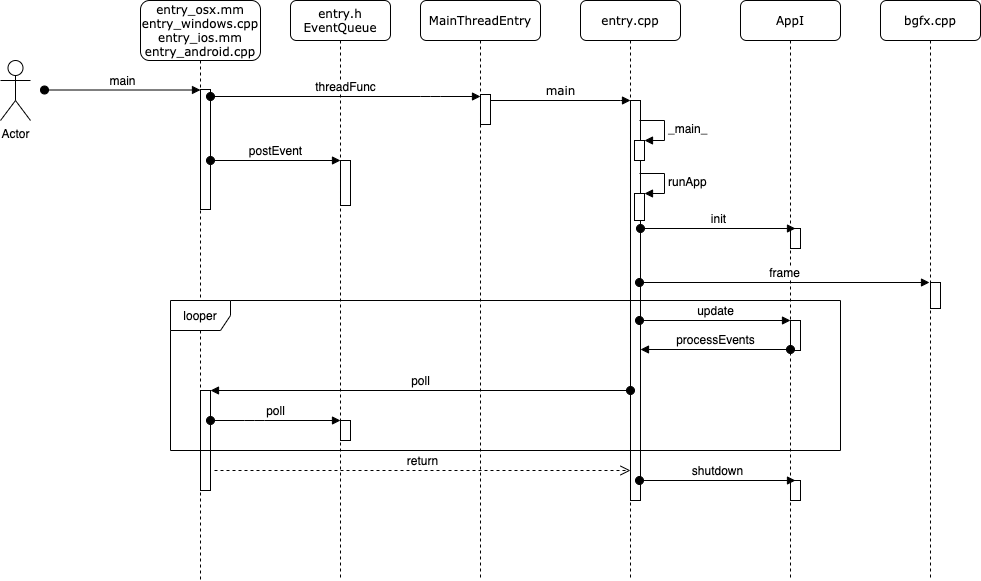

入口流程图

2.2 程序入口

2.2.1 Android

需要编译native_activity，通过继承NativeActivity引入无java层代码的app，入口函数为android_main，代码如下：

extern "C" void android_main(android_app* _app)
{
    using namespace entry;
    s_ctx.run(_app);
}
2.2.2 IOS

直接通过UIApplication初始化，代码如下

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
    BX_UNUSED(application, launchOptions);
    CGRect rect = [ [UIScreen mainScreen] bounds];
    m_window = [ [UIWindow alloc] initWithFrame: rect];
    m_view = [ [View alloc] initWithFrame: rect];
    [m_window addSubview: m_view];
    UIViewController *viewController = [[ViewController alloc] init];
    viewController.view = m_view;
    [m_window setRootViewController:viewController];
    [m_window makeKeyAndVisible];
    [m_window makeKeyAndVisible];
    float scaleFactor = [[UIScreen mainScreen] scale];
    [m_view setContentScaleFactor: scaleFactor ];
    s_ctx = new Context((uint32_t)(scaleFactor*rect.size.width), (uint32_t)(scaleFactor*rect.size.height));
    return YES;
}

2.3 窗口创建

图形显示首先需要创建一个窗口native window，平台相关

2.3.1 Android

android_app结构体会自带window变量，设置给bgfx即可，代码如下

m_window = m_app->window;
androidSetWindow(m_window);

inline void androidSetWindow(::ANativeWindow* _window)
{
  bgfx::PlatformData pd;
  pd.ndt          = NULL;
  pd.nwh          = _window;
  pd.context      = NULL;
  pd.backBuffer   = NULL;
  pd.backBufferDS = NULL;
  bgfx::setPlatformData(pd);
}
2.3.2 IOS

window是由view的layer初始化，代码如下

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
    BX_UNUSED(application, launchOptions);
    CGRect rect = [ [UIScreen mainScreen] bounds];
    m_window = [ [UIWindow alloc] initWithFrame: rect];
    m_view = [ [View alloc] initWithFrame: rect];
    [m_window addSubview: m_view];
    UIViewController *viewController = [[ViewController alloc] init];
    viewController.view = m_view;
    [m_window setRootViewController:viewController];
    [m_window makeKeyAndVisible];
    [m_window makeKeyAndVisible];
    float scaleFactor = [[UIScreen mainScreen] scale];
    [m_view setContentScaleFactor: scaleFactor ];
    s_ctx = new Context((uint32_t)(scaleFactor*rect.size.width), (uint32_t)(scaleFactor*rect.size.height));
    return YES;
}

- (id)initWithFrame:(CGRect)rect
{
    self = [super initWithFrame:rect];
    if (nil == self)
    {
        return nil;
    }
    bgfx::PlatformData pd;
    pd.ndt          = NULL;
    pd.nwh          = self.layer;
    pd.context      = m_device;
    pd.backBuffer   = NULL;
    pd.backBufferDS = NULL;
    bgfx::setPlatformData(pd);
    return self;
}

2.4 entry.cpp

初始化完成后进入entry.cpp的main函数，代码如下：

int main(int _argc, const char* const* _argv)
{
    ......
restart:
    AppI* selected = NULL;
    for (AppI* app = getFirstApp(); NULL != app; app = app->getNext() )
    {
        if (NULL == selected
        &&  !bx::strFindI(app->getName(), find).isEmpty() )
        {
            selected = app;
        }
    }

    int32_t result = bx::kExitSuccess;
    s_restartArgs[0] = '\0';
    if (0 == s_numApps)
    {
        result = ::_main_(_argc, (char**)_argv);
    }
    else
    {
        result = runApp(getCurrentApp(selected), _argc, _argv);
    }

    if (0 != bx::strLen(s_restartArgs) )
    {
        find = s_restartArgs;
        goto restart;
    }

    setCurrentDir("");
    inputRemoveBindings("bindings");
    inputShutdown();
    cmdShutdown();
    BX_DELETE(g_allocator, s_fileReader);
    s_fileReader = NULL;
    BX_DELETE(g_allocator, s_fileWriter);
    s_fileWriter = NULL;
    return result;
}

实现一个基于bgfx的app需要继承AppI接口，其流程交给entry.cpp处理，主要负责几个部分：

三、绘制流程分析

程序启动后，开始绘制，先看下关键类图：

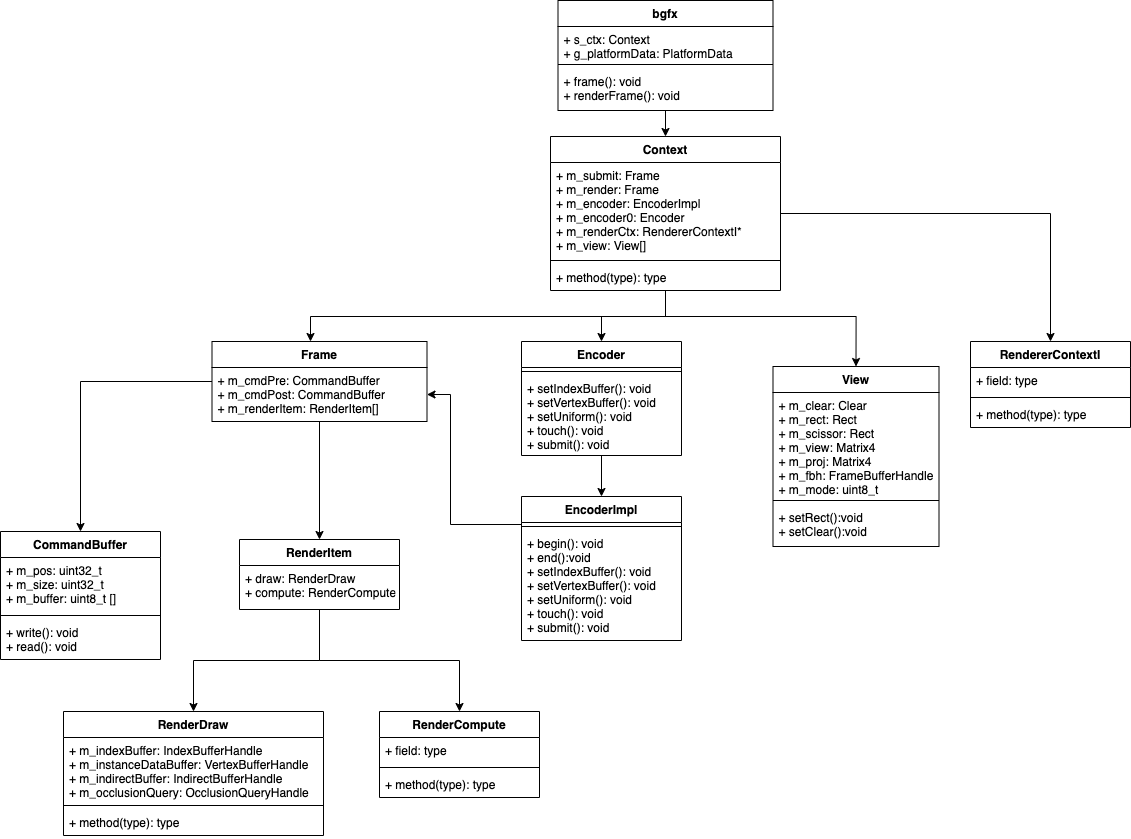

bgfx-类结构图

每个模块的功能如下：

通过bgfx绘制一个立方体，其流程图如下：

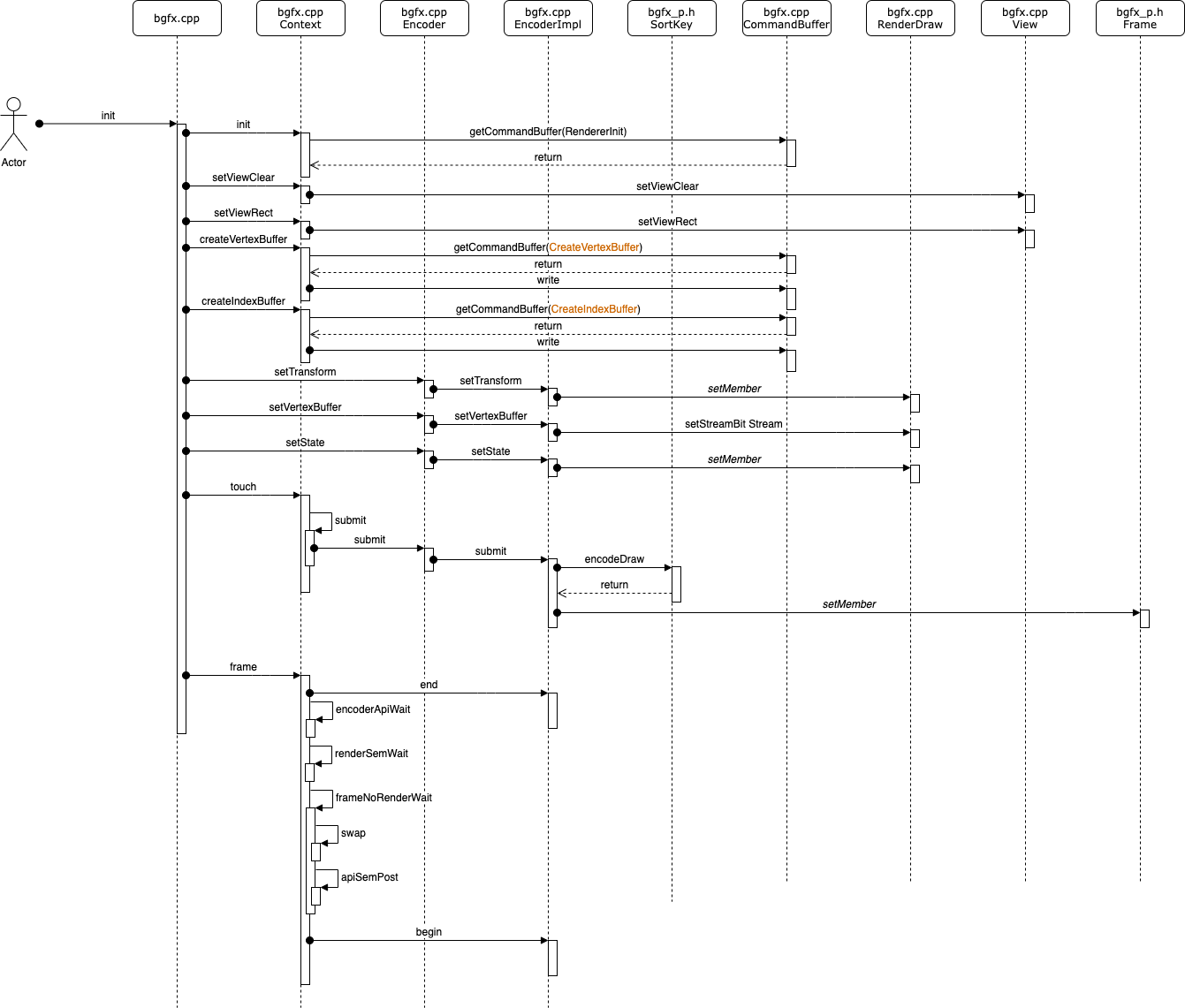

bgfx绘制流程图

具体可以分为以下步骤：

对比opengl中绘制三角形的流程，大部分是一致的，下面开始对每个步骤具体分析。

3.1 初始化渲染平台信息

调用bgfx::init初始化：

bgfx::Init init;
init.type     = args.m_type;
init.vendorId = args.m_pciId;
init.resolution.width  = m_width;
init.resolution.height = m_height;
init.resolution.reset  = m_reset;
bgfx::init(init);

Init是一个结构体，代码如下：

struct Init
{
    Init();
    RendererType::Enum type;
    uint16_t vendorId;
    uint16_t deviceId;
    bool debug;
    bool profile;
    PlatformData platformData;
    Resolution resolution;

    struct Limits
    {
        uint16_t maxEncoders;
        uint32_t transientVbSize;
        uint32_t transientIbSize;
    };

    Limits limits;
    CallbackI* callback;
    bx::AllocatorI* allocator;
};

struct RendererType
{
    /// Renderer types:
    enum Enum
    {
        Noop,         //!< No rendering.
        Direct3D9,    //!< Direct3D 9.0
        Direct3D11,   //!< Direct3D 11.0
        Direct3D12,   //!< Direct3D 12.0
        Gnm,          //!< GNM
        Metal,        //!< Metal
        Nvn,          //!< NVN
        OpenGLES,     //!< OpenGL ES 2.0+
        OpenGL,       //!< OpenGL 2.1+
        Vulkan,       //!< Vulkan
        Count
    };
};

struct PlatformData
{
    PlatformData();
    void* ndt;          //!< Native display type.
    void* nwh;          //!< Native window handle.
    void* context;      //!< GL context, or D3D device.
    void* backBuffer;   //!< GL backbuffer, or D3D render target view.
    void* backBufferDS; //!< Backbuffer depth/stencil.
};

3.2 初始化Context

调用Context的init方法初始化：

s_ctx = BX_ALIGNED_NEW(g_allocator, Context, 64);
if (s_ctx->init(_init) )
{
   BX_TRACE("Init complete.");
   return true;
}

CommandBuffer& cmdbuf = getCommandBuffer(CommandBuffer::RendererInit);
cmdbuf.write(_init);
frameNoRenderWait();

for (uint32_t ii = 0; ii < BX_COUNTOF(s_emulatedFormats); ++ii)
{
    const uint32_t fmt = s_emulatedFormats[ii];
    g_caps.formats[fmt] |= 0 == (g_caps.formats[fmt] & BGFX_CAPS_FORMAT_TEXTURE_2D  ) ? BGFX_CAPS_FORMAT_TEXTURE_2D_EMULATED   : 0;
    g_caps.formats[fmt] |= 0 == (g_caps.formats[fmt] & BGFX_CAPS_FORMAT_TEXTURE_3D  ) ? BGFX_CAPS_FORMAT_TEXTURE_3D_EMULATED   : 0;
    g_caps.formats[fmt] |= 0 == (g_caps.formats[fmt] & BGFX_CAPS_FORMAT_TEXTURE_CUBE) ? BGFX_CAPS_FORMAT_TEXTURE_CUBE_EMULATED : 0;
}

for (uint32_t ii = 0; ii < TextureFormat::UnknownDepth; ++ii)
{
    bool convertable = bimg::imageConvert(bimg::TextureFormat::BGRA8, bimg::TextureFormat::Enum(ii) );
    g_caps.formats[ii] |= 0 == (g_caps.formats[ii] & BGFX_CAPS_FORMAT_TEXTURE_2D  ) && convertable ? BGFX_CAPS_FORMAT_TEXTURE_2D_EMULATED   : 0;
    g_caps.formats[ii] |= 0 == (g_caps.formats[ii] & BGFX_CAPS_FORMAT_TEXTURE_3D  ) && convertable ? BGFX_CAPS_FORMAT_TEXTURE_3D_EMULATED   : 0;
    g_caps.formats[ii] |= 0 == (g_caps.formats[ii] & BGFX_CAPS_FORMAT_TEXTURE_CUBE) && convertable ? BGFX_CAPS_FORMAT_TEXTURE_CUBE_EMULATED : 0;
}

g_caps.rendererType = m_renderCtx->getRendererType();
initAttribTypeSizeTable(g_caps.rendererType);
g_caps.supported |= 0
    | (BX_ENABLED(BGFX_CONFIG_MULTITHREADED) && !m_singleThreaded ? BGFX_CAPS_RENDERER_MULTITHREADED : 0)
    | (isGraphicsDebuggerPresent() ? BGFX_CAPS_GRAPHICS_DEBUGGER : 0)
    ;
......
}

3.3 设置清屏色

这里是设置viewId=0的清屏色

bgfx::setViewClear(0
    , BGFX_CLEAR_COLOR|BGFX_CLEAR_DEPTH
    , 0x303030ff
    , 1.0f
    , 0
    );

bgfx中默认最大支持256个view，每个view清屏色，可以理解为每个view为一次完整的渲染指令，如画一个正方体。

BGFX_API_FUNC(void setViewClear(ViewId _id, uint16_t _flags, uint32_t _rgba, float _depth, uint8_t _stencil) )
{
   ......
   m_view[_id].setClear(_flags, _rgba, _depth, _stencil);
}

view可设置如下几项属性

Clear   m_clear;
Rect    m_rect;
Rect    m_scissor;
Matrix4 m_view;
Matrix4 m_proj;
FrameBufferHandle m_fbh;
uint8_t m_mode;

3.4 定义数据结构

layout的作用是定义了数据结构，用于解析传入的数据，顶点数据为3个float类型，颜色数据为4个1字节数据组成：

PosColorVertex::init();
struct PosColorVertex
{
    float m_x;
    float m_y;
    float m_z;
    uint32_t m_abgr;
    static void init()
    {
        ms_layout
            .begin()
            .add(bgfx::Attrib::Position, 3, bgfx::AttribType::Float)
            .add(bgfx::Attrib::Color0,   4, bgfx::AttribType::Uint8, true)
            .end();
    };
    static bgfx::VertexLayout ms_layout;
};

当然还可以定义纹理坐标等。

3.5 初始化顶点坐标，颜色

定义顶点和颜色数据，可以数据和上面的数据结构是对应的

static PosColorVertex s_cubeVertices[] =
{
    {-1.0f,  1.0f,  1.0f, 0xff000000 },
    { 1.0f,  1.0f,  1.0f, 0xff0000ff },
    {-1.0f, -1.0f,  1.0f, 0xff00ff00 },
    { 1.0f, -1.0f,  1.0f, 0xff00ffff },
    {-1.0f,  1.0f, -1.0f, 0xffff0000 },
    { 1.0f,  1.0f, -1.0f, 0xffff00ff },
    {-1.0f, -1.0f, -1.0f, 0xffffff00 },
    { 1.0f, -1.0f, -1.0f, 0xffffffff },
};

定义索引数据

static const uint16_t s_cubeTriList[] =
{
   0, 1, 2, // 0
   1, 3, 2,
   4, 6, 5, // 2
   5, 6, 7,
   0, 2, 4, // 4
   4, 2, 6,
   1, 5, 3, // 6
   5, 7, 3,
   0, 4, 1, // 8
   4, 5, 1,
   2, 3, 6, // 10
   6, 3, 7,
};

3.6 CommandBuffer

CommandBuffer用于保存渲染指令和数据，bgfx在渲染前把所有操作存入CommandBuffer中，在后端渲染引擎中取出指令并执行，分为渲染前指令和渲染后指令。

渲染前指令：包含创建shader、顶点数据、Texture等
渲染后指令：资源销毁、读取渲染数据等

enum Enum
{
    RendererInit,
    RendererShutdownBegin,
    CreateVertexLayout,
    CreateIndexBuffer,
    CreateVertexBuffer,
    CreateDynamicIndexBuffer,
    UpdateDynamicIndexBuffer,
    CreateDynamicVertexBuffer,
    UpdateDynamicVertexBuffer,
    CreateShader,
    CreateProgram,
    CreateTexture,
    UpdateTexture,
    ResizeTexture,
    CreateFrameBuffer,
    CreateUniform,
    UpdateViewName,
    InvalidateOcclusionQuery,
    SetName,
    End,
    RendererShutdownEnd,
    DestroyVertexLayout,
    DestroyIndexBuffer,
    DestroyVertexBuffer,
    DestroyDynamicIndexBuffer,
    DestroyDynamicVertexBuffer,
    DestroyShader,
    DestroyProgram,
    DestroyTexture,
    DestroyFrameBuffer,
    DestroyUniform,
    ReadTexture,
    RequestScreenShot,
};

3.7 Handle

Handle为通用struct格式，只保存了一个16位的id，代码如下：

#define BGFX_HANDLE(_name)                                                           \
   struct _name { uint16_t idx; };                                                  \
   inline bool isValid(_name _handle) { return bgfx::kInvalidHandle != _handle.idx; }

包括如下Handle：顶点、帧缓冲、着色器、纹理等

BGFX_HANDLE(DynamicIndexBufferHandle)
BGFX_HANDLE(DynamicVertexBufferHandle)
BGFX_HANDLE(FrameBufferHandle)
BGFX_HANDLE(IndexBufferHandle)
BGFX_HANDLE(IndirectBufferHandle)
BGFX_HANDLE(OcclusionQueryHandle)
BGFX_HANDLE(ProgramHandle)
BGFX_HANDLE(ShaderHandle)
BGFX_HANDLE(TextureHandle)
BGFX_HANDLE(UniformHandle)
BGFX_HANDLE(VertexBufferHandle)
BGFX_HANDLE(VertexLayoutHandle)

3.8 创建顶点Buffer和索引Buffer

m_vbh = bgfx::createVertexBuffer(
    // Static data can be passed with bgfx::makeRef
        bgfx::makeRef(s_cubeVertices, sizeof(s_cubeVertices) )
    , PosColorVertex::ms_layout
    );

// Create static index buffer for triangle list rendering.
m_ibh = bgfx::createIndexBuffer(
    // Static data can be passed with bgfx::makeRef
    bgfx::makeRef(s_cubeTriList, sizeof(s_cubeTriList) )
    );

createIndexBuffer和createVertexBuffer创建类似，先获取CommandBuffer，再写入数据，后续渲染再取出使用，相关代码如下：

BGFX_API_FUNC(IndexBufferHandle createIndexBuffer(const Memory* _mem, uint16_t _flags) )
{
    ......
    CommandBuffer& cmdbuf = getCommandBuffer(CommandBuffer::CreateIndexBuffer);
    cmdbuf.write(handle);
    cmdbuf.write(_mem);
    cmdbuf.write(_flags);
    ......
    return handle;
}



BGFX_API_FUNC(VertexBufferHandle createVertexBuffer(const Memory* _mem, const VertexLayout& _layout, uint16_t _flags) )
{
    ......
    CommandBuffer& cmdbuf = getCommandBuffer(CommandBuffer::CreateVertexBuffer);
    cmdbuf.write(handle);
    cmdbuf.write(_mem);
    cmdbuf.write(layoutHandle);
    cmdbuf.write(_flags);
    ......
    return handle;
}

以上只是在bgfx内部的传递方式，这个数据怎么上传到GPU渲染引擎，后续分析会讲到。

3.9 加载program和shader

m_program = loadProgram("vs_cubes", "fs_cubes");

其内部包含两个部分，一是加载shader，二是加载program，vs_cubes为顶点着色器，fs_cubes为片元着色器

加载shader代码如下，根据所用渲染引擎使用对应的shader，其代码如下：

static bgfx::ShaderHandle loadShader(bx::FileReaderI* _reader, const char* _name)
{
   char filePath[512];
   const char* shaderPath = "???";

   switch (bgfx::getRendererType() )
   {
   case bgfx::RendererType::Noop:
   case bgfx::RendererType::Direct3D9:  shaderPath = "shaders/dx9/";   break;
   case bgfx::RendererType::Direct3D11:
   case bgfx::RendererType::Direct3D12: shaderPath = "shaders/dx11/";  break;
   case bgfx::RendererType::Gnm:        shaderPath = "shaders/pssl/";  break;
   case bgfx::RendererType::Metal:      shaderPath = "shaders/metal/"; break;
   case bgfx::RendererType::Nvn:        shaderPath = "shaders/nvn/";   break;
   case bgfx::RendererType::OpenGL:     shaderPath = "shaders/glsl/";  break;
   case bgfx::RendererType::OpenGLES:   shaderPath = "shaders/essl/";  break;
   case bgfx::RendererType::Vulkan:     shaderPath = "shaders/spirv/"; break;
   case bgfx::RendererType::Count:
      BX_CHECK(false, "You should not be here!");
      break;
   }

   bx::strCopy(filePath, BX_COUNTOF(filePath), shaderPath);
   bx::strCat(filePath, BX_COUNTOF(filePath), _name);
   bx::strCat(filePath, BX_COUNTOF(filePath), ".bin");
   bgfx::ShaderHandle handle = bgfx::createShader(loadMem(_reader, filePath) );
   bgfx::setName(handle, _name);
   return handle;
}

加载完毕，生成CreateShader的CommandBuffer写入数据，以备后续使用。

CommandBuffer& cmdbuf = getCommandBuffer(CommandBuffer::CreateShader);
cmdbuf.write(handle);
cmdbuf.write(_mem);

加载program的代码如下：

bgfx::ProgramHandle loadProgram(bx::FileReaderI* _reader, const char* _vsName, const char* _fsName)
{
    bgfx::ShaderHandle vsh = loadShader(_reader, _vsName);
    bgfx::ShaderHandle fsh = BGFX_INVALID_HANDLE;
    if (NULL != _fsName)
    {
        fsh = loadShader(_reader, _fsName);
    }
    return bgfx::createProgram(vsh, fsh, true /* destroy shaders when program is destroyed */);
}

加载完毕，生成CreateProgram的CommandBuffer写入数据顶点着色器和片元着色器的handle，以备后续使用。

CommandBuffer& cmdbuf = getCommandBuffer(CommandBuffer::CreateProgram);
cmdbuf.write(handle);
cmdbuf.write(_vsh);
cmdbuf.write(_fsh);

3.10 view变换

设置view变换矩阵、projection变换矩阵，如果记不清这里的概念，可以参考坐标系统

const bx::Vec3 at  = { 0.0f, 0.0f,   0.0f };
const bx::Vec3 eye = { 0.0f, 0.0f, -25.0f };
// Set view and projection matrix for view 0.
{
    float view[16];
    bx::mtxLookAt(view, eye, at);
    float proj[16];
    bx::mtxProj(proj, 35.0f, float(m_width)/float(m_height), 0.1f, 100.0f, bgfx::getCaps()->homogeneousDepth);
    bgfx::setViewTransform(0, view, proj);
    // Set view 0 default viewport.
    bgfx::setViewRect(0, 0, 0, uint16_t(m_width), uint16_t(m_height) );
}

3.11 清空指令

id=0的view是默认使用的view，清空viewid=0的指令，保证提交前没有未执行的指令。

// This dummy draw call is here to make sure that view 0 is cleared
// if no other draw calls are submitted to view 0.
bgfx::touch(0);

3.12 设置model变换矩阵

通过bx库提供的方法设置model变换矩阵

float mtx[16];
bx::mtxRotateXY(mtx, time, time);
mtx[12] = 0.0f;
mtx[13] = 0.0f;
mtx[14] = 0.0f;
// Set model matrix for rendering.
bgfx::setTransform(mtx);

setTransform代码如下：

void setTransform(const void* _view, const void* _proj)
{
    if (NULL != _view)
    {
        bx::memCopy(m_view.un.val, _view, sizeof(Matrix4) );
    }
    else
    {
        m_view.setIdentity();
    }
    if (NULL != _proj)
    {
        bx::memCopy(m_proj.un.val, _proj, sizeof(Matrix4) );
    }
    else
    {
        m_proj.setIdentity();
    }
}

3.13 设置顶点数据和索引数据

bgfx::setVertexBuffer(0, m_vbh);
bgfx::setIndexBuffer(m_ibh);

其最终调用bgfx_p.h中的setVertexBuffer和setIndexBuffer，setVertexBuffer将数据写入Stream中，代码如下：

void setVertexBuffer(
        uint8_t _stream
    , VertexBufferHandle _handle
    , uint32_t _startVertex
    , uint32_t _numVertices
    , VertexLayoutHandle _layoutHandle
    )
{
    BX_CHECK(UINT8_MAX != m_draw.m_streamMask, "");
    BX_CHECK(_stream < BGFX_CONFIG_MAX_VERTEX_STREAMS, "Invalid stream %d (max %d).", _stream, BGFX_CONFIG_MAX_VERTEX_STREAMS);
    if (m_draw.setStreamBit(_stream, _handle) )
    {
        Stream& stream = m_draw.m_stream[_stream];
        stream.m_startVertex   = _startVertex;
        stream.m_handle        = _handle;
        stream.m_layoutHandle  = _layoutHandle;
        m_numVertices[_stream] = _numVertices;
    }
}

setIndexBuffer是将数据写入m_draw中，代码如下：

void setIndexBuffer(IndexBufferHandle _handle, uint32_t _firstIndex, uint32_t _numIndices)
{
    BX_CHECK(UINT8_MAX != m_draw.m_streamMask, "");
    m_draw.m_startIndex  = _firstIndex;
    m_draw.m_numIndices  = _numIndices;
    m_draw.m_indexBuffer = _handle;
}

3.14 设置渲染状态

uint64_t state = 0
    | BGFX_STATE_WRITE_R
    | BGFX_STATE_WRITE_G
    | BGFX_STATE_WRITE_B
    | BGFX_STATE_WRITE_A
    | BGFX_STATE_WRITE_Z
    | BGFX_STATE_DEPTH_TEST_LESS
    | BGFX_STATE_CULL_CW
    | BGFX_STATE_MSAA
    ;
// Set render states.
bgfx::setState(state);

渲染状态决定最后的上屏效果，如去掉BGFX_STATE_WRITE_R则最后上屏将不包含红色通道。

state的定义在defines.h中，其中也包含混合方式，如果实现类似水印叠加，需要设置混合模式。

#define BGFX_STATE_BLEND_ZERO               UINT64_C(0x0000000000001000) //!< 0, 0, 0, 0
#define BGFX_STATE_BLEND_ONE                UINT64_C(0x0000000000002000) //!< 1, 1, 1, 1
#define BGFX_STATE_BLEND_SRC_COLOR          UINT64_C(0x0000000000003000) //!< Rs, Gs, Bs, As
#define BGFX_STATE_BLEND_INV_SRC_COLOR      UINT64_C(0x0000000000004000) //!< 1-Rs, 1-Gs, 1-Bs, 1-As
#define BGFX_STATE_BLEND_SRC_ALPHA          UINT64_C(0x0000000000005000) //!< As, As, As, As
#define BGFX_STATE_BLEND_INV_SRC_ALPHA      UINT64_C(0x0000000000006000) //!< 1-As, 1-As, 1-As, 1-As
#define BGFX_STATE_BLEND_DST_ALPHA          UINT64_C(0x0000000000007000) //!< Ad, Ad, Ad, Ad
#define BGFX_STATE_BLEND_INV_DST_ALPHA      UINT64_C(0x0000000000008000) //!< 1-Ad, 1-Ad, 1-Ad ,1-Ad
#define BGFX_STATE_BLEND_DST_COLOR          UINT64_C(0x0000000000009000) //!< Rd, Gd, Bd, Ad
#define BGFX_STATE_BLEND_INV_DST_COLOR      UINT64_C(0x000000000000a000) //!< 1-Rd, 1-Gd, 1-Bd, 1-Ad
#define BGFX_STATE_BLEND_SRC_ALPHA_SAT      UINT64_C(0x000000000000b000) //!< f, f, f, 1; f = min(As, 1-Ad)
#define BGFX_STATE_BLEND_FACTOR             UINT64_C(0x000000000000c000) //!< Blend factor
#define BGFX_STATE_BLEND_INV_FACTOR         UINT64_C(0x000000000000d000) //!< 1-Blend factor
#define BGFX_STATE_BLEND_SHIFT              12                           //!< Blend state bit shift
#define BGFX_STATE_BLEND_MASK               UINT64_C(0x000000000ffff000) //!< Blend state bit mask

3.15 提交指令

设置完顶点数据、索引、变换等数据后就调用submit接口，提交一次drawcall

void Encoder::touch(ViewId _id)
{
    ProgramHandle handle = BGFX_INVALID_HANDLE;
    submit(_id, handle);
}

void Encoder::submit(ViewId _id, ProgramHandle _program, uint32_t _depth, bool _preserveState)
{
    OcclusionQueryHandle handle = BGFX_INVALID_HANDLE;
    submit(_id, _program, handle, _depth, _preserveState);
}

submit最终调用EncoderImpl的submit，代码如下：

void EncoderImpl::submit(ViewId _id, ProgramHandle _program, OcclusionQueryHandle _occlusionQuery, uint32_t _depth, bool _preserveState)
{
    if (BX_ENABLED(BGFX_CONFIG_DEBUG_UNIFORM)
    && !_preserveState)
    {
        m_uniformSet.clear();
    }

    if (BX_ENABLED(BGFX_CONFIG_DEBUG_OCCLUSION)
    &&  isValid(_occlusionQuery) )
    {
        BX_CHECK(m_occlusionQuerySet.end() == m_occlusionQuerySet.find(_occlusionQuery.idx)
            , "OcclusionQuery %d was already used for this frame."
            , _occlusionQuery.idx
            );
        m_occlusionQuerySet.insert(_occlusionQuery.idx);
    }

    if (m_discard)
    {
        discard();
        return;
    }

    if (0 == m_draw.m_numVertices
    &&  0 == m_draw.m_numIndices)
    {
        discard();
        ++m_numDropped;
        return;
    }

    const uint32_t renderItemIdx = bx::atomicFetchAndAddsat<uint32_t>(&m_frame->m_numRenderItems, 1, BGFX_CONFIG_MAX_DRAW_CALLS);

    if (BGFX_CONFIG_MAX_DRAW_CALLS-1 <= renderItemIdx)
    {
        discard();
        ++m_numDropped;
        return;
    }

    ++m_numSubmitted;
    UniformBuffer* uniformBuffer = m_frame->m_uniformBuffer[m_uniformIdx];
    m_uniformEnd = uniformBuffer->getPos();
    m_key.m_program = isValid(_program)
        ? _program
        : ProgramHandle{0}
        ;
    m_key.m_view = _id;
    SortKey::Enum type = SortKey::SortProgram;

    switch (s_ctx->m_view[_id].m_mode)
    {
    case ViewMode::Sequential:      m_key.m_seq   = s_ctx->getSeqIncr(_id); type = SortKey::SortSequence; break;
    case ViewMode::DepthAscending:  m_key.m_depth =            _depth;      type = SortKey::SortDepth;    break;
    case ViewMode::DepthDescending: m_key.m_depth = UINT32_MAX-_depth;      type = SortKey::SortDepth;    break;
    default: break;
    }

    uint64_t key = m_key.encodeDraw(type);
    m_frame->m_sortKeys[renderItemIdx]   = key;
    m_frame->m_sortValues[renderItemIdx] = RenderItemCount(renderItemIdx);
    m_draw.m_uniformIdx   = m_uniformIdx;
    m_draw.m_uniformBegin = m_uniformBegin;
    m_draw.m_uniformEnd   = m_uniformEnd;

    if (UINT8_MAX != m_draw.m_streamMask)
    {
        uint32_t numVertices = UINT32_MAX;
        for (uint32_t idx = 0, streamMask = m_draw.m_streamMask
            ; 0 != streamMask
            ; streamMask >>= 1, idx += 1
            )
        {
            const uint32_t ntz = bx::uint32_cnttz(streamMask);
            streamMask >>= ntz;
            idx         += ntz;
            numVertices = bx::min(numVertices, m_numVertices[idx]);
        }
        m_draw.m_numVertices = numVertices;
    }
    else
    {
        m_draw.m_numVertices = m_numVertices[0];
    }

    if (isValid(_occlusionQuery) )
    {
        m_draw.m_stateFlags |= BGFX_STATE_INTERNAL_OCCLUSION_QUERY;
        m_draw.m_occlusionQuery = _occlusionQuery;
    }

    m_frame->m_renderItem[renderItemIdx].draw = m_draw;
    m_frame->m_renderItemBind[renderItemIdx]  = m_bind;

    if (!_preserveState)
    {
        m_draw.clear();
        m_bind.clear();
        m_uniformBegin = m_uniformEnd;
    }
}

submit需要指定提交渲染的viewid和program：

SortKey结构体如下

struct SortKey
{
    enum Enum
    {
        SortProgram,
        SortDepth,
        SortSequence,
    };
    uint32_t      m_depth;
    uint32_t      m_seq;
    ProgramHandle m_program;
    ViewId        m_view;
    uint8_t       m_trans;
};

m_view：本次submit对应的viewid
m_program：本次submit对应的program

调用encodeDraw方法进行编码，代码如下：

uint64_t encodeDraw(Enum _type)
{
    switch (_type)
    {
    case SortProgram:
        {
            const uint64_t depth   = (uint64_t(m_depth      ) << kSortKeyDraw0DepthShift  ) & kSortKeyDraw0DepthMask;
            const uint64_t program = (uint64_t(m_program.idx) << kSortKeyDraw0ProgramShift) & kSortKeyDraw0ProgramMask;
            const uint64_t trans   = (uint64_t(m_trans      ) << kSortKeyDraw0TransShift  ) & kSortKeyDraw0TransMask;
            const uint64_t view    = (uint64_t(m_view       ) << kSortKeyViewBitShift     ) & kSortKeyViewMask;
            const uint64_t key     = view|kSortKeyDrawBit|kSortKeyDrawTypeProgram|trans|program|depth;
            return key;
        }
        break;
    case SortDepth:
        {
            const uint64_t depth   = (uint64_t(m_depth      ) << kSortKeyDraw1DepthShift  ) & kSortKeyDraw1DepthMask;
            const uint64_t program = (uint64_t(m_program.idx) << kSortKeyDraw1ProgramShift) & kSortKeyDraw1ProgramMask;
            const uint64_t trans   = (uint64_t(m_trans      ) << kSortKeyDraw1TransShift) & kSortKeyDraw1TransMask;
            const uint64_t view    = (uint64_t(m_view       ) << kSortKeyViewBitShift     ) & kSortKeyViewMask;
            const uint64_t key     = view|kSortKeyDrawBit|kSortKeyDrawTypeDepth|depth|trans|program;
            return key;
        }
        break;
    case SortSequence:
        {
            const uint64_t seq     = (uint64_t(m_seq        ) << kSortKeyDraw2SeqShift    ) & kSortKeyDraw2SeqMask;
            const uint64_t program = (uint64_t(m_program.idx) << kSortKeyDraw2ProgramShift) & kSortKeyDraw2ProgramMask;
            const uint64_t trans   = (uint64_t(m_trans      ) << kSortKeyDraw2TransShift  ) & kSortKeyDraw2TransMask;
            const uint64_t view    = (uint64_t(m_view       ) << kSortKeyViewBitShift     ) & kSortKeyViewMask;
            const uint64_t key     = view|kSortKeyDrawBit|kSortKeyDrawTypeSequence|seq|trans|program;
            BX_CHECK(seq == (uint64_t(m_seq) << kSortKeyDraw2SeqShift)
                , "SortKey error, sequence is truncated (m_seq: %d)."
                , m_seq
                );
            return key;
        }
        break;
    }
    BX_CHECK(false, "You should not be here.");
    return 0;
}

编码的作用是为了排序，有三种排序方式：

struct SortKey
{
    enum Enum
    {
        SortProgram,
        SortDepth,
        SortSequence,
    };
};

作者画了一个图，方便理解

// |               3               2               1               0|
    // |fedcba9876543210fedcba9876543210fedcba9876543210fedcba9876543210| Common
    // |vvvvvvvvd                                                       |
    // |       ^^                                                       |
    // |       ||                                                       |
    // |  view-+|                                                       |
    // |        +-draw                                                  |
    // |----------------------------------------------------------------| Draw Key 0 - Sort by program
    // |        |kkttpppppppppdddddddddddddddddddddddddddddddd          |
    // |        |   ^        ^                               ^          |
    // |        |   |        |                               |          |
    // |        |   +-trans  +-program                 depth-+          |
    // |        |                                                       |
    // |----------------------------------------------------------------| Draw Key 1 - Sort by depth
    // |        |kkddddddddddddddddddddddddddddddddttppppppppp          |
    // |        |                                ^^ ^        ^          |
    // |        |                                || +-trans  |          |
    // |        |                          depth-+   program-+          |
    // |        |                                                       |
    // |----------------------------------------------------------------| Draw Key 2 - Sequential
    // |        |kkssssssssssssssssssssttppppppppp                      |
    // |        |                     ^ ^        ^                      |
    // |        |                     | |        |                      |
    // |        |                 seq-+ +-trans  +-program              |
    // |        |                                                       |
    // |----------------------------------------------------------------| Compute Key
    // |        |ssssssssssssssssssssppppppppp                          |
    // |        |                   ^        ^                          |
    // |        |                   |        |                          |
    // |        |               seq-+        +-program                  |
    // |        |                                                       |
    // |--------+-------------------------------------------------------|
    //

最后将要渲染数据保存到Frame中：

m_frame->m_sortKeys[renderItemIdx]   = key;
m_frame->m_sortValues[renderItemIdx] = RenderItemCount(renderItemIdx);
……………
m_frame->m_renderItem[renderItemIdx].draw = m_draw;
m_frame->m_renderItemBind[renderItemIdx]  = m_bind;

3.16 通知渲染线程开始渲染

一切准备就绪后，调用frame()进行渲染

bgfx::frame();

继续看frame中代码：

uint32_t Context::frame(bool _capture)
{
    m_encoder[0].end(true);
#if BGFX_CONFIG_MULTITHREADED
    bx::MutexScope resourceApiScope(m_resourceApiLock);
    encoderApiWait();
    bx::MutexScope encoderApiScope(m_encoderApiLock);
#else
    encoderApiWait();
#endif // BGFX_CONFIG_MULTITHREADED
    m_submit->m_capture = _capture;
    BGFX_PROFILER_SCOPE("bgfx/API thread frame", 0xff2040ff);
    // wait for render thread to finish
    renderSemWait();
    frameNoRenderWait();
    m_encoder[0].begin(m_submit, 0);
    return m_frames;
}

renderSemWait：等待渲染执行完毕，代码如下

void renderSemWait()
{
    if (!m_singleThreaded)
    {
        BGFX_PROFILER_SCOPE("bgfx/Render thread wait", 0xff2040ff);
        int64_t start = bx::getHPCounter();
        bool ok = m_renderSem.wait();
        BX_CHECK(ok, "Semaphore wait failed."); BX_UNUSED(ok);
        m_submit->m_waitRender = bx::getHPCounter() - start;
        m_submit->m_perfStats.waitRender = m_submit->m_waitRender;
    }
}

frameNoRenderWait会做三个操作：

  1. 将m_submit交换给m_render，
  2. 置空m_submit，开始下帧
  3. 通知渲染线程执行

其代码如下：

void Context::frameNoRenderWait()
{
    swap();
    // release render thread
    apiSemPost();
}

swap主要作用是交换m_submit和m_render，其代码如下：

void Context::swap()
{
    freeDynamicBuffers();
    m_submit->m_resolution = m_init.resolution;
    m_init.resolution.reset &= ~BGFX_RESET_INTERNAL_FORCE;
    m_submit->m_debug = m_debug;
    m_submit->m_perfStats.numViews = 0;
    bx::memCopy(m_submit->m_viewRemap, m_viewRemap, sizeof(m_viewRemap) );
    bx::memCopy(m_submit->m_view, m_view, sizeof(m_view) );

    if (m_colorPaletteDirty > 0)
    {
        --m_colorPaletteDirty;
        bx::memCopy(m_submit->m_colorPalette, m_clearColor, sizeof(m_clearColor) );
    }

    freeAllHandles(m_submit);
    m_submit->resetFreeHandles();
    m_submit->finish();
    bx::swap(m_render, m_submit);
    bx::memCopy(m_render->m_occlusion, m_submit->m_occlusion, sizeof(m_submit->m_occlusion) );

    if (!BX_ENABLED(BGFX_CONFIG_MULTITHREADED)
    ||  m_singleThreaded)
    {
        renderFrame();
    }

    m_frames++;
    m_submit->start();
    bx::memSet(m_seq, 0, sizeof(m_seq) );
    m_submit->m_textVideoMem->resize(
            m_render->m_textVideoMem->m_small
        , m_init.resolution.width
        , m_init.resolution.height
        );
    int64_t now = bx::getHPCounter();
    m_submit->m_perfStats.cpuTimeFrame = now - m_frameTimeLast;
    m_frameTimeLast = now;
}

开启下一帧：

m_encoder[0].begin(m_submit, 0);

begin的作用是重置变量：

void begin(Frame* _frame, uint8_t _idx)
{
    m_frame = _frame;
    m_cpuTimeBegin = bx::getHPCounter();
    m_uniformIdx   = _idx;
    m_uniformBegin = 0;
    m_uniformEnd   = 0;
    UniformBuffer* uniformBuffer = m_frame->m_uniformBuffer[m_uniformIdx];
    uniformBuffer->reset();
    m_numSubmitted = 0;
    m_numDropped   = 0;
}

3.17 销毁资源

程序结束时，需要释放使用的VertexBufferHandle、IndexBufferHandle、ProgramHandle等资源，同时销毁bgfx相关资源

// Cleanup.
bgfx::destroy(m_ibh);
bgfx::destroy(m_vbh);
bgfx::destroy(m_program);
// Shutdown bgfx.
bgfx::shutdown();

3.18 效果

你将得到一个在各个平台可运行的立方体

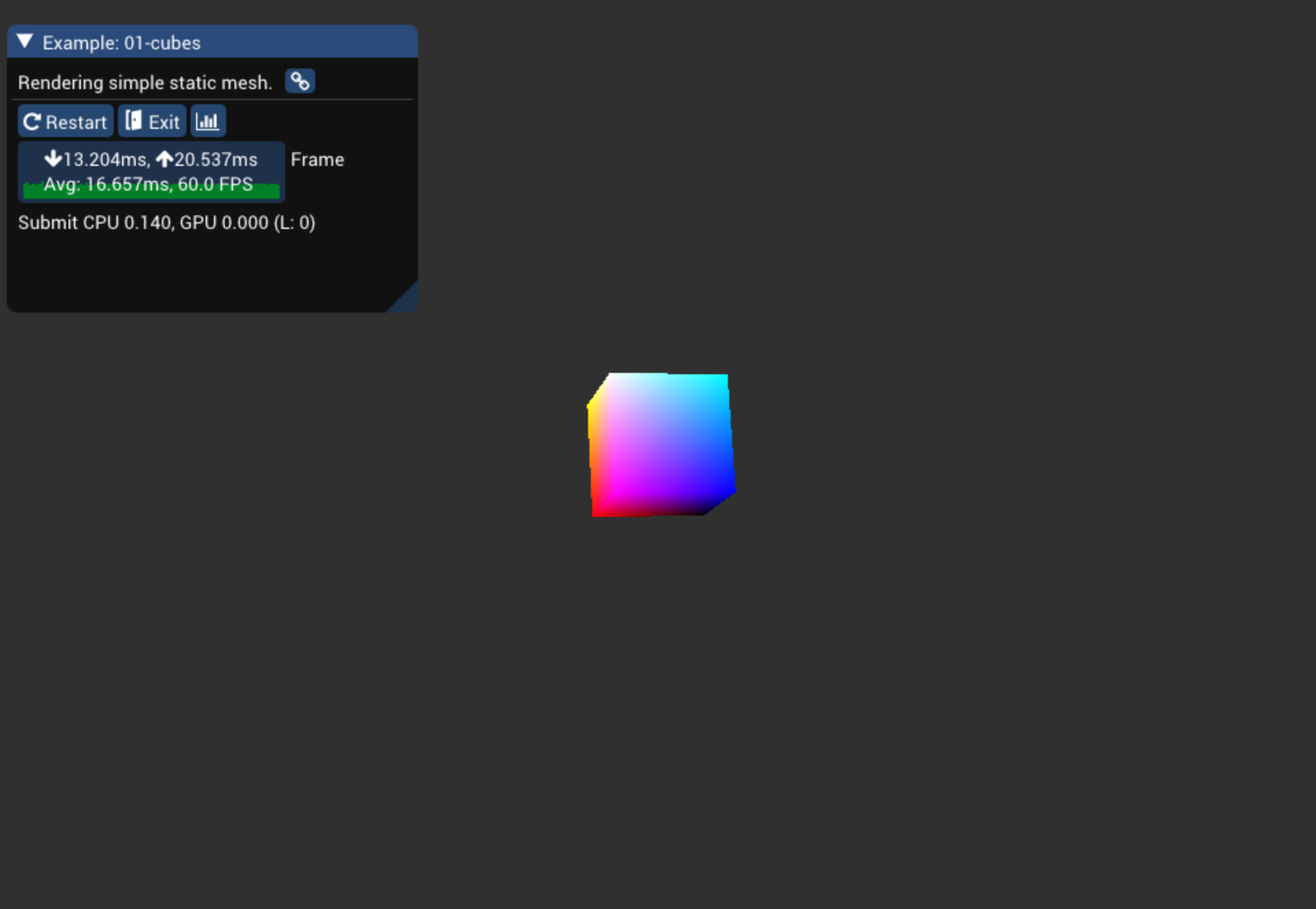

效果

四、渲染流程分析

4.1 渲染入口

渲染入口和程序入口类似，只不过是不同线程，当然也可以是同一个线程，渲染入口函数为bgfx::renderframe()

4.2 renderframe流程

renderframe流程如下：

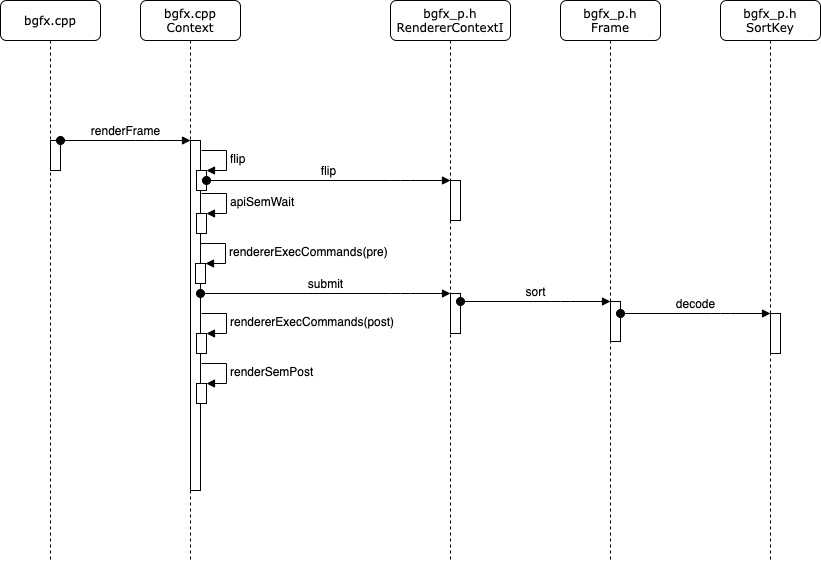

bgfx渲染流程图

先看下renderFrame中代码：

RenderFrame::Enum Context::renderFrame(int32_t _msecs)
{
    BGFX_PROFILER_SCOPE("bgfx::renderFrame", 0xff2040ff);
#if BX_PLATFORM_OSX || BX_PLATFORM_IOS
    NSAutoreleasePoolScope pool;
#endif // BX_PLATFORM_OSX
    if (!m_flipAfterRender)
    {
        BGFX_PROFILER_SCOPE("bgfx/flip", 0xff2040ff);
        flip();
    }
    if (apiSemWait(_msecs) )
    {
        {
            BGFX_PROFILER_SCOPE("bgfx/Exec commands pre", 0xff2040ff);
            rendererExecCommands(m_render->m_cmdPre);
        }
        if (m_rendererInitialized)
        {
            BGFX_PROFILER_SCOPE("bgfx/Render submit", 0xff2040ff);
            m_renderCtx->submit(m_render, m_clearQuad, m_textVideoMemBlitter);
            m_flipped = false;
        }
        {
            BGFX_PROFILER_SCOPE("bgfx/Exec commands post", 0xff2040ff);
            rendererExecCommands(m_render->m_cmdPost);
        }
        renderSemPost();
        if (m_flipAfterRender)
        {
            BGFX_PROFILER_SCOPE("bgfx/flip", 0xff2040ff);
            flip();
        }
    }
    else
    {
        return RenderFrame::Timeout;
    }
    return m_exit
        ? RenderFrame::Exiting
        : RenderFrame::Render
        ;
}

其流程如下：

4.3 flip

flip会调用m_renderCtx的flip方法的，flip代码如下：

void Context::flip()
{
    if (m_rendererInitialized
    && !m_flipped)
    {
        m_renderCtx->flip();
        m_flipped = true;
        if (m_renderCtx->isDeviceRemoved() )
        {
            // Something horribly went wrong, fallback to noop renderer.
            rendererDestroy(m_renderCtx);
            Init init;
            init.type = RendererType::Noop;
            m_renderCtx = rendererCreate(init);
            g_caps.rendererType = RendererType::Noop;
        }
    }
}

m_renderCtx为平台相关渲染引擎的context，拿熟悉的opengl举例，代码在renderer_gl.cpp中，RendererContextGL的类图如图所示：
后端引擎类图

RendererContextGL的flip代码如下：

void flip() override
{
    if (m_flip)
    {
        for (uint32_t ii = 1, num = m_numWindows; ii < num; ++ii)
        {
            FrameBufferGL& frameBuffer = m_frameBuffers[m_windows[ii].idx];
            if (frameBuffer.m_needPresent)
            {
                m_glctx.swap(frameBuffer.m_swapChain);
                frameBuffer.m_needPresent = false;
            }
        }
        if (m_needPresent)
        {
            // Ensure the back buffer is bound as the source of the flip
            GL_CHECK(glBindFramebuffer(GL_FRAMEBUFFER, m_backBufferFbo));
            m_glctx.swap();
            m_needPresent = false;
        }
    }
}

其最终会调用到m_glctx的swap方法，如果window有自己的swapchain，调用swapchain的swapBuffers方法，否则使用默认的eglSwapBuffers，swap代码如下：

void GlContext::swap(SwapChainGL* _swapChain)
{
    makeCurrent(_swapChain);
    if (NULL == _swapChain)
    {
        if (NULL != m_display)
        {
            eglSwapBuffers(m_display, m_surface);
        }
    }
    else
    {
        _swapChain->swapBuffers();
    }
}

执行完之后，即完成上屏。

4.4 rendererExecCommands

在提交渲染引擎之前，需要取出m_cmdPre中的CommandBuffer指令执行；

在提交渲染引擎之后，需要取出m_cmdPost中的CommandBuffer指令执行；

参考3.6 CommandBuffer

rendererExecCommands(m_render->m_cmdPre);
rendererExecCommands(m_render->m_cmdPost);
4.4.1 RendererInit

第一个command是RendererInit，调用RendererContextI的rendererCreate方法，初始化渲染引擎，代码如下：

RendererContextI* rendererCreate(const Init& _init)
{
    int32_t scores[RendererType::Count];
    uint32_t numScores = 0;

    for (uint32_t ii = 0; ii < RendererType::Count; ++ii)
    {
        RendererType::Enum renderer = RendererType::Enum(ii);
        if (s_rendererCreator[ii].supported)
        {
            int32_t score = 0;
            if (_init.type == renderer)
            {
                score += 1000;
            }

            score += RendererType::Noop != renderer ? 1 : 0;

            if (BX_ENABLED(BX_PLATFORM_WINDOWS) )
            {
                if (windowsVersionIs(Condition::GreaterEqual, 0x0602) )
                {
                    score += RendererType::Direct3D11 == renderer ? 20 : 0;
                    score += RendererType::Direct3D12 == renderer ? 10 : 0;
                }
                else if (windowsVersionIs(Condition::GreaterEqual, 0x0601) )
                {
                    score += RendererType::Direct3D11 == renderer ?   20 : 0;
                    score += RendererType::Direct3D9  == renderer ?   10 : 0;
                    score += RendererType::Direct3D12 == renderer ? -100 : 0;
                }
                else
                {
                    score += RendererType::Direct3D12 == renderer ? -100 : 0;
                }
            }
            else if (BX_ENABLED(BX_PLATFORM_LINUX) )
            {
                score += RendererType::OpenGL   == renderer ? 20 : 0;
                score += RendererType::OpenGLES == renderer ? 10 : 0;
            }
            else if (BX_ENABLED(BX_PLATFORM_OSX) )
            {
                score += RendererType::Metal    == renderer ? 20 : 0;
                score += RendererType::OpenGL   == renderer ? 10 : 0;
            }
            else if (BX_ENABLED(BX_PLATFORM_IOS) )
            {
                score += RendererType::Metal    == renderer ? 20 : 0;
                score += RendererType::OpenGLES == renderer ? 10 : 0;
            }
            else if (BX_ENABLED(0
                    ||  BX_PLATFORM_ANDROID
                    ||  BX_PLATFORM_EMSCRIPTEN
                    ||  BX_PLATFORM_RPI
                    ) )
            {
                score += RendererType::OpenGLES == renderer ? 20 : 0;
            }
            else if (BX_ENABLED(BX_PLATFORM_PS4) )
            {
                score += RendererType::Gnm      == renderer ? 20 : 0;
            }
            else if (BX_ENABLED(0
                    ||  BX_PLATFORM_XBOXONE
                    ||  BX_PLATFORM_WINRT
                    ) )
            {
                score += RendererType::Direct3D12 == renderer ? 20 : 0;
                score += RendererType::Direct3D11 == renderer ? 10 : 0;
            }

            scores[numScores++] = (score<<8) | uint8_t(renderer);
        }
    }

    bx::quickSort(scores, numScores, sizeof(int32_t), compareDescending);
    RendererContextI* renderCtx = NULL;

    for (uint32_t ii = 0; ii < numScores; ++ii)
    {
        RendererType::Enum renderer = RendererType::Enum(scores[ii] & 0xff);
        renderCtx = s_rendererCreator[renderer].createFn(_init);
        if (NULL != renderCtx)
        {
            break;
        }
        s_rendererCreator[renderer].supported = false;
    }

    return renderCtx;
}

bgfx会根据设置的渲染引擎和平台进行打分，最后确认选用的渲染引擎进行初始化。

初始化时，RendererContextGL的rendererCreate方法会被调用，代码如下：

RendererContextI* rendererCreate(const Init& _init)
{
    s_renderGL = BX_NEW(g_allocator, RendererContextGL);
    if (!s_renderGL->init(_init) )
    {
        BX_DELETE(g_allocator, s_renderGL);
        s_renderGL = NULL;
    }
    return s_renderGL;
}

rendererCreate调用init方法，代码如下：

struct RendererContextGL : public RendererContextI
{
    RendererContextGL()
        : m_numWindows(1)
        , m_rtMsaa(false)
        , m_fbDiscard(BGFX_CLEAR_NONE)
        , m_capture(NULL)
        , m_captureSize(0)
        , m_maxAnisotropy(0.0f)
        , m_maxAnisotropyDefault(0.0f)
        , m_maxMsaa(0)
        , m_vao(0)
        , m_blitSupported(false)
        , m_readBackSupported(BX_ENABLED(BGFX_CONFIG_RENDERER_OPENGL) )
        , m_vaoSupport(false)
        , m_samplerObjectSupport(false)
        , m_shadowSamplersSupport(false)
        , m_srgbWriteControlSupport(BX_ENABLED(BGFX_CONFIG_RENDERER_OPENGL) )
        , m_borderColorSupport(BX_ENABLED(BGFX_CONFIG_RENDERER_OPENGL) )
        , m_programBinarySupport(false)
        , m_textureSwizzleSupport(false)
        , m_depthTextureSupport(false)
        , m_timerQuerySupport(false)
        , m_occlusionQuerySupport(false)
        , m_atocSupport(false)
        , m_conservativeRasterSupport(false)
        , m_flip(false)
        , m_hash( (BX_PLATFORM_WINDOWS<<1) | BX_ARCH_64BIT)
        , m_backBufferFbo(0)
        , m_msaaBackBufferFbo(0)
        , m_clearQuadColor(BGFX_INVALID_HANDLE)
        , m_clearQuadDepth(BGFX_INVALID_HANDLE)
    {
        bx::memSet(m_msaaBackBufferRbos, 0, sizeof(m_msaaBackBufferRbos) );
    }
    ~RendererContextGL()
    {
    }
    bool init(const Init& _init)
    {
    ......
        setRenderContextSize(_init.resolution.width, _init.resolution.height);
    ......
    }
    ......
}

setRenderContextSize会调用m_glctx.create(_width, _height);方法创建窗口

主要包含以下步骤：

m_display = eglGetDisplay(ndt);

m_surface = eglCreateWindowSurface(m_display, m_config, nwh, NULL);

具体代码如下：

void GlContext::create(uint32_t _width, uint32_t _height)
{
#    if BX_PLATFORM_RPI
    bcm_host_init();
#    endif // BX_PLATFORM_RPI
    m_eglLibrary = eglOpen();
    if (NULL == g_platformData.context)
    {
#    if BX_PLATFORM_RPI
        g_platformData.ndt = EGL_DEFAULT_DISPLAY;
#    endif // BX_PLATFORM_RPI
        BX_UNUSED(_width, _height);
        EGLNativeDisplayType ndt = (EGLNativeDisplayType)g_platformData.ndt;
        EGLNativeWindowType  nwh = (EGLNativeWindowType )g_platformData.nwh;
#    if BX_PLATFORM_WINDOWS
        if (NULL == g_platformData.ndt)
        {
            ndt = GetDC( (HWND)g_platformData.nwh);
        }
#    endif // BX_PLATFORM_WINDOWS
        m_display = eglGetDisplay(ndt);
        BGFX_FATAL(m_display != EGL_NO_DISPLAY, Fatal::UnableToInitialize, "Failed to create display %p", m_display);
        EGLint major = 0;
        EGLint minor = 0;

        EGLBoolean success = eglInitialize(m_display, &major, &minor);
        BGFX_FATAL(success && major >= 1 && minor >= 3, Fatal::UnableToInitialize, "Failed to initialize %d.%d", major, minor);
        BX_TRACE("EGL info:");
        const char* clientApis = eglQueryString(m_display, EGL_CLIENT_APIS);
        BX_TRACE("   APIs: %s", clientApis); BX_UNUSED(clientApis);
        const char* vendor = eglQueryString(m_display, EGL_VENDOR);
        BX_TRACE(" Vendor: %s", vendor); BX_UNUSED(vendor);
        const char* version = eglQueryString(m_display, EGL_VERSION);
        BX_TRACE("Version: %s", version); BX_UNUSED(version);
        const char* extensions = eglQueryString(m_display, EGL_EXTENSIONS);
        BX_TRACE("Supported EGL extensions:");
        dumpExtensions(extensions);
        // https://www.khronos.org/registry/EGL/extensions/ANDROID/EGL_ANDROID_recordable.txt
        const bool hasEglAndroidRecordable = !bx::findIdentifierMatch(extensions, "EGL_ANDROID_recordable").isEmpty();

        EGLint attrs[] =
        {
            EGL_RENDERABLE_TYPE, EGL_OPENGL_ES2_BIT,
#    if BX_PLATFORM_ANDROID
            EGL_DEPTH_SIZE, 16,
#    else
            EGL_DEPTH_SIZE, 24,
#    endif // BX_PLATFORM_
            EGL_STENCIL_SIZE, 8,
            // Android Recordable surface
            hasEglAndroidRecordable ? 0x3142 : EGL_NONE,
            hasEglAndroidRecordable ? 1      : EGL_NONE,
            EGL_NONE
        };

        EGLint numConfig = 0;
        success = eglChooseConfig(m_display, attrs, &m_config, 1, &numConfig);
        BGFX_FATAL(success, Fatal::UnableToInitialize, "eglChooseConfig");
#    if BX_PLATFORM_ANDROID
        EGLint format;
        eglGetConfigAttrib(m_display, m_config, EGL_NATIVE_VISUAL_ID, &format);
        ANativeWindow_setBuffersGeometry( (ANativeWindow*)g_platformData.nwh, _width, _height, format);
#    elif BX_PLATFORM_RPI
        DISPMANX_DISPLAY_HANDLE_T dispmanDisplay = vc_dispmanx_display_open(0);
        DISPMANX_UPDATE_HANDLE_T  dispmanUpdate  = vc_dispmanx_update_start(0);
        VC_RECT_T dstRect = { 0, 0, int32_t(_width),        int32_t(_height)       };
        VC_RECT_T srcRect = { 0, 0, int32_t(_width)  << 16, int32_t(_height) << 16 };

        DISPMANX_ELEMENT_HANDLE_T dispmanElement = vc_dispmanx_element_add(dispmanUpdate
            , dispmanDisplay
            , 0
            , &dstRect
            , 0
            , &srcRect
            , DISPMANX_PROTECTION_NONE
            , NULL
            , NULL
            , DISPMANX_NO_ROTATE
            );

        s_dispmanWindow.element = dispmanElement;
        s_dispmanWindow.width   = _width;
        s_dispmanWindow.height  = _height;
        nwh = &s_dispmanWindow;
        vc_dispmanx_update_submit_sync(dispmanUpdate);
#    endif // BX_PLATFORM_ANDROID
        m_surface = eglCreateWindowSurface(m_display, m_config, nwh, NULL);
        BGFX_FATAL(m_surface != EGL_NO_SURFACE, Fatal::UnableToInitialize, "Failed to create surface.");
        ......
}

其他渲染引擎接口一致。

4.4.2 CreateVertexLayout
void createVertexLayout(VertexLayoutHandle _handle, const VertexLayout& _layout) override
{
    VertexLayout& layout = m_vertexLayouts[_handle.idx];
    bx::memCopy(&layout, &_layout, sizeof(VertexLayout) );
    dump(layout);
}
4.4.3 CreateVertexBuffer
void createVertexBuffer(VertexBufferHandle _handle, const Memory* _mem, VertexLayoutHandle _layoutHandle, uint16_t _flags) override
{
    m_vertexBuffers[_handle.idx].create(_mem->size, _mem->data, _layoutHandle, _flags);
}

VertexBufferGL的create方法如下：

void create(uint32_t _size, void* _data, VertexLayoutHandle _layoutHandle, uint16_t _flags)
{
    m_size = _size;
    m_layoutHandle = _layoutHandle;
    const bool drawIndirect = 0 != (_flags & BGFX_BUFFER_DRAW_INDIRECT);
    m_target = drawIndirect ? GL_DRAW_INDIRECT_BUFFER : GL_ARRAY_BUFFER;
    GL_CHECK(glGenBuffers(1, &m_id) );
    BX_CHECK(0 != m_id, "Failed to generate buffer id.");
    GL_CHECK(glBindBuffer(m_target, m_id) );
    GL_CHECK(glBufferData(m_target
        , _size
        , _data
        , (NULL==_data) ? GL_DYNAMIC_DRAW : GL_STATIC_DRAW
        ) );
    GL_CHECK(glBindBuffer(m_target, 0) );
}

其流程如下：

4.4.4 CreateIndexBuffer
void createIndexBuffer(IndexBufferHandle _handle, const Memory* _mem, uint16_t _flags) override
{
    m_indexBuffers[_handle.idx].create(_mem->size, _mem->data, _flags);
}

IndexBufferGL的create方法如下：

void create(uint32_t _size, void* _data, uint16_t _flags)
{
    m_size  = _size;
    m_flags = _flags;
    GL_CHECK(glGenBuffers(1, &m_id) );
    BX_CHECK(0 != m_id, "Failed to generate buffer id.");
    GL_CHECK(glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_id) );
    GL_CHECK(glBufferData(GL_ELEMENT_ARRAY_BUFFER
        , _size
        , _data
        , (NULL==_data) ? GL_DYNAMIC_DRAW : GL_STATIC_DRAW
        ) );
    GL_CHECK(glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, 0) );
}

看到熟悉的opengl代码，这里逻辑很简单：创建EBO，写入数据

其流程如下：

4.4.5 CreateProgram
void createProgram(ProgramHandle _handle, ShaderHandle _vsh, ShaderHandle _fsh) override
{
    ShaderGL dummyFragmentShader;
    m_program[_handle.idx].create(m_shaders[_vsh.idx], isValid(_fsh) ? m_shaders[_fsh.idx] : dummyFragmentShader);
}

ProgramGL的create方法如下：

void ProgramGL::create(const ShaderGL& _vsh, const ShaderGL& _fsh)
{
    m_id = glCreateProgram();
    BX_TRACE("Program create: GL%d: GL%d, GL%d", m_id, _vsh.m_id, _fsh.m_id);
    const uint64_t id = (uint64_t(_vsh.m_hash)<<32) | _fsh.m_hash;
    const bool cached = s_renderGL->programFetchFromCache(m_id, id);
    if (!cached)
    {
        GLint linked = 0;
        if (0 != _vsh.m_id)
        {
            GL_CHECK(glAttachShader(m_id, _vsh.m_id) );
            if (0 != _fsh.m_id)
            {
                GL_CHECK(glAttachShader(m_id, _fsh.m_id) );
            }
            GL_CHECK(glLinkProgram(m_id) );
            GL_CHECK(glGetProgramiv(m_id, GL_LINK_STATUS, &linked) );
            if (0 == linked)
            {
                char log[1024];
                GL_CHECK(glGetProgramInfoLog(m_id, sizeof(log), NULL, log) );
                BX_TRACE("%d: %s", linked, log);
            }
        }
        if (0 == linked)
        {
            BX_WARN(0 != _vsh.m_id, "Invalid vertex/compute shader.");
            GL_CHECK(glDeleteProgram(m_id) );
            m_usedCount = 0;
            m_id = 0;
            return;
        }
        s_renderGL->programCache(m_id, id);
    }

    init();
    if (!cached
    &&  s_renderGL->m_workaround.m_detachShader)
    {
        // Must be after init, otherwise init might fail to lookup shader
        // info (NVIDIA Tegra 3 OpenGL ES 2.0 14.01003).
        GL_CHECK(glDetachShader(m_id, _vsh.m_id) );
        if (0 != _fsh.m_id)
        {
            GL_CHECK(glDetachShader(m_id, _fsh.m_id) );
        }
    }
}

其流程如下：

4.4.6 CreateShader
void createShader(ShaderHandle _handle, const Memory* _mem) override
{
    m_shaders[_handle.idx].create(_mem);
}

最终是调用glCreateShader创建shader

void ShaderGL::create(const Memory* _mem)
{
......
m_id = glCreateShader(m_type);
......
}
4.4.7 CreateUniform

将数据保存在m_uniforms和m_uniformReg中：

void createUniform(UniformHandle _handle, UniformType::Enum _type, uint16_t _num, const char* _name) override
{
    if (NULL != m_uniforms[_handle.idx])
    {
        BX_FREE(g_allocator, m_uniforms[_handle.idx]);
    }

    uint32_t size = g_uniformTypeSize[_type]*_num;
    void* data = BX_ALLOC(g_allocator, size);
    bx::memSet(data, 0, size);
    m_uniforms[_handle.idx] = data;
    m_uniformReg.add(_handle, _name);
}

4.5 submit

命令执行完之后，开始执行m_renderCtx->submit中的代码：

if (m_occlusionQuerySupport)
{
   m_occlusionQuery.resolve(_render);
}

_render->sort();

sort的代码如下：

void Frame::sort()
{
    BGFX_PROFILER_SCOPE("bgfx/Sort", 0xff2040ff);
    ViewId viewRemap[BGFX_CONFIG_MAX_VIEWS];
    for (uint32_t ii = 0; ii < BGFX_CONFIG_MAX_VIEWS; ++ii)
    {
        viewRemap[m_viewRemap[ii] ] = ViewId(ii);
    }
    for (uint32_t ii = 0, num = m_numRenderItems; ii < num; ++ii)
    {
        m_sortKeys[ii] = SortKey::remapView(m_sortKeys[ii], viewRemap);
    }
    bx::radixSort(m_sortKeys, s_ctx->m_tempKeys, m_sortValues, s_ctx->m_tempValues, m_numRenderItems);
    for (uint32_t ii = 0, num = m_numBlitItems; ii < num; ++ii)
    {
        m_blitKeys[ii] = BlitKey::remapView(m_blitKeys[ii], viewRemap);
    }
    bx::radixSort(m_blitKeys, (uint32_t*)&s_ctx->m_tempKeys, m_numBlitItems);
}

根据vieworder调整sortkey顺序，根据sortkey的值大小，使用基数排序，从小到大排序

viewState.m_rect = _render->m_view[0].m_rect;
int32_t numItems = _render->m_numRenderItems;
for (int32_t item = 0; item < numItems;)
{
    const uint64_t encodedKey = _render->m_sortKeys[item];
    const bool isCompute = key.decode(encodedKey, _render->m_viewRemap);
    statsKeyType[isCompute]++;
    const bool viewChanged = 0
        || key.m_view != view
        || item == numItems
        ;
    const uint32_t itemIdx       = _render->m_sortValues[item];
    const RenderItem& renderItem = _render->m_renderItem[itemIdx];
    const RenderBind& renderBind = _render->m_renderItemBind[itemIdx];
......
}

遍历取出sortkey，执行decode读取key中的数据，属于encode的逆向操作，然后读取RenderItem中的RenderDraw进行渲染

if (key.m_program.idx != currentProgram.idx)
{
   currentProgram = key.m_program;
   GLuint id = isValid(currentProgram) ? m_program[currentProgram.idx].m_id : 0;
   // Skip rendering if program index is valid, but program is invalid.
   currentProgram = 0 == id ? ProgramHandle{kInvalidHandle} : currentProgram;
   GL_CHECK(glUseProgram(id) );
   programChanged =
      constantsChanged =
      bindAttribs = true;
}

经过一些列的VBO、EBO、Texture、Framebuffer等的设置，最终调用glDraw***函数执行渲染。

4.6 renderSemPost

渲染渲染完成后调用renderSemPost()，通知frame()执行，开始渲染下一帧。

void renderSemPost()
{
    if (!m_singleThreaded)
    {
        m_renderSem.post();
    }
}

五、Shader

5.1 编写

支持三中shader，用文件开头首字母做区分：

需要注意的是，这里会多一个varying.def.sc文件，用于表示顶点着色器的输入和输出，示例代码如下：

vec2 v_texcoord0 : TEXCOORD0 = vec2(0.0, 0.0);
vec3 a_position  : POSITION;
vec2 a_texcoord0 : TEXCOORD0;

在顶点着色器中需要标识输入和输出：

$input a_position, a_texcoord0
$output v_texcoord0
#include "../common/common.sh"
void main()
{
    gl_Position = vec4(a_position, 1.0);
    v_texcoord0 = a_texcoord0;
}

在片元着色器中需要标识输入：

$input v_texcoord0
#include "../common/common.sh"
SAMPLER2D(s_texColor, 0);
void main()
{
    gl_FragColor = texture2D(s_texColor, v_texcoord0);
}

5.2 编译

bgfx提供了shaderc编译工具用于编译shader，支持编译opengl、opengles、metal、vulkan、DX9、DX11、DX12平台的顶点和片元shader

以下是两个平台编译示例

./shaderc -f ***.sc -i third_party/bgfx_group/bgfx/src -o ***.bin --platform osx --type vertex
./shaderc -f ***.sc -i third_party/bgfx_group/bgfx/src -o ***.bin --platform osx --type fragment

shaderc.exe -f ***.sc -i third_party/bgfx_group/bgfx/src -o ***..bin --type v -p vs_5_0 --platform windows
shaderc.exe -f ***..sc -i third_party/bgfx_group/bgfx/src -o ***..bin --type f -p ps_5_0 --platform windows

六、调试和分析

bgfx列举了一些调试和分析工具：

Name OS DX9 DX11 DX12 Metal GL GLES Vulkan Source
APITrace Linux/OSX/Win ✓ ✓ ✓ ✓ ✓
CodeXL Linux/Win ✓
Dissector Win ✓ ✓
IntelGPA Linux/OSX/Win ✓ ✓ ✓
Nsight Win ✓ ✓ ✓
PerfHUD Win ✓ ✓
PerfStudio Win ✓ ✓ ✓ ✓
PIX Win ✓
RGP Win ✓ ✓
RenderDoc Win/Linux ✓ ✓ ✓ ✓
vogl Linux ✓ ✓

对于手机端：Android推荐用gapid进行调试，iOS用系统工具即可。

七、注意事项

只有以下格式，无常用的float格式

struct UniformType
{
    /// Uniform types:
    enum Enum
    {
        Sampler, //!< Sampler.
        End,     //!< Reserved, do not use.
        Vec4,    //!< 4 floats vector.
        Mat3,    //!< 3x3 matrix.
        Mat4,    //!< 4x4 matrix.
        Count
    };
};

平台相关，需要注意opengl和其他渲染引擎的不同。

bgfx示例中默认开启垂直同步BGFX_RESET_VSYNC，测试性能需要关闭。另外，各个平台对swap会有不同限制，如iOS限制不能少于16.66ms。

八、结语

bgfx可以作为游戏引擎，也可以作为底层跨平台渲染库使用。本文分析的bgfx涉及到源码部分不到20%，在实践中各个渲染引擎的差异也导致了各种问题，都需要分析、修改源码解决，希望可以多多交流。
